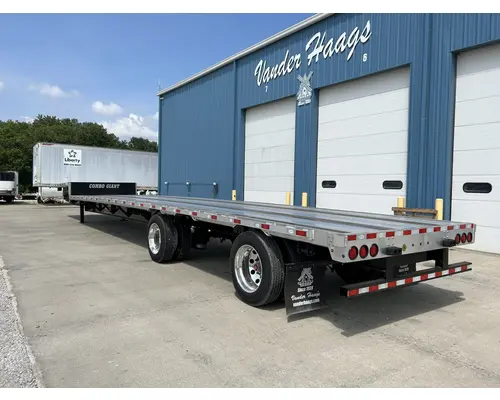

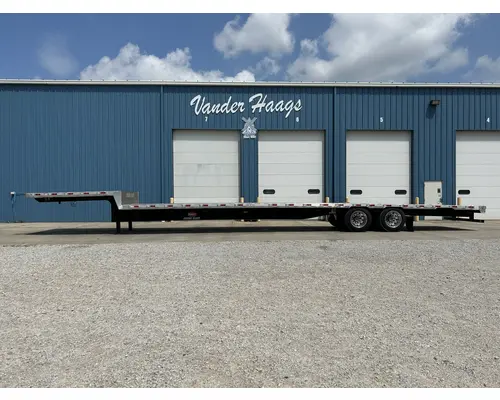

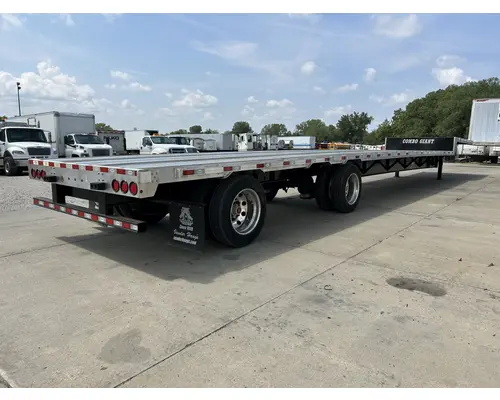

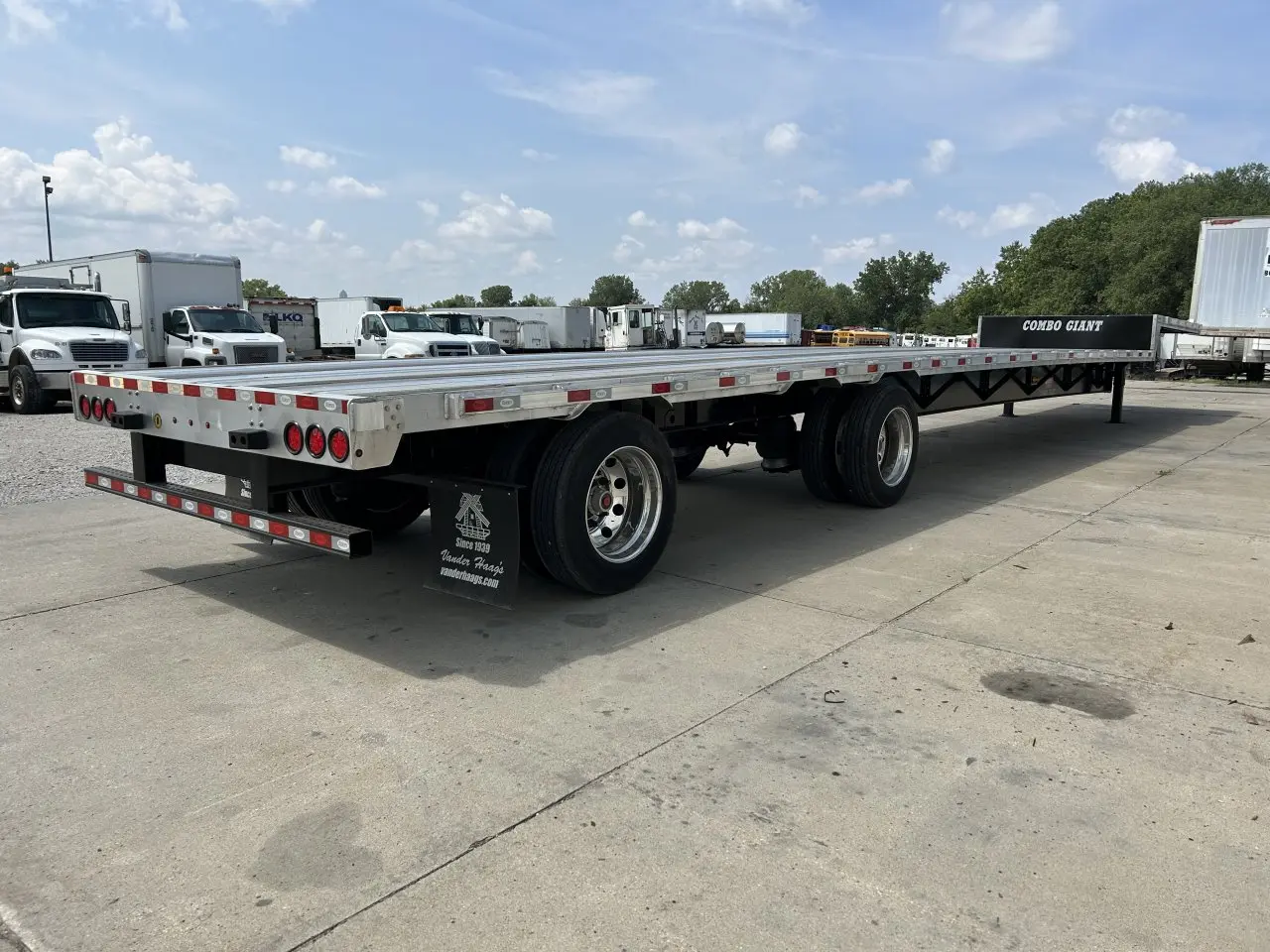

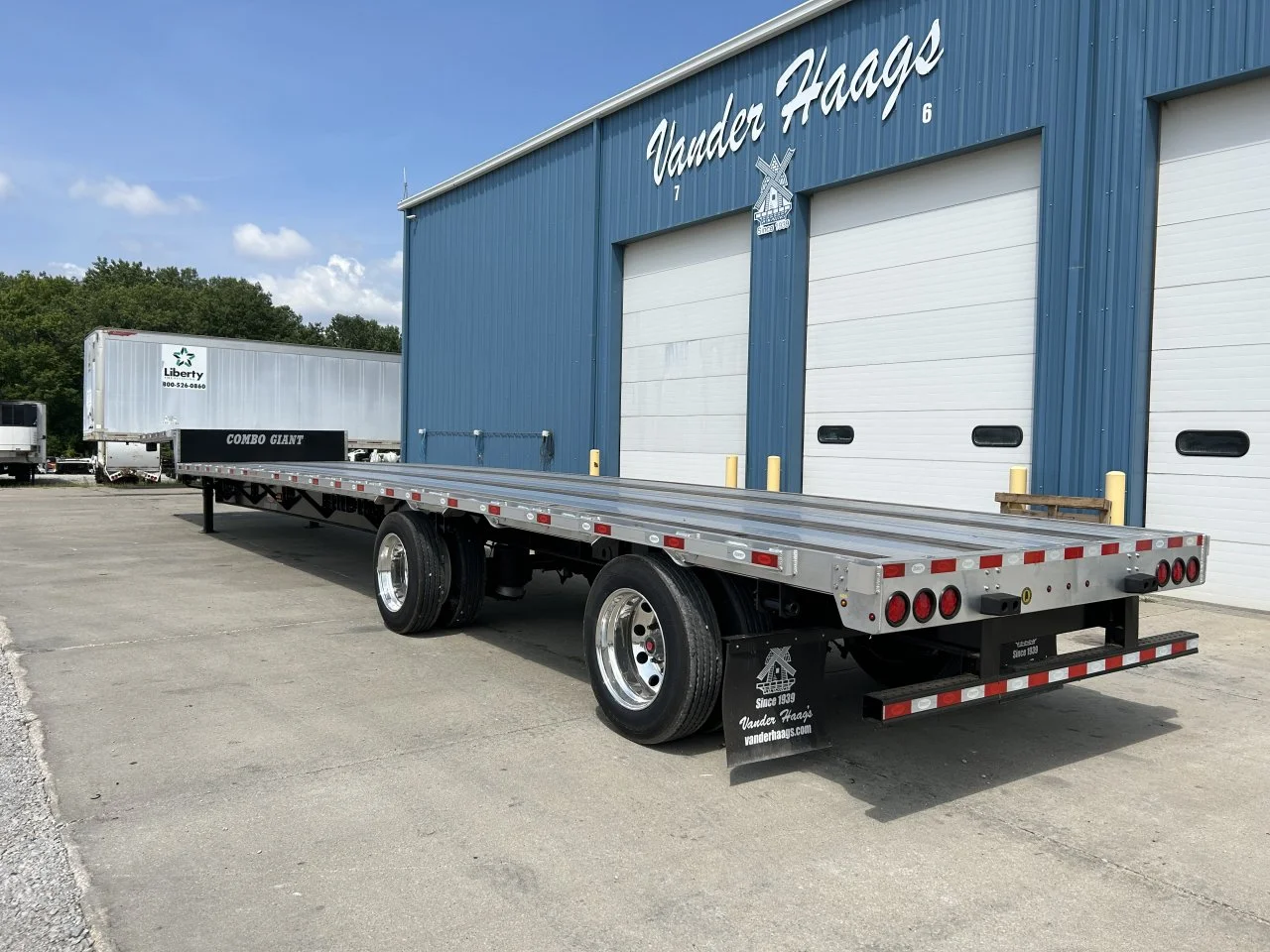

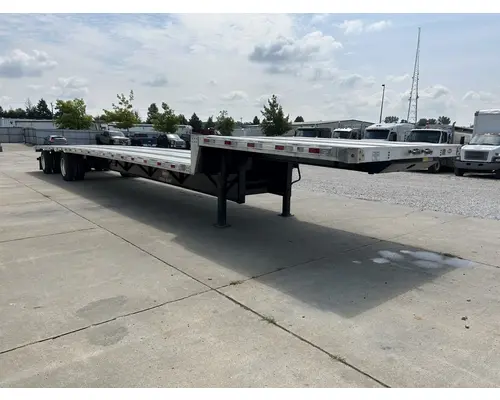

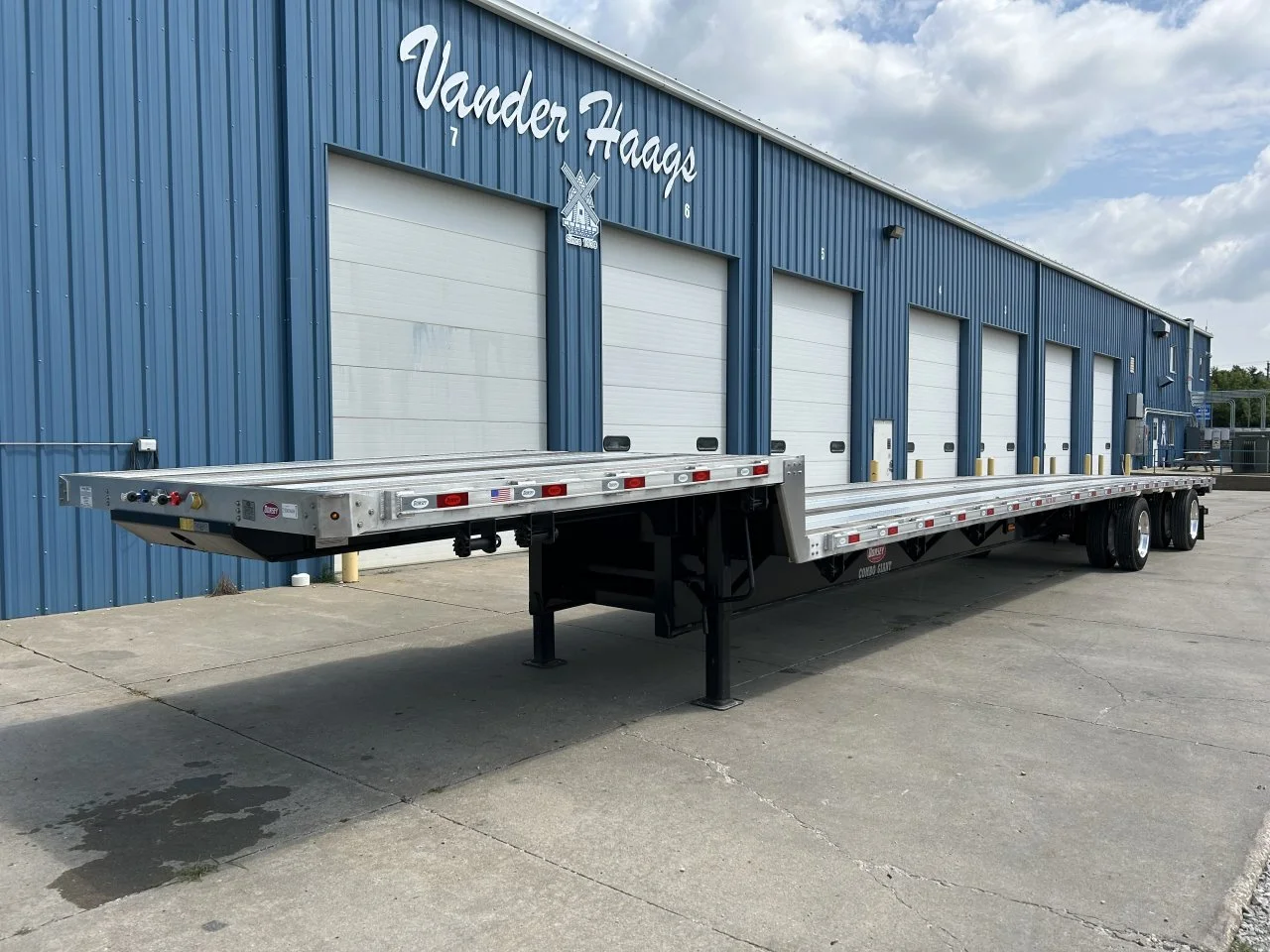

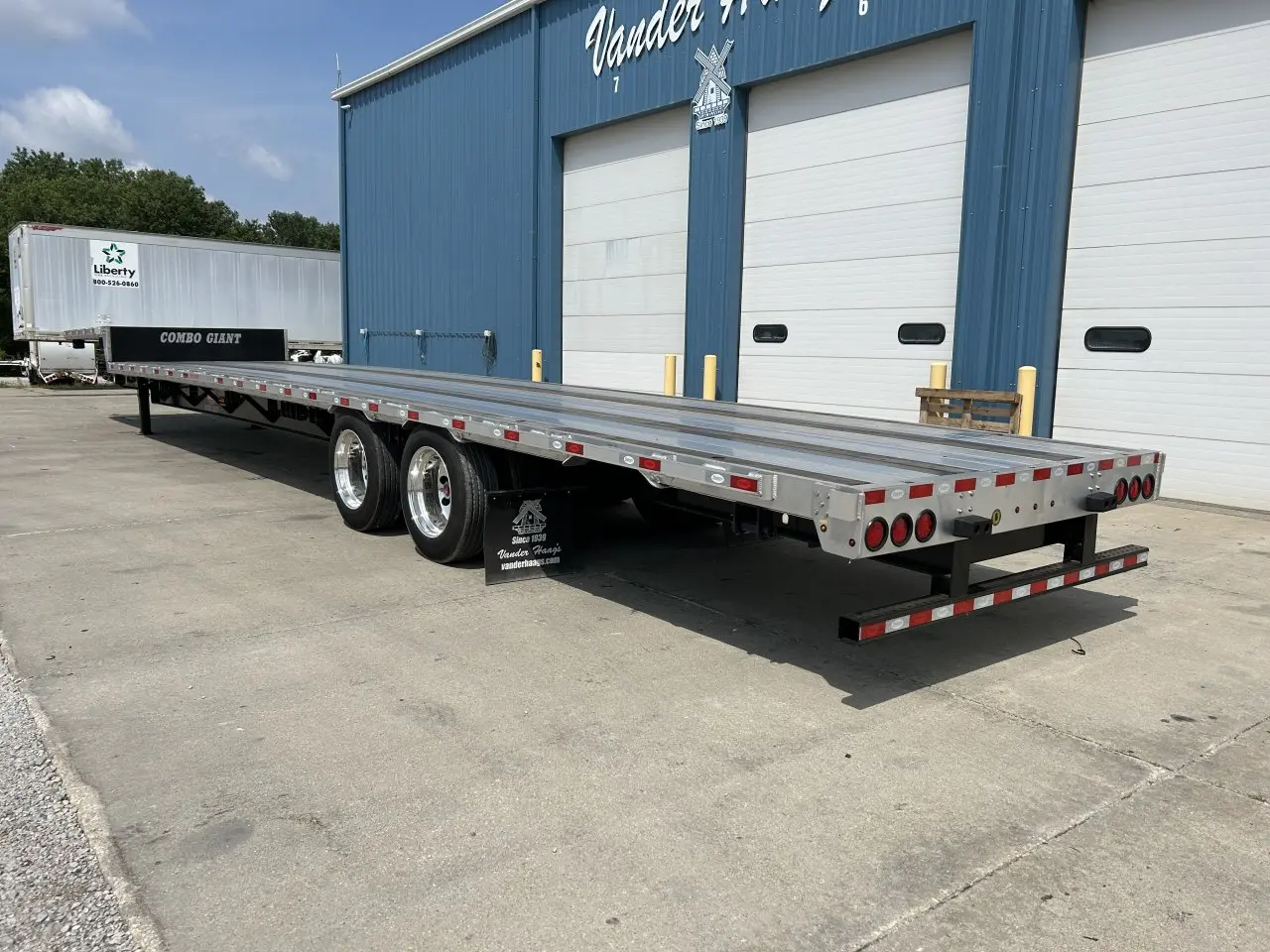

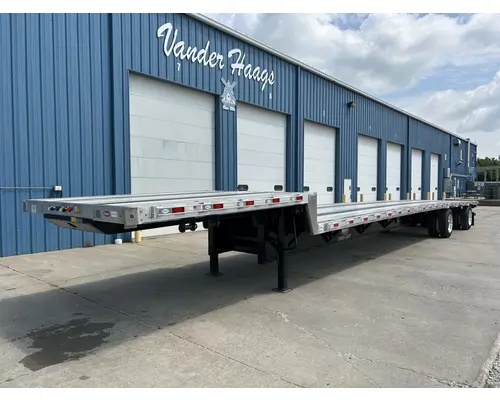

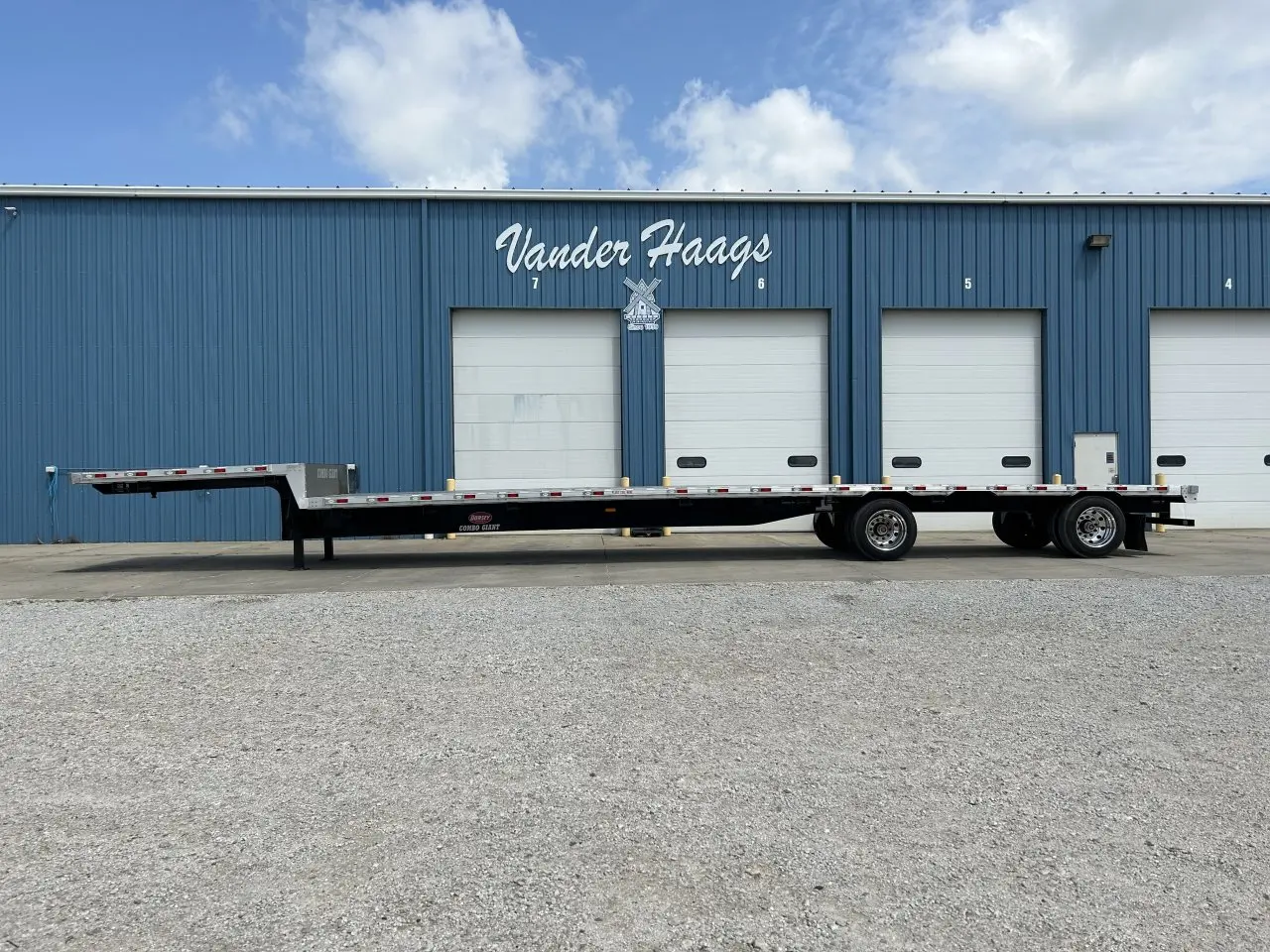

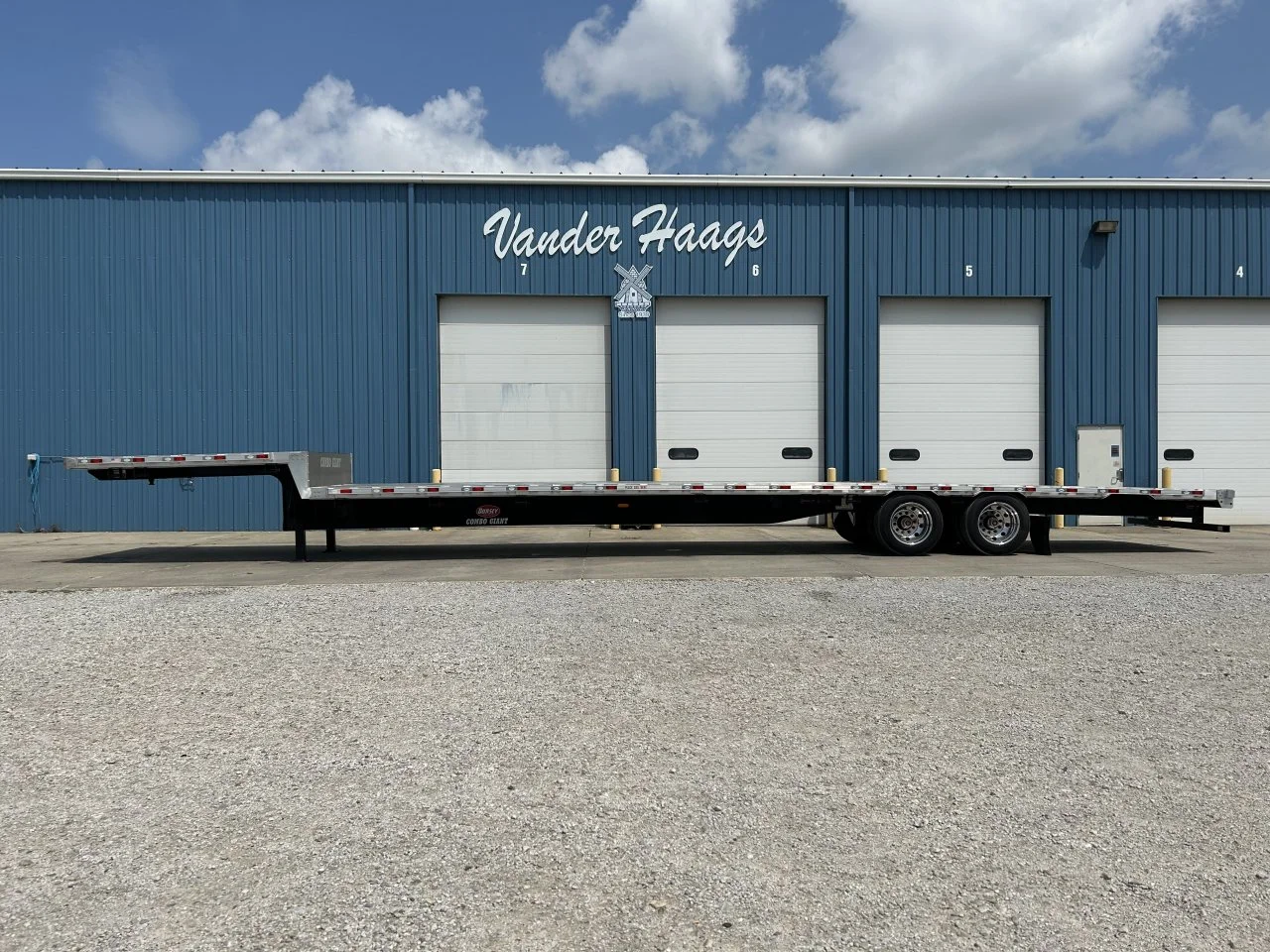

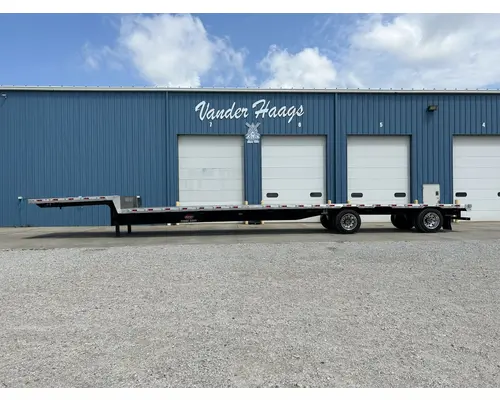

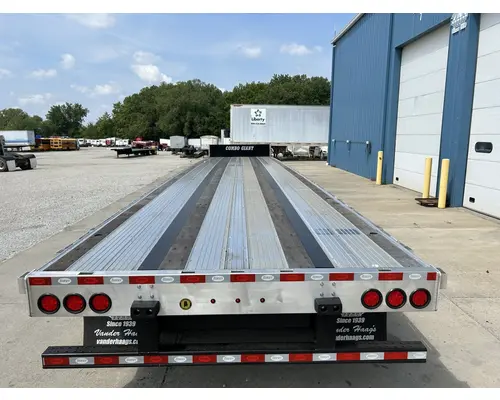

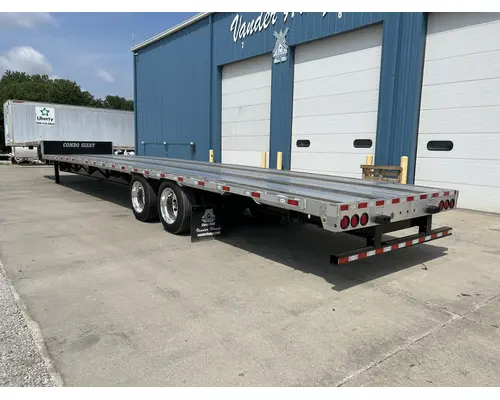

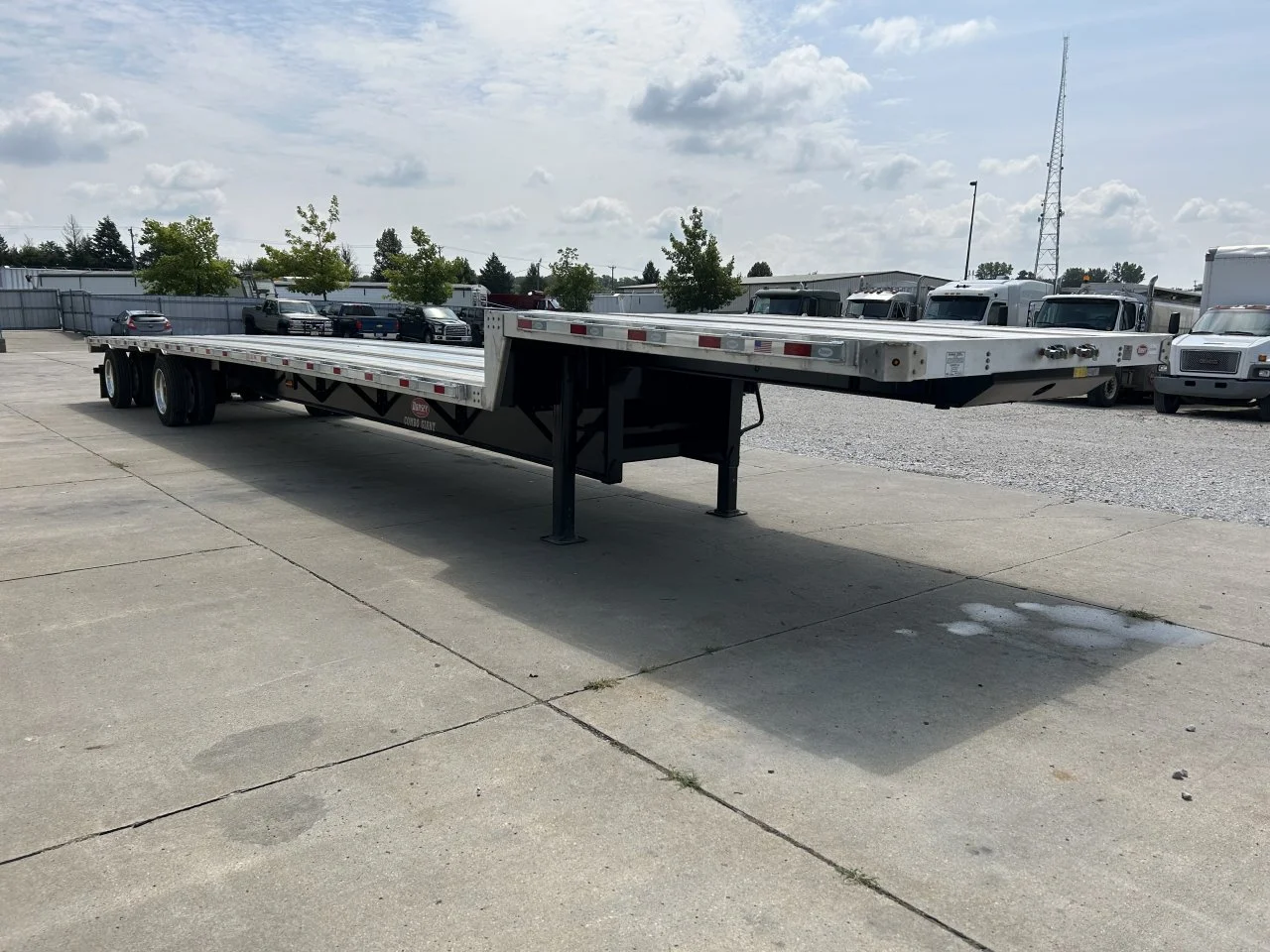

2024 Dorsey DC53-ASY-AB60 Trailer

Drop Deck: FET Included and Prices are FOB the Factory
CAPACITY Standard Beam Pkg - 80,000 GVWR (60,000 in 10' Span)
OVERALL LENGTH 53' - Base Weight 11,680#
UPPER DECK LENGTH 10'6"
LOWER DECK LENGTH 42'6"
OVERALL WIDTH 8' 6"

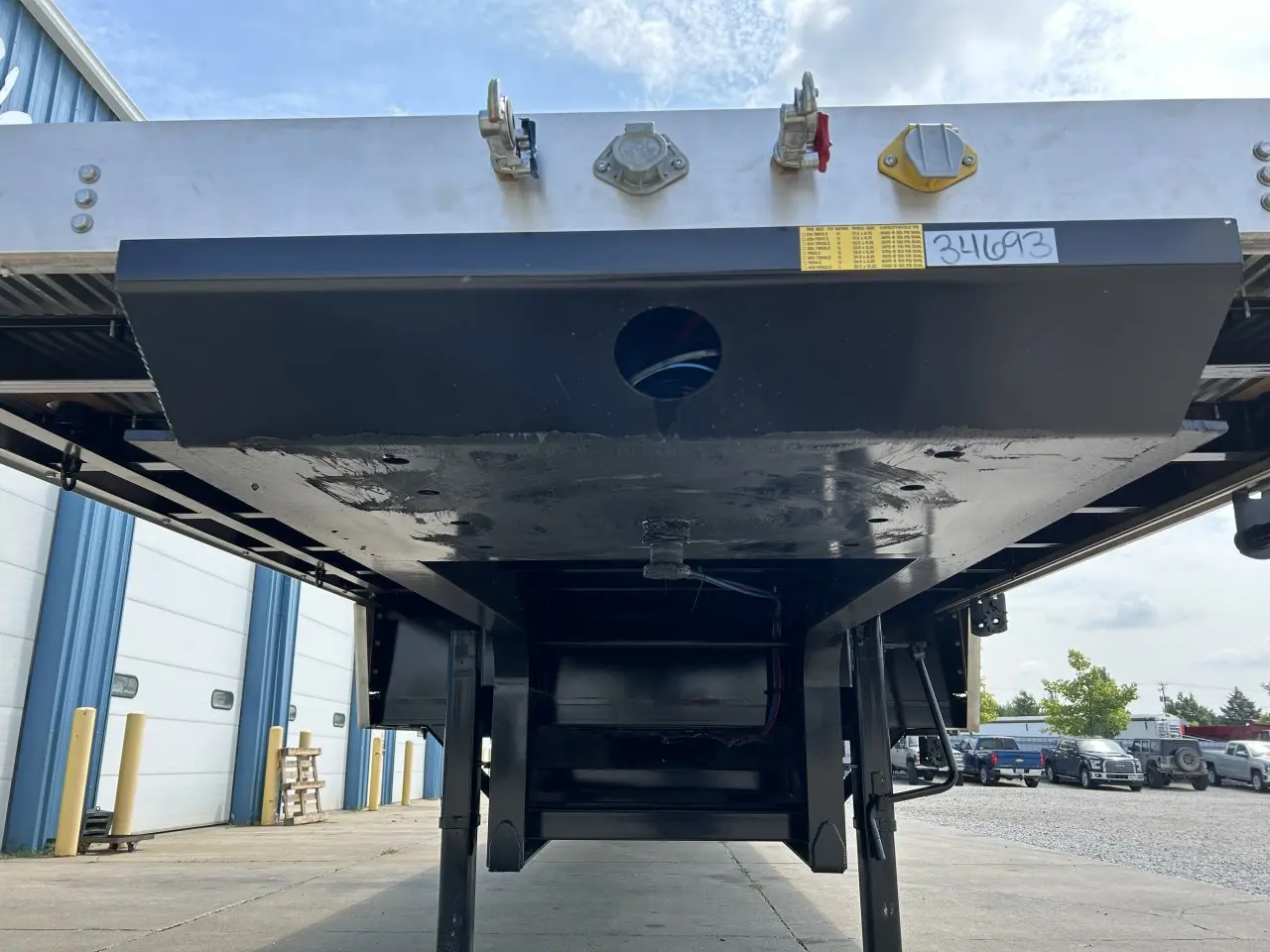

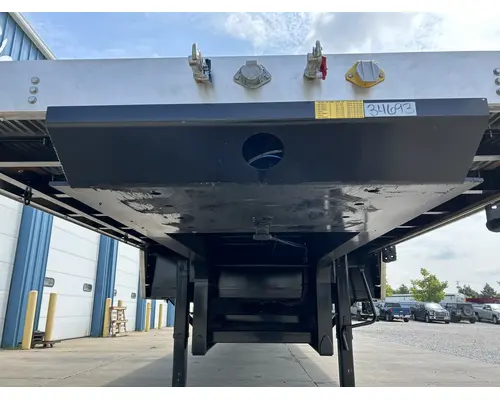

KING PIN SETTING 24" - Tapered Front
UPPER COUPLER PLATE 1/4"
UPPER COUPLER HEIGHT 48"
FRONT SKIRT Alum Front and Corners
REAR SKIRT Aluminum
BULKHEAD None
MAIN FRAME 26" Fab.-PreCamb.I-Beams-(80K Pkg)
SIDE RAILS 6"-Alum-Extruded W/Double L Track
TOP DECK FLOOR SILLS 4" Steel I-Beam - 18" O.C.
LOWER DECK FLOOR SILLS 4" Steel I-Beam 12" O.C. HD Pkg
COIL HAUL PACKAGE Single Coil Placement - 5 Extra Stud Sills-Ctr On Trailer

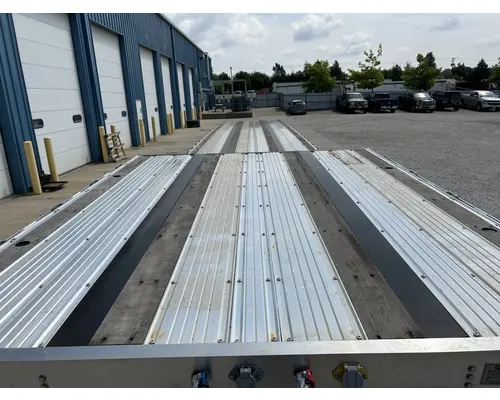

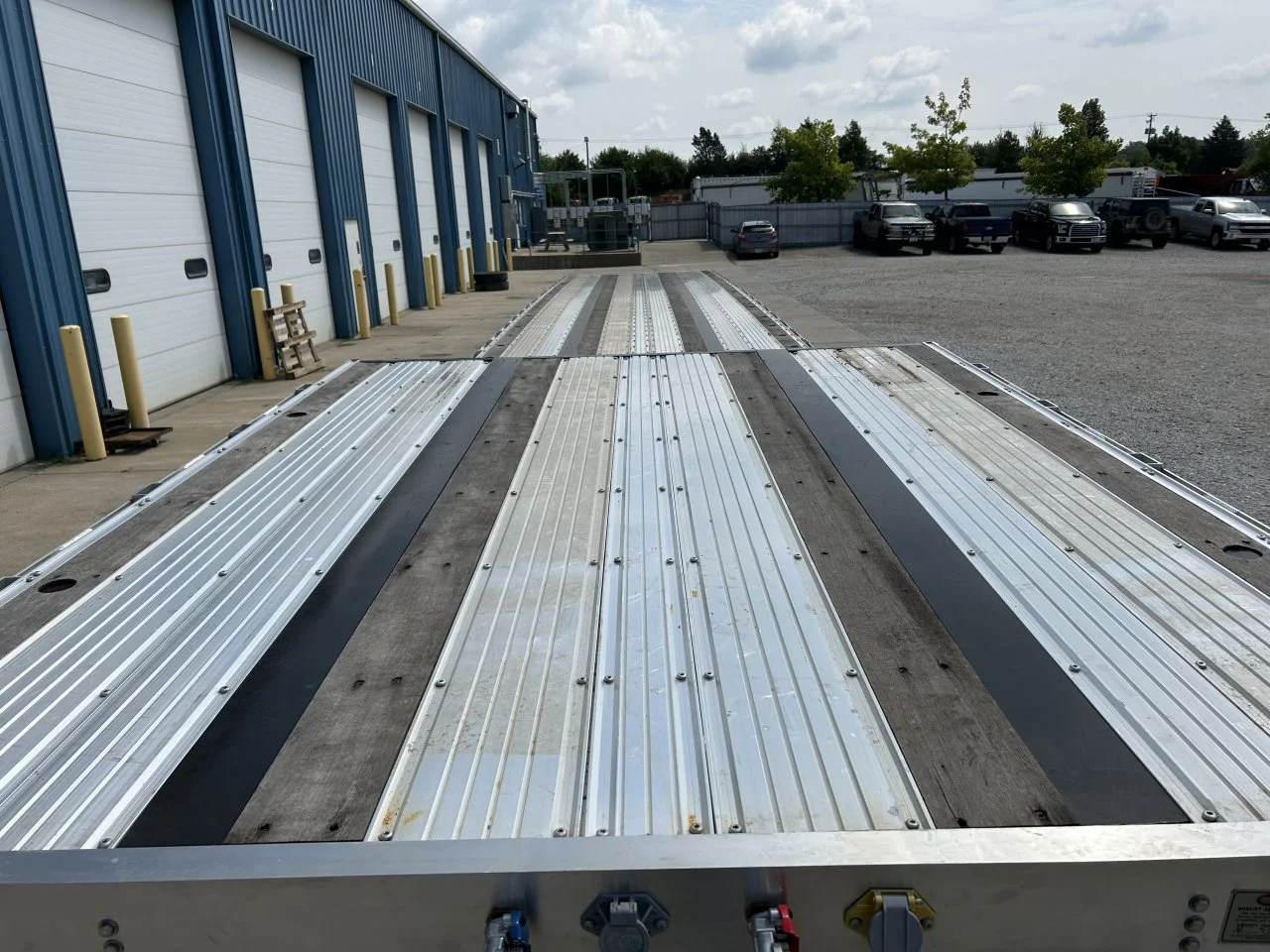

FLOOR DECKING 1-1/8" HD Aluminum W/4 Nailer Boards

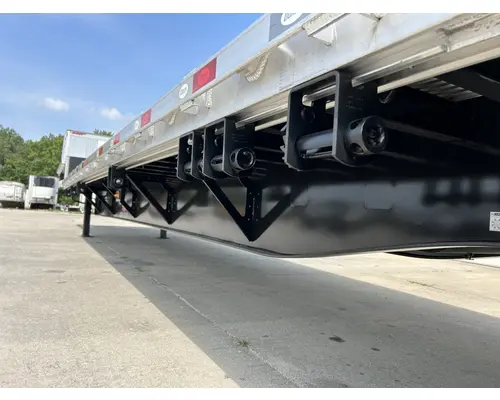

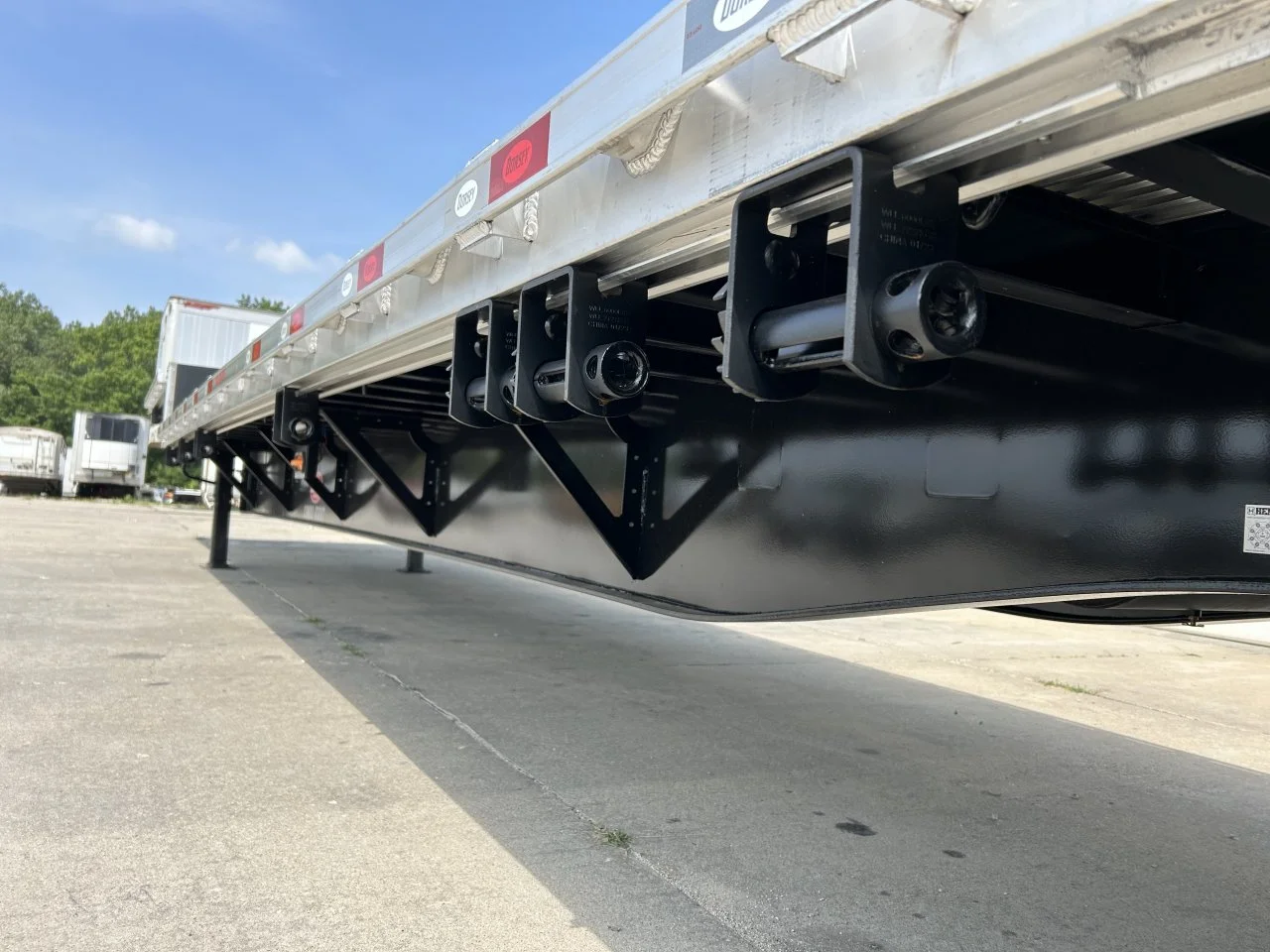

WINCHES 12 DOUBLE L (+)#75
WINCH TRACK Double L Aluminum - Extruded Siderail R/S Only
Tie Bar Curb Side - Full Length - 3/8" x 2"
STRAPS None
LANDING GEAR Two Speed
SUSPENSIONS Air Ride-Hendrickson Intraax - 23K 2 Axle - RAS
SUSPENSION LOCATION R.A.S.- Cal Legal (Center of KP to Center of Rear Axle 40' in Closed Position)
AXLES (2) 22.5K Cap.- Type 30 Chambers - Auto Slacks - ABS - 22.5 Tires (1463#)
AXLE SPACING 10'2" Wide Spread/ RAS - CAL Legal(49")
LIFT AXLE None
DUMP VALVE Elect.-Wired Thru Aux 7way Plug @ Front of Trailer-Dump Rear Axle(+9#)
PARKING BRAKES All Axles
ABS SYSTEM ABS System 2S/1M
DUST SHEILDS None

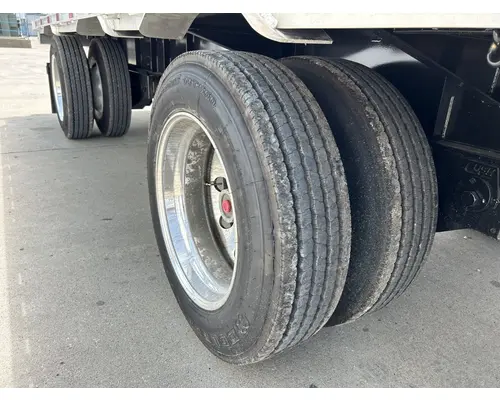

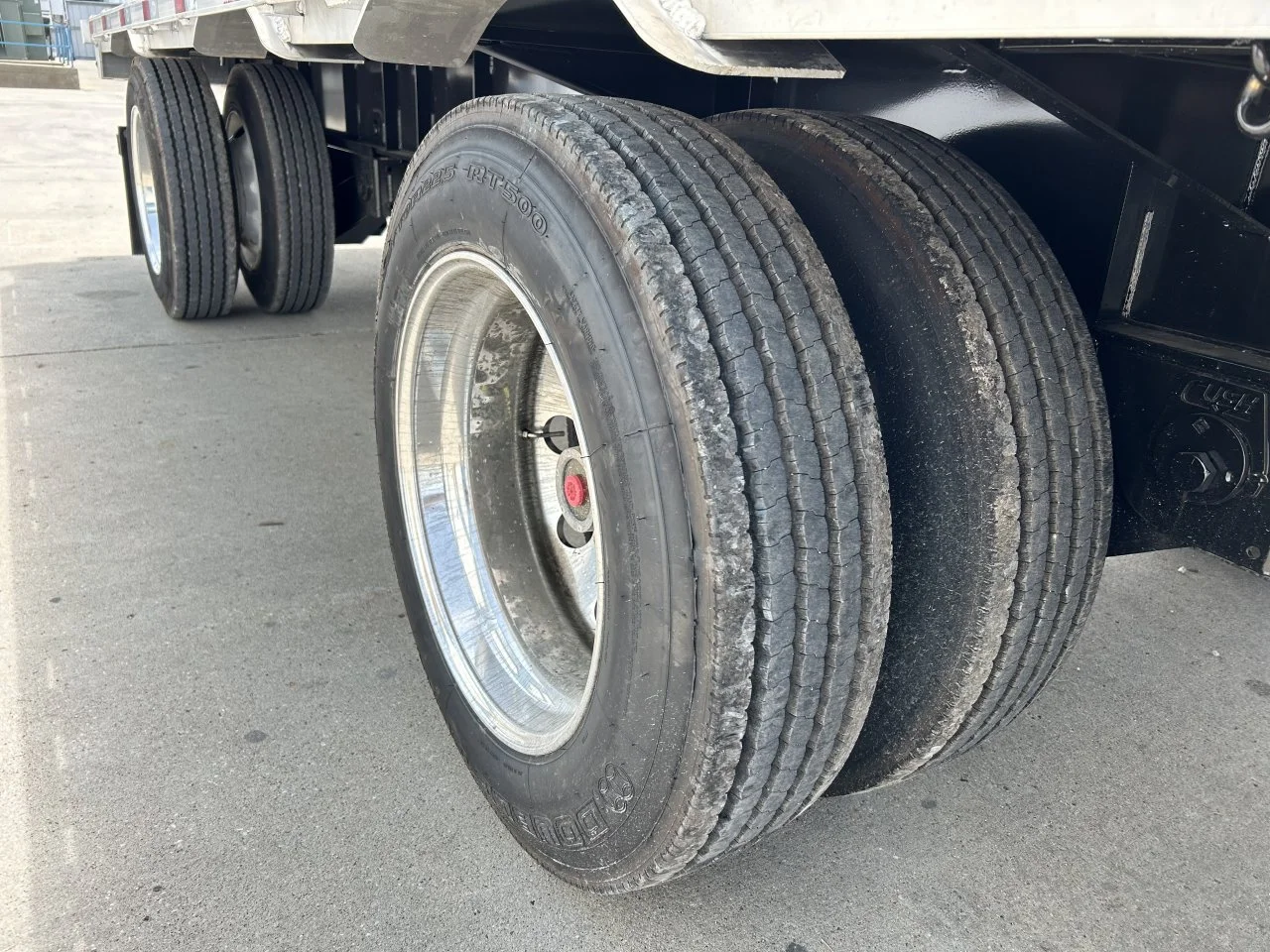

WHEELS Disc - Hub Pilot-22.5 (2-AX)-Polish ALUMINUM 4 Outside Wheels(4-Steel Inside)

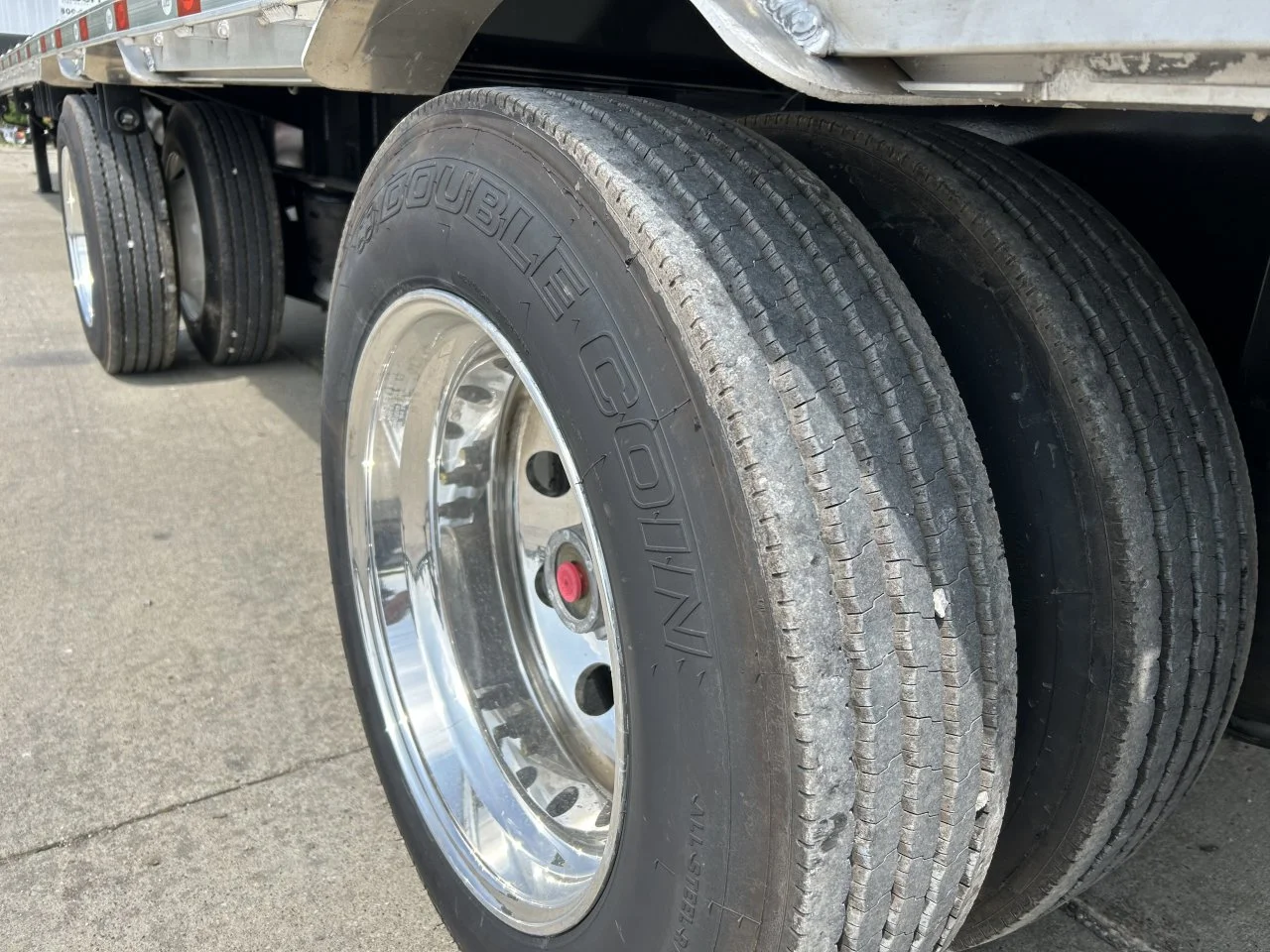

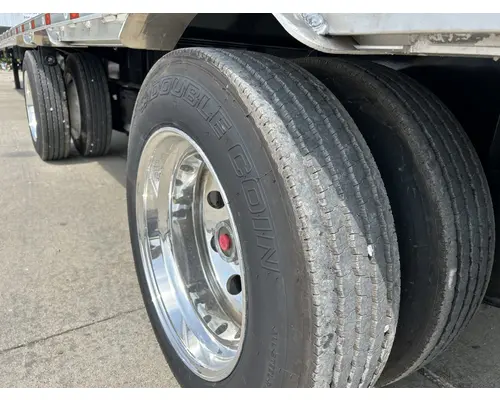

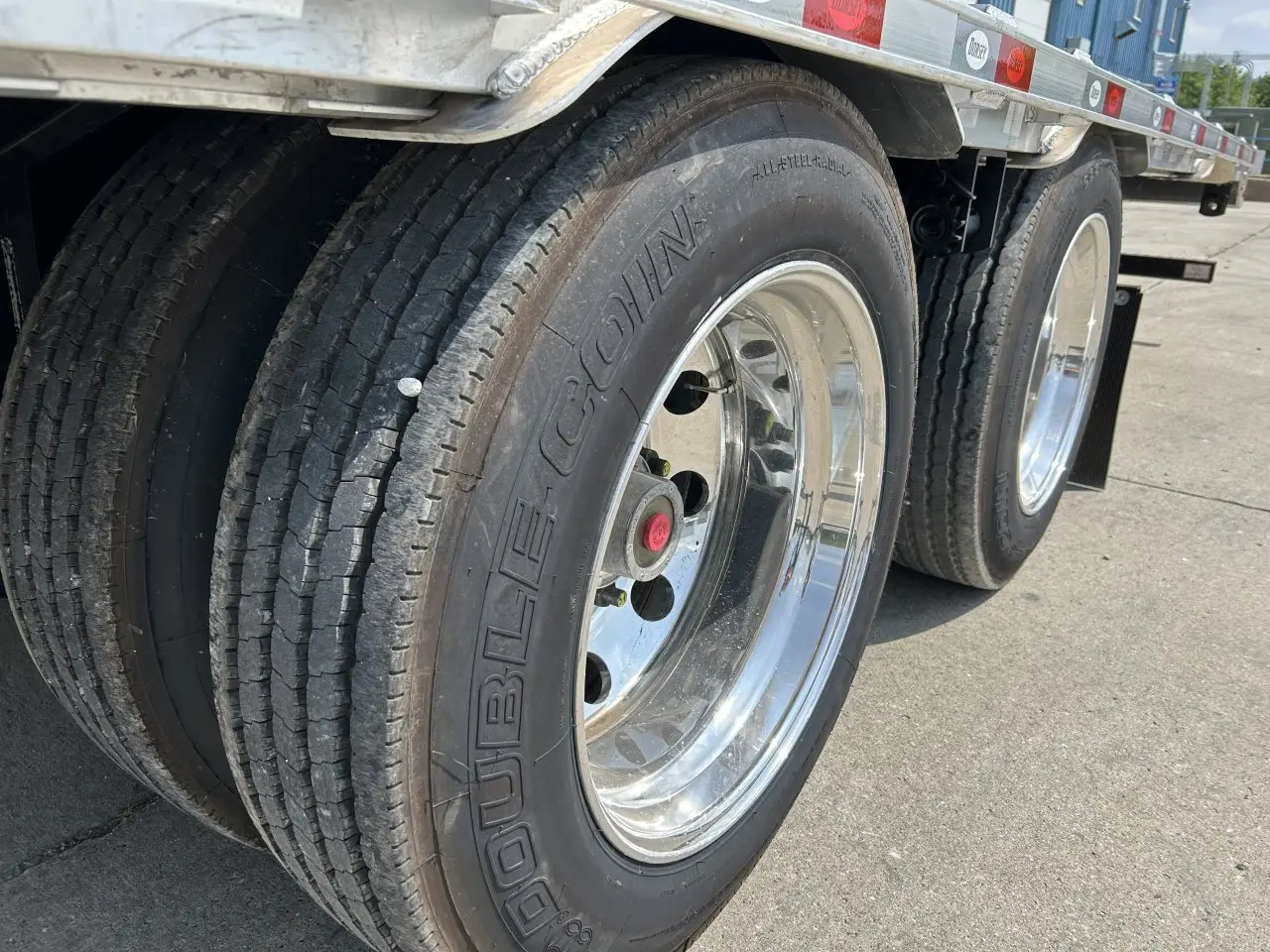

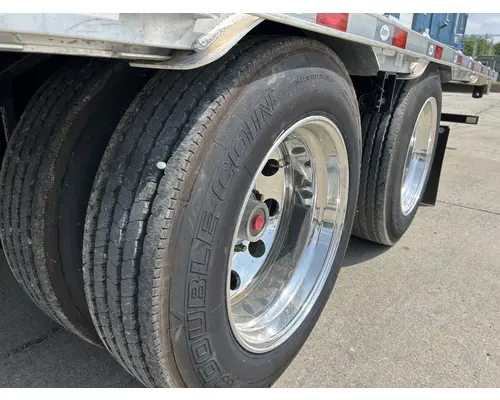

TIRES 255/70R 22.5 - 41" Loaded Deck Height - Double Coin
TIRE INFLATION SYSTEM None
ANTI-SAIL MUD FLAPS Behind All Axles
STAKE POCKETS 24" O.C. & 5 Across Rear
SPOOL Triangular Shaped
RUB BAND ALUM 3/8" x 3" - Aluminum - Recessed for DOT Tape
DOCK BUMPERS Rubber Inboard
CARGO TIE DOWN 14 Pair of Recessed Chain Ties Evenly Spaced

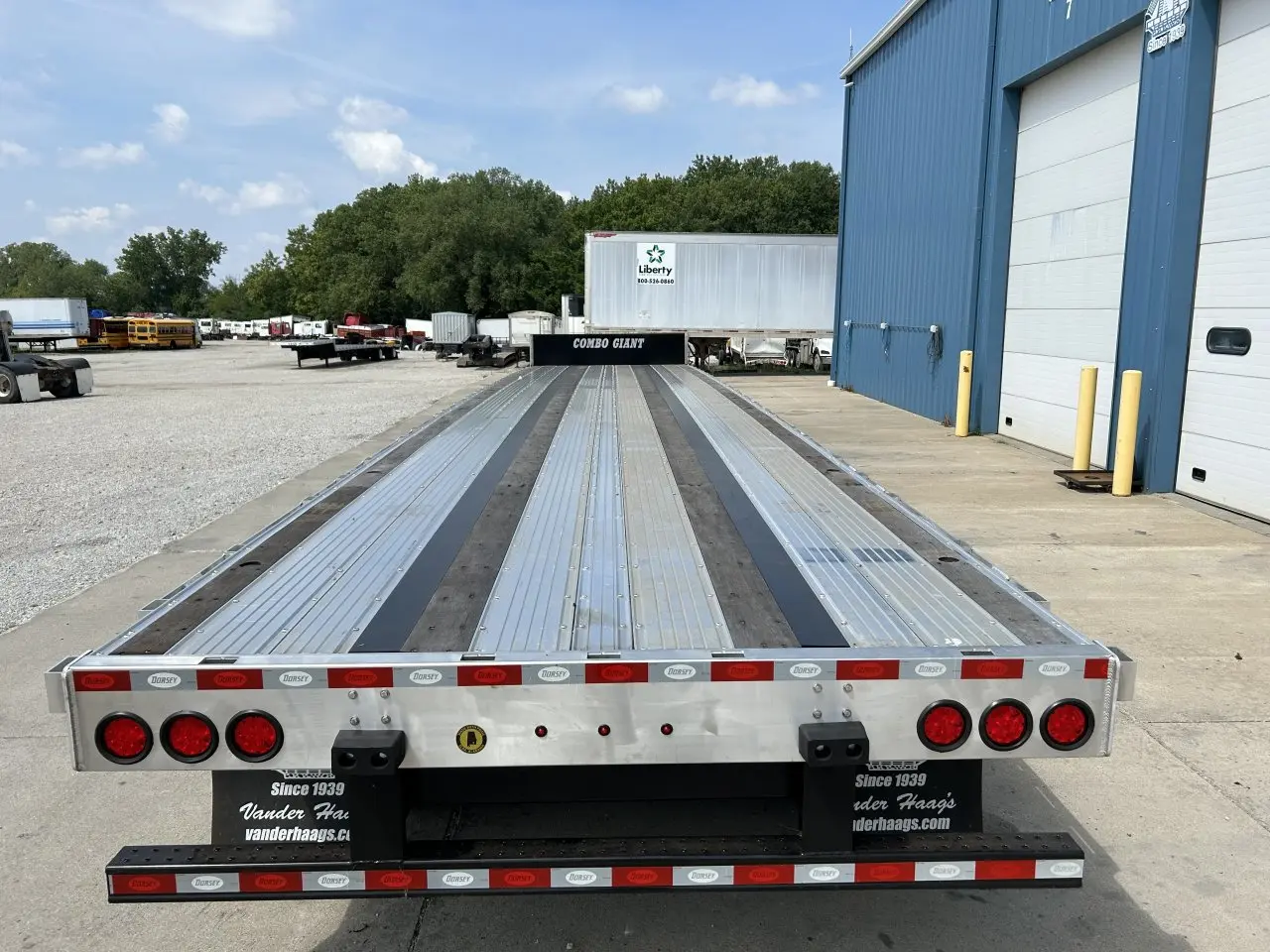

LIGHTS Sealed Wiring Harness - 2 Micros Per Side & Mid Turn 3/3/3 Rear



Composition: Combination
Lift Axle: None
Combination: Yes
Floor Material: Aluminum
Winch Qty: 12
Coil Package
