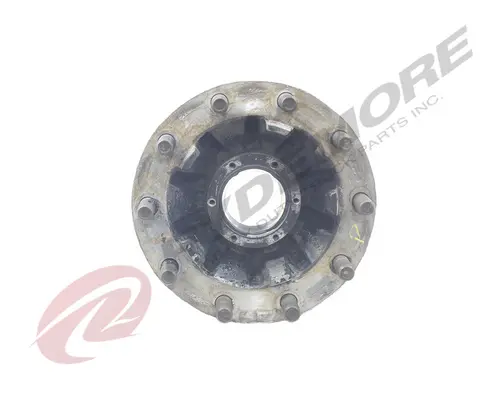

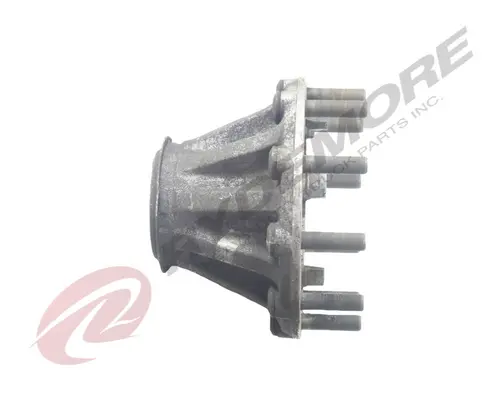

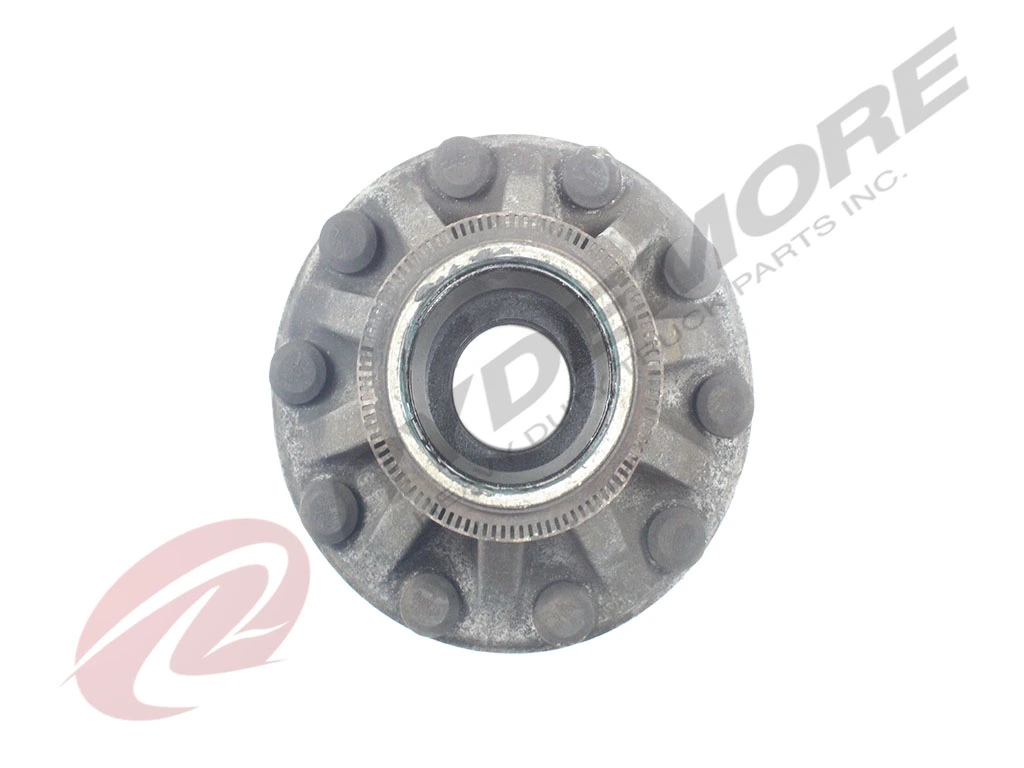

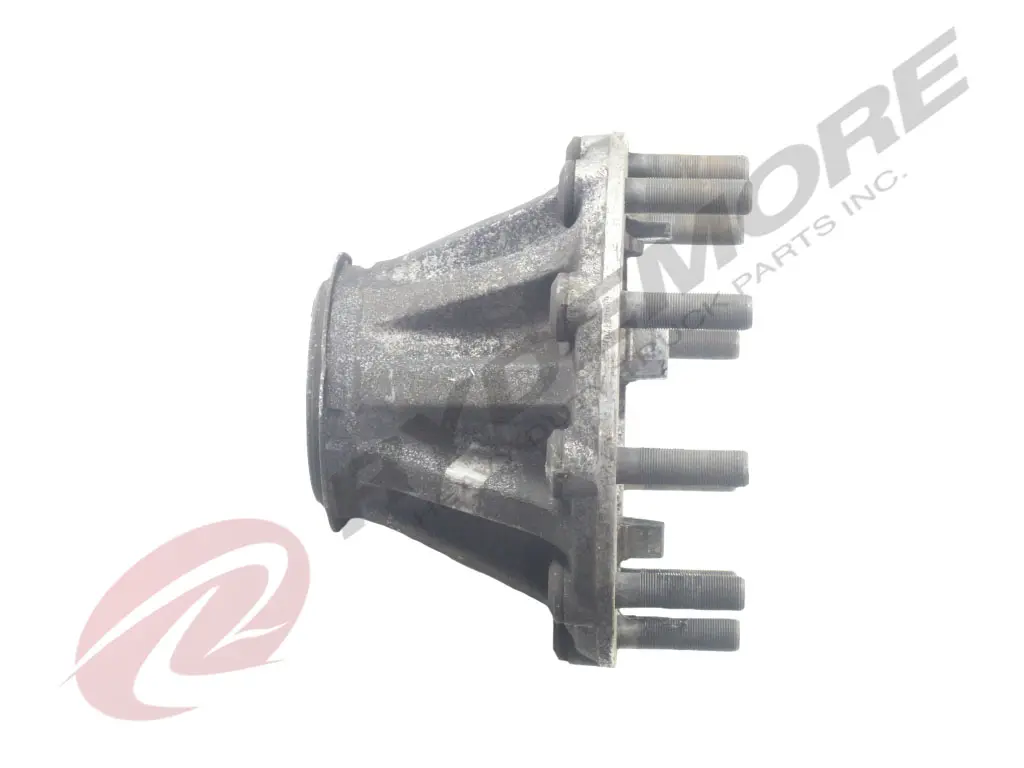

CONMET VARIOUS CONMET MODELS Hub

Used: Used Good used, cleaned and inspected Conmet Hub. Part Number: 10082201
Interchange:

WEBB 25202--3T-2300P (D-FLAT SPINDLE NUT)

WEBB 25202--3T-2200P (TANG SPINDLE NUT)



Material - Aluminum

Axle Position - Front

Axle - FF

Assembly Type - PreSet

Bearing Set (Inboard) - SET: 427

CUP - HM212011PS (PreSet)

Cone - HM212049 PS (PreSet)

Bearing Set (Outboard) - SET: 428

CUP - 3720 PS (PreSet)

Cone - 3782 PS (PreSet)

Compatible Brake Type - Drum

Rotor Type - N/A

Hub Mounting System - HP10

Wheel Stud Standout (in.) - 2.92

Wheel Material - Aluminum Wheels

Flange Offset (in.) - 5.44

Brake Drum Pilot (in.) - 8.78

Barrel Length —

ABS TONE RING INCLUDED YES

Weight (lbs.) - 37.8

PreSet / PreSet Plus Hub Rebuild Kit - 10081727

Inner Bearing - 10041905

Outer Bearing - 10041906
Seal & Spacer - 10081518
