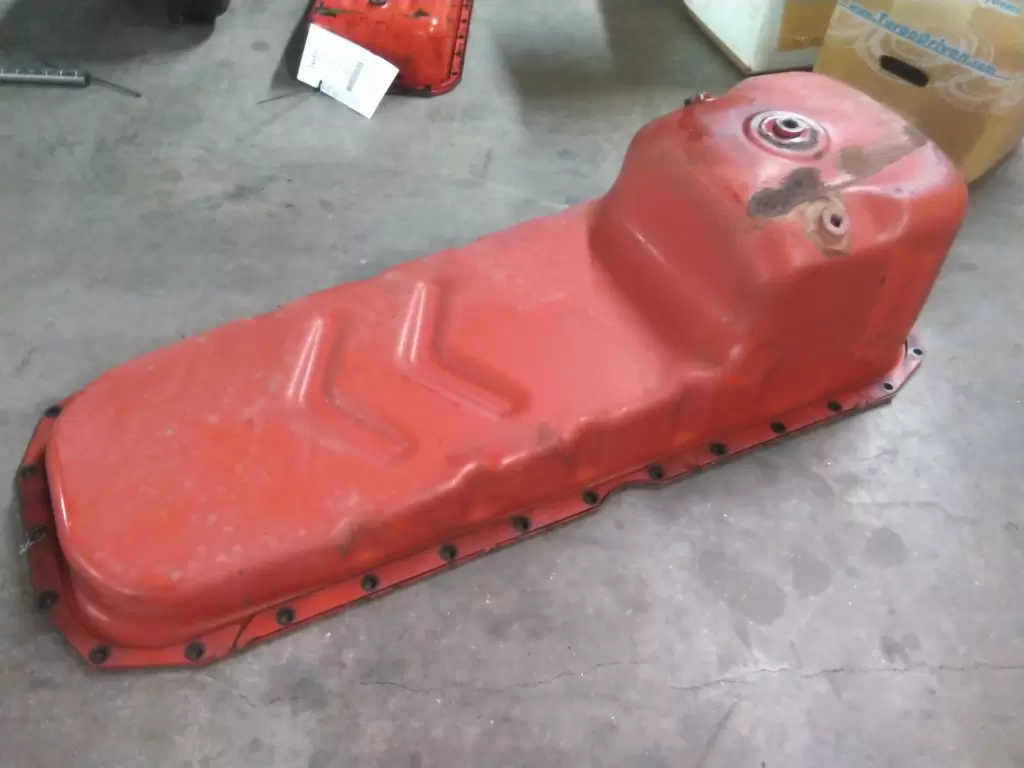

CUMMINS X15 EPA 17 OIL PAN

USED: USED USED GTO OEM CUMMINS X15 (5779) OIL PAN
5647538

SUMP LOCATION: FRONT
MATERIAL: STEEL
CONSTRUCTION: STAMPED
SUMP CAPACITY: 11 GAL HIGH, 9 GAL LOW
ANGULARITY LIMITS (GRAVITATIONAL HORIZONTAL): 38 DEGREES FRONT DOWN
22 DEGREES REAR DOWN
30 DEGREES FUEL PUMP DOWN
30 DEGREES EXHAUST DOWN
UNIQUE CHARACTERISTICS: STUDS ON OIL PAN
FLANGE LOCATED AT #2, #5, #28 AND #32
MOUNTING HOLES ON EXHAUST SIDE AND AT #11,
#12, #15, #16, #18, #19, #22 AND #23
MOUNTING HOLES ON FUEL PUMP SIDE OF ENGINE
REFER TO THE NEW ENGINE BUILD STANDARD FOR
D10 HOLE LOCATIONS IN OIL PAN. AEB 46.05
MAY ALSO BE CONSULTED. MAXIMUM WEIGHT
LIMIT ON ANY SINGLE STUD IS SEVEN (7) POUNDS.
POWER ANGLE: NOT TO EXCEED 5 DEG.
