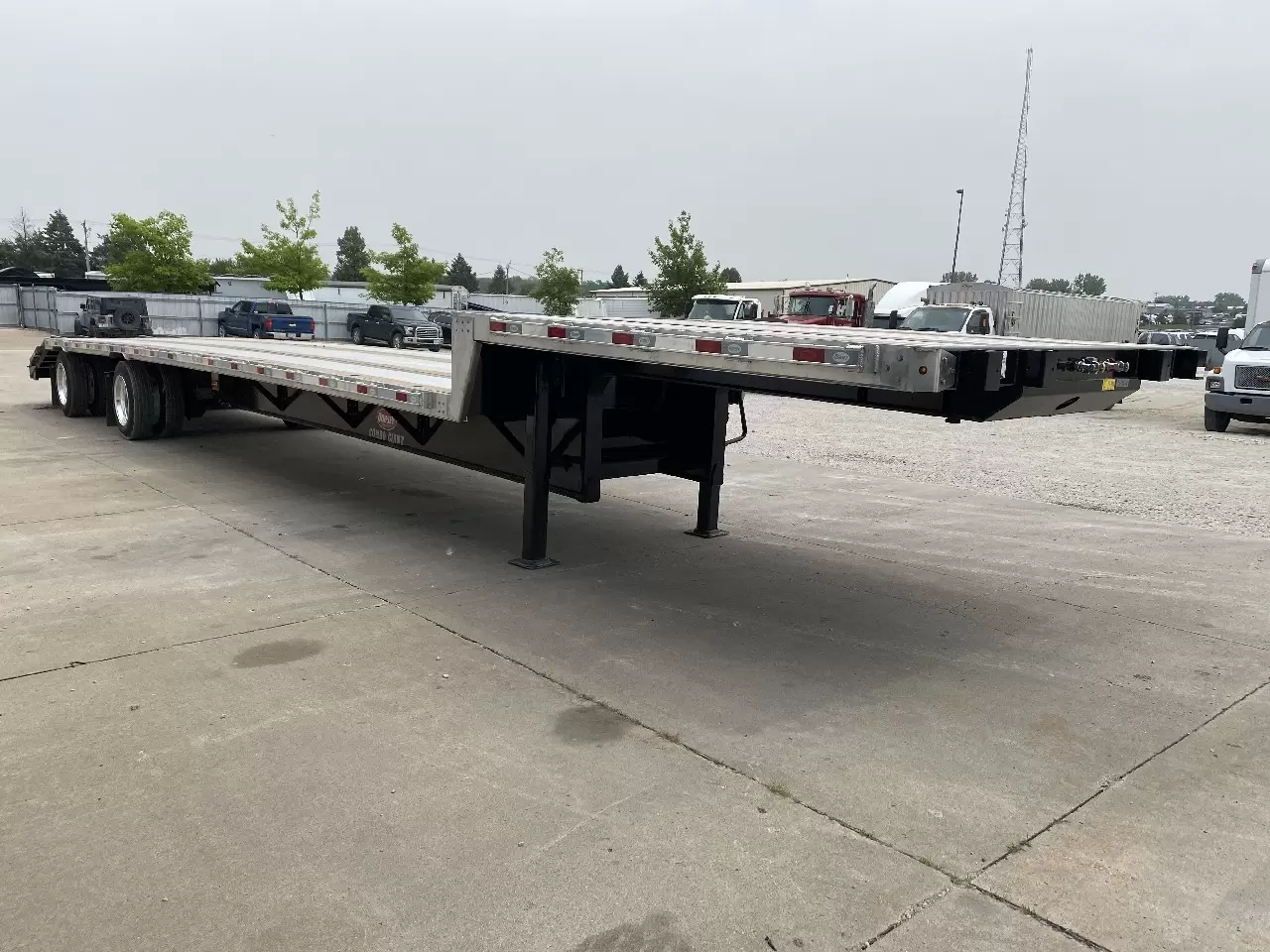

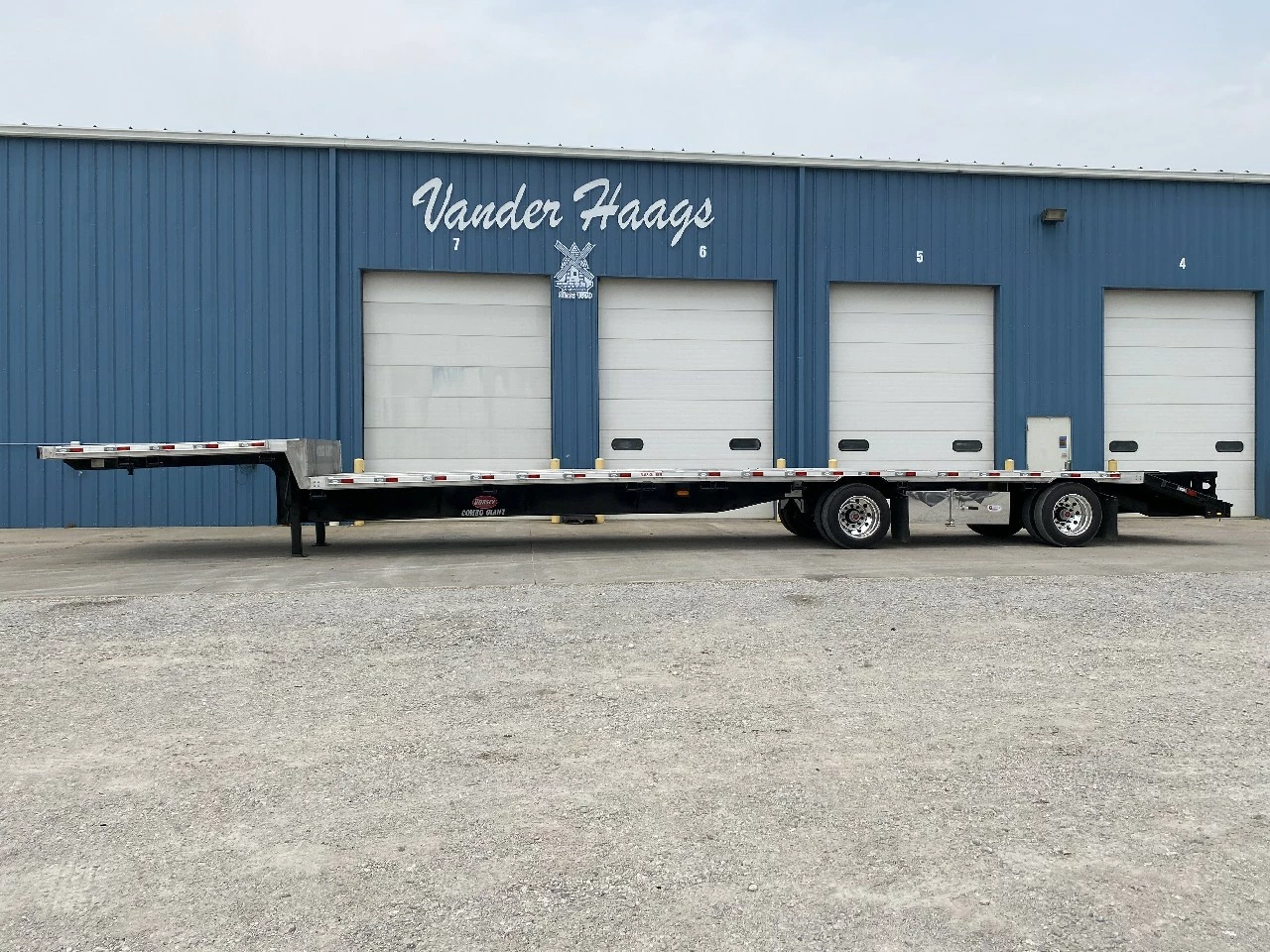

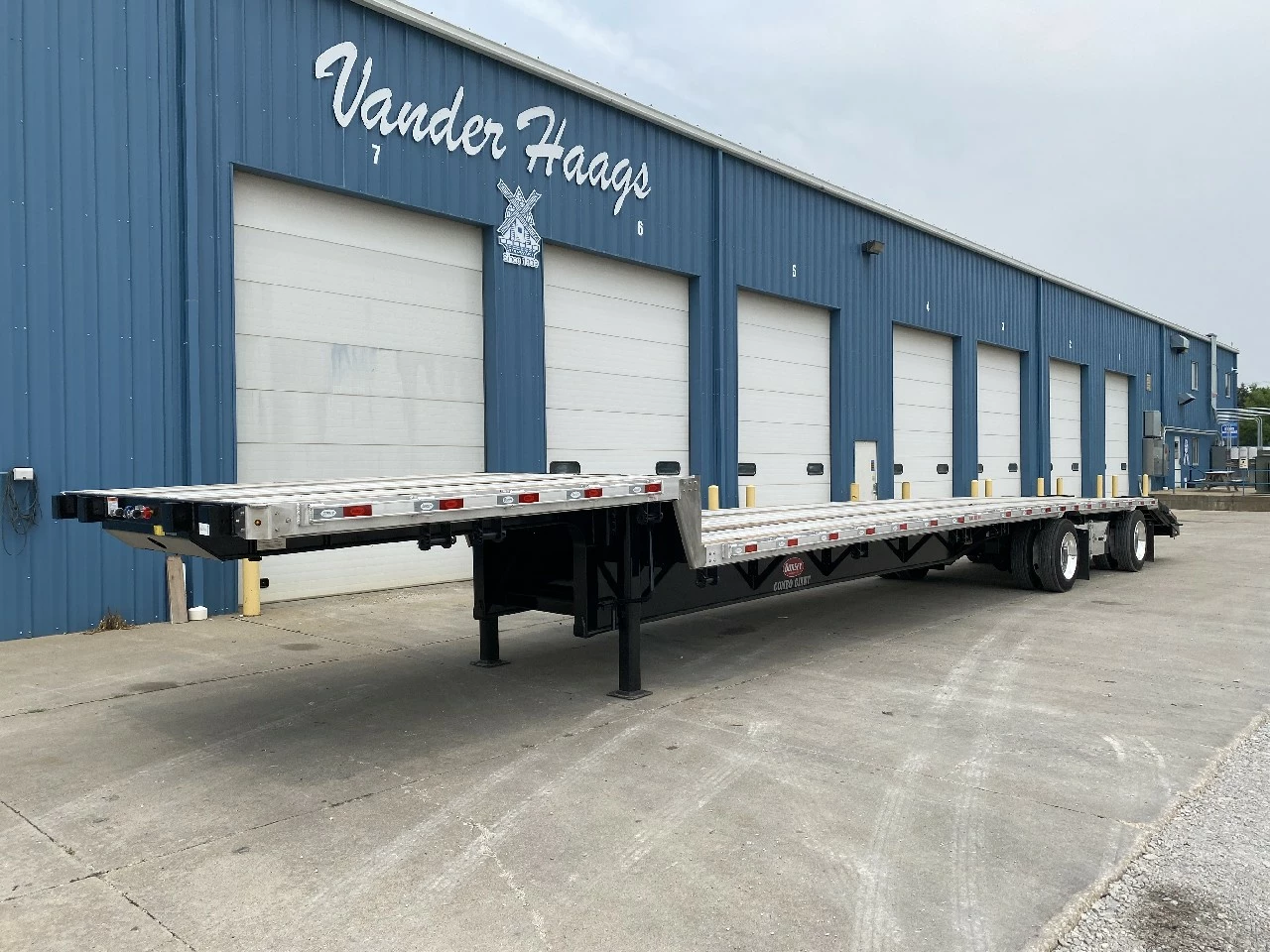

2024 Dorsey DC53-BTR Trailer
$56,900.00
Tag #: 24DO288 | Length: 53' |
VIN #: 7KYDC5327RED34668
| Axle: Spread (Tandem Axles) |
| Suspension: Air Ride |
| Weight Rating: 80000# |

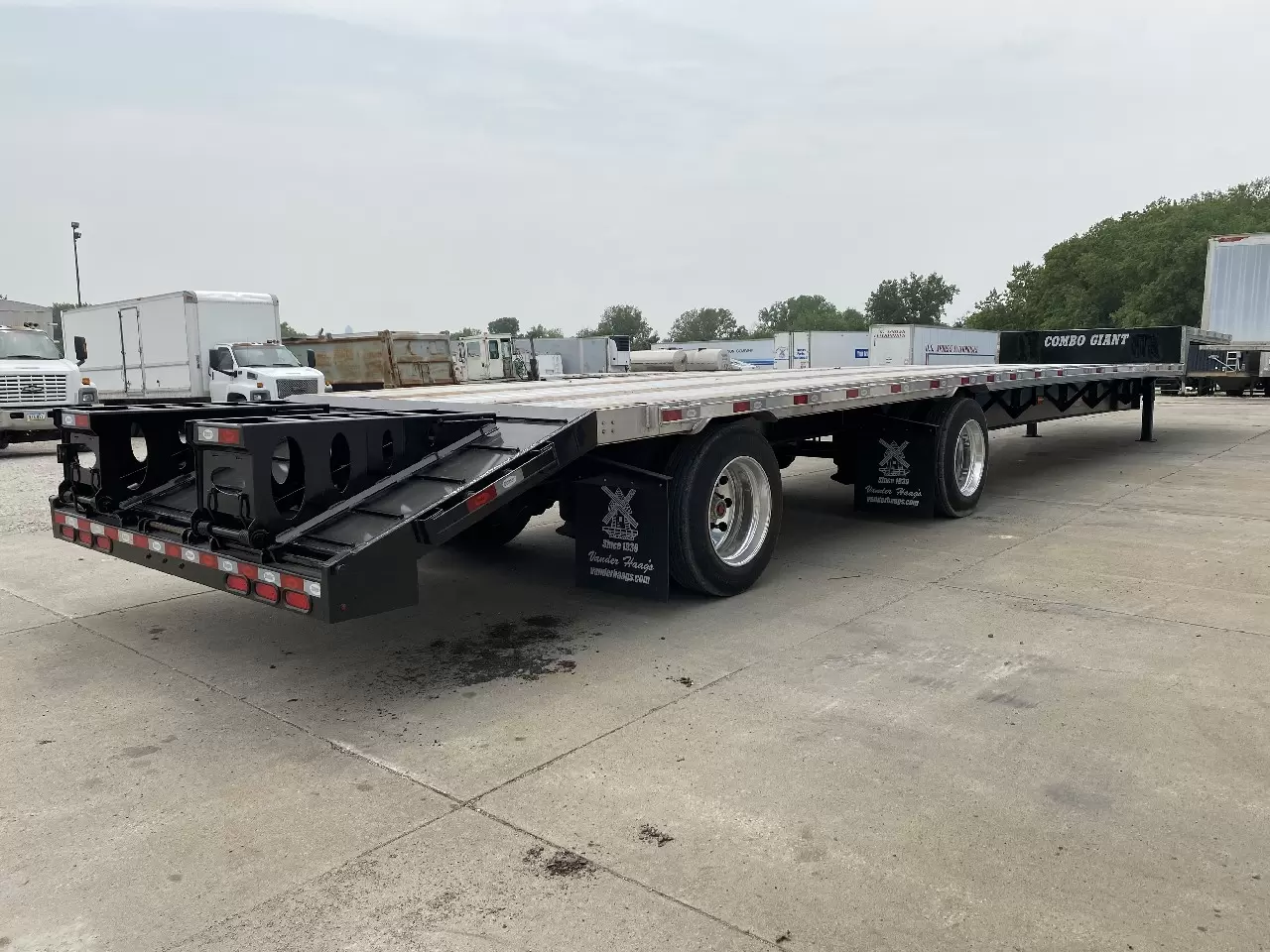

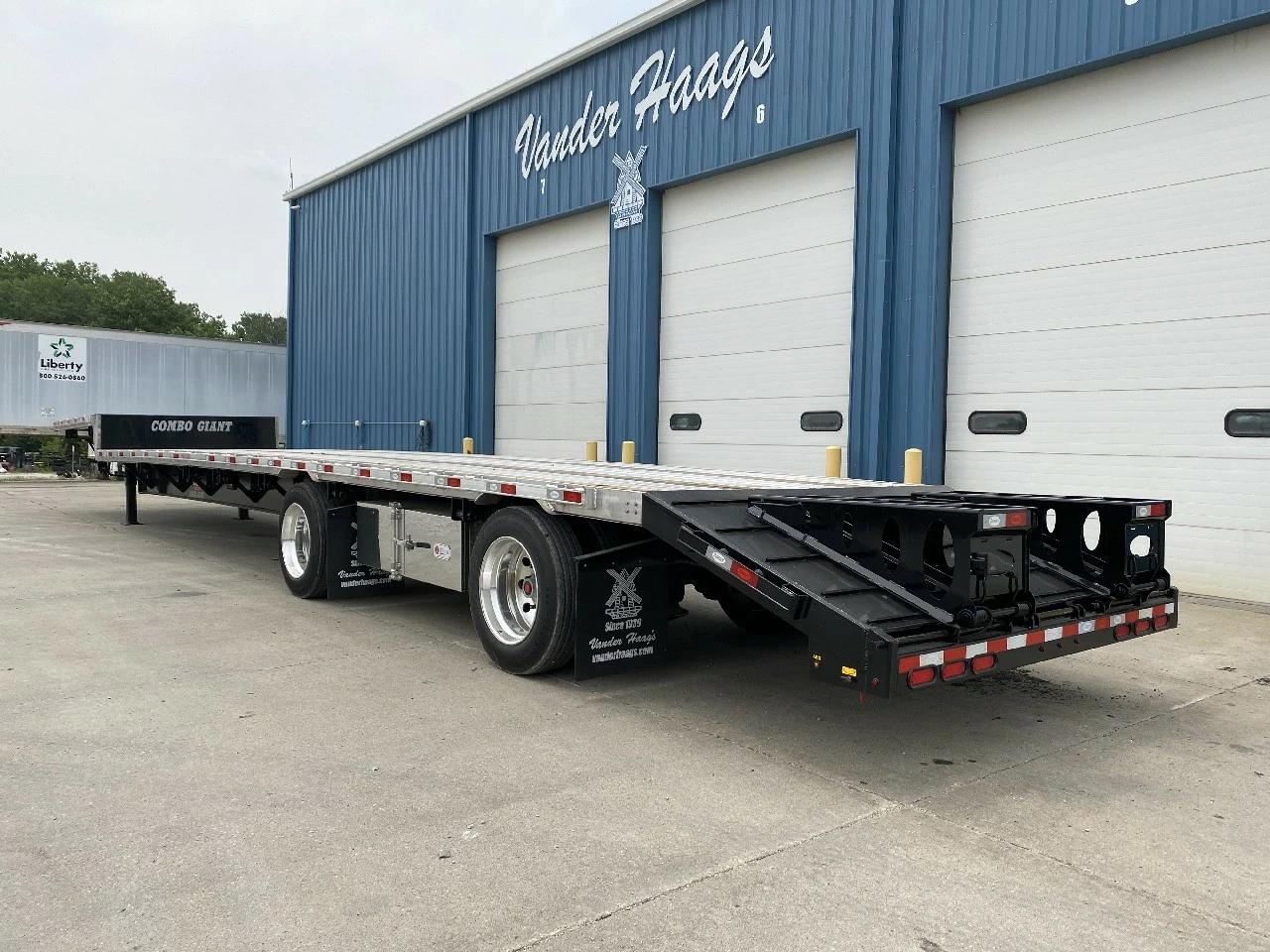

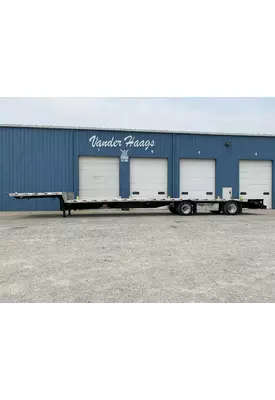

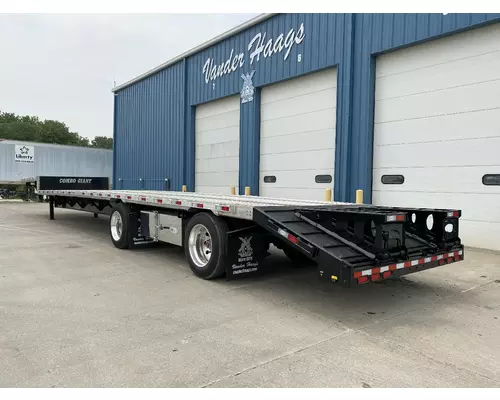

Drop Deck: (FET INCLUDED and PRICE FOB THE FACTORY) 2023 Dorsey 53' x 102" Beavertail Combo Drop Deck with 2 Ramps (53' including Beavertail), Base Weight 13,000#, 80,000 GVWR (60,000# in 10' Span)
UPPER DECK LENGTH: 10' 6"
LOWER DECK LENGTH: 38'' 1"

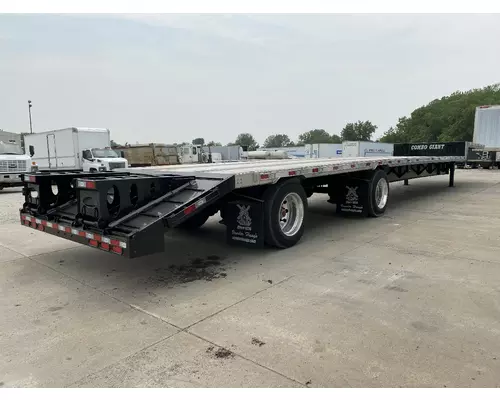

DOVETAIL: 53.13" - Steel Smooth Plate & Traction Bars
OVERALL WIDTH: 8' 6"
KING PIN SETTING: 24"
UPPER COUPLER PLATE: 1/4"
UPPER COUPLER HEIGHT: 48"
MAIN FRAME: 26" Fab.-PreCamb.I-Beams-(80K Pkg)
SIDE RAILS: 6" Aluminum Extruded - W/Double L Track
TOP DECK FLOOR SILLS: 4" Steel I-Beam - 18" O.C.
LOWER DECK FLOOR SILLS: 4" Steel I-Beam 12" O.C. HD pkg
COIL HAUL PACKAGE: Single Coil Package

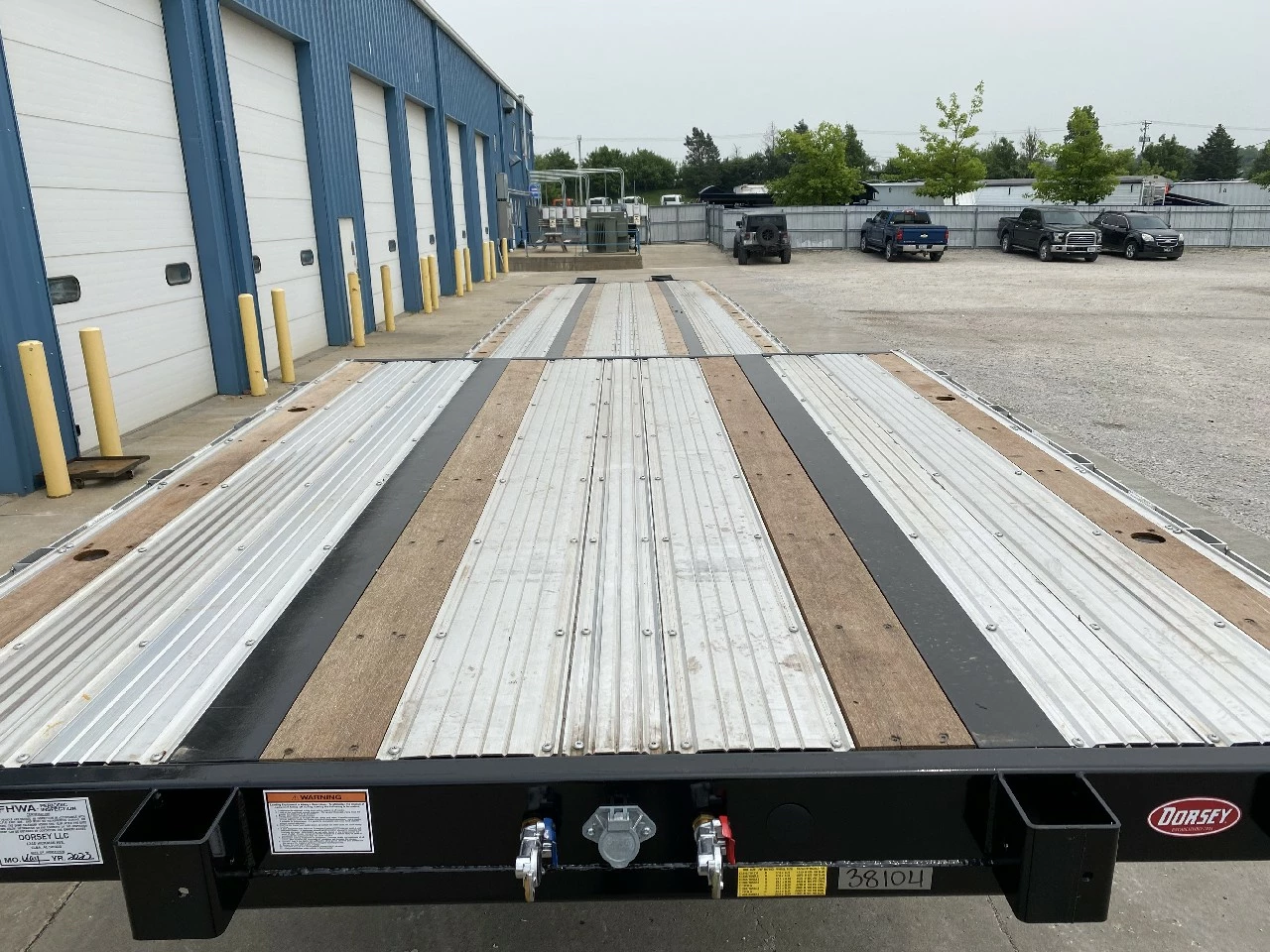

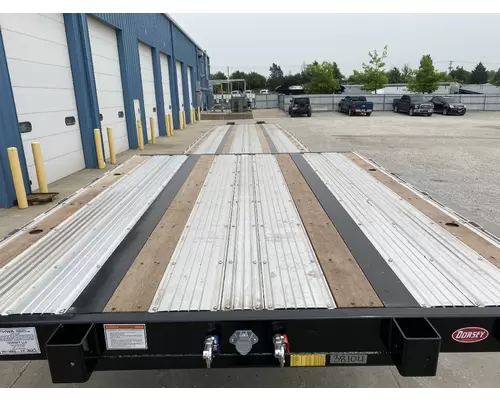

FLOOR DECKING: 1-1/8" HD Aluminum w/ (4) Nailers

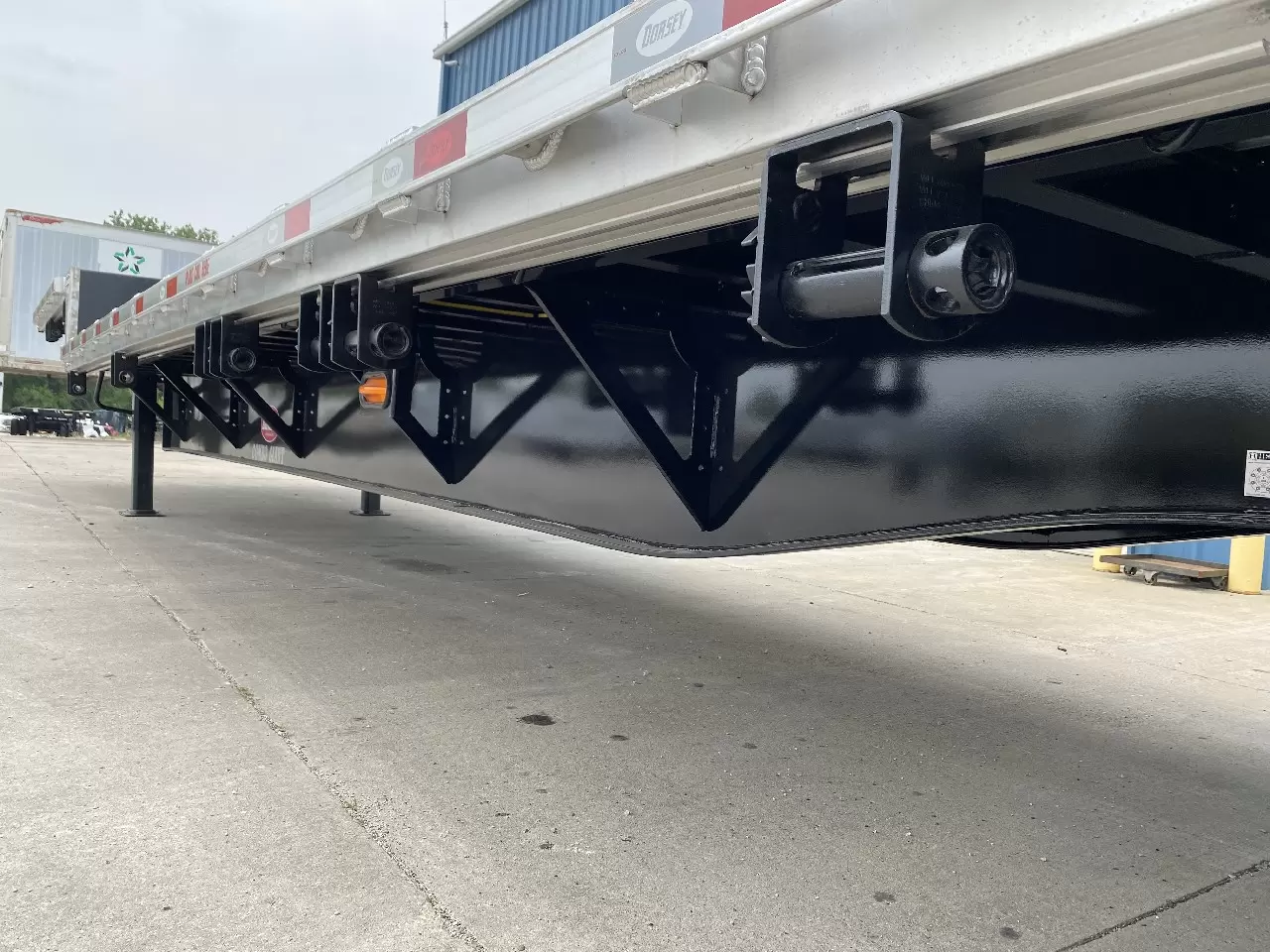

WINCHES: 12 DOUBLE L
WINCH TRACK: Double L Aluminum - Extruded Siderail R/S Only
LANDING GEAR: Two Speed
SUSPENSIONS: Air Ride
SUSPENSION LOCATION King Pin to Center of Rear Axle 43'
AXLES: (2) 25K Cap.- Type 30 Chambers - Auto Slacks - ABS - 22.5 Tires
AXLE SPACING: 10'2" Wide Spread

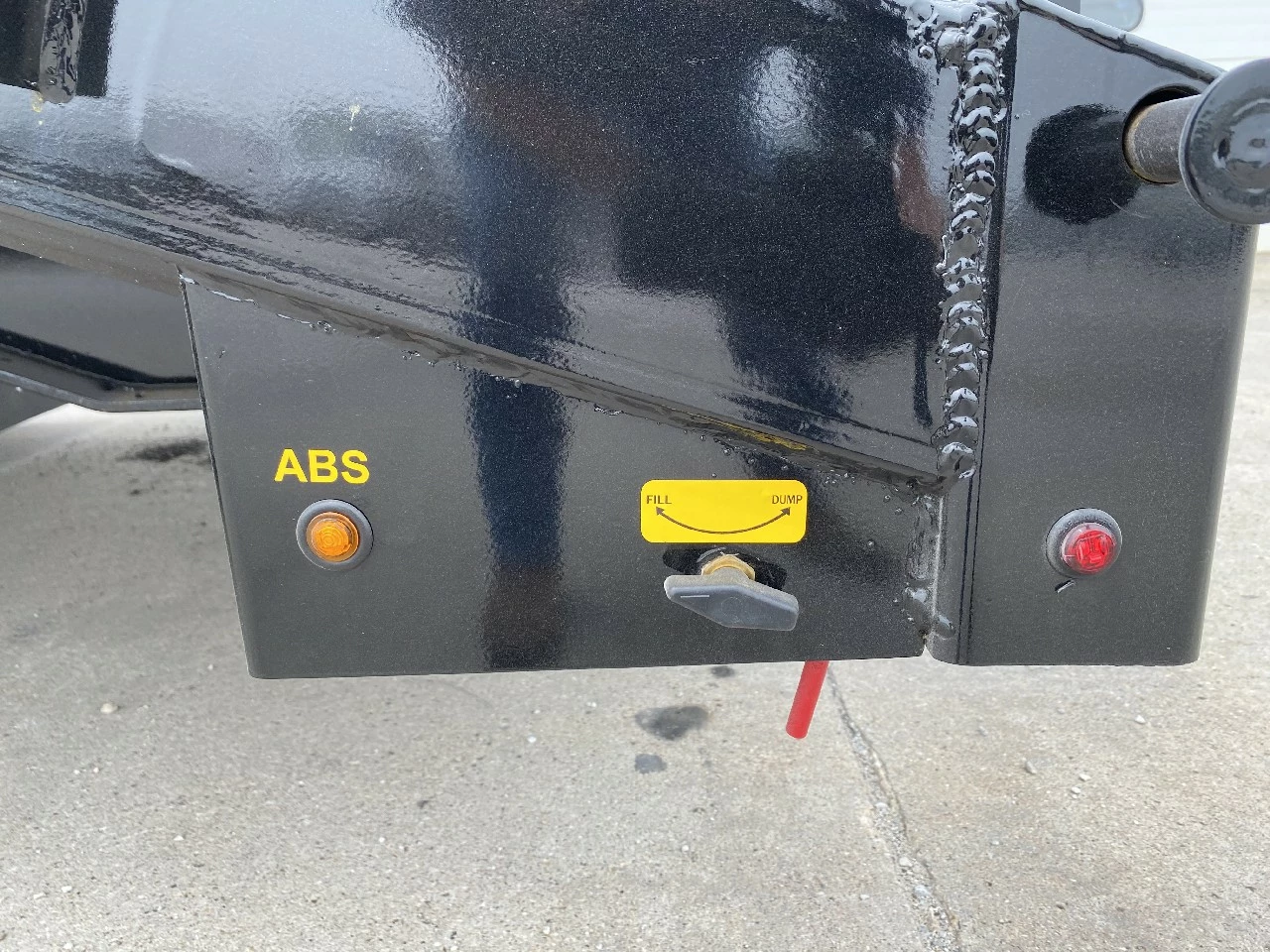

DUMP VALVE Manual - Position in Rear Skirt Gusset D/S-Dump Al Axles
PARKING BRAKES All Axles
ABS SYSTEM: ABS System 2S/1M

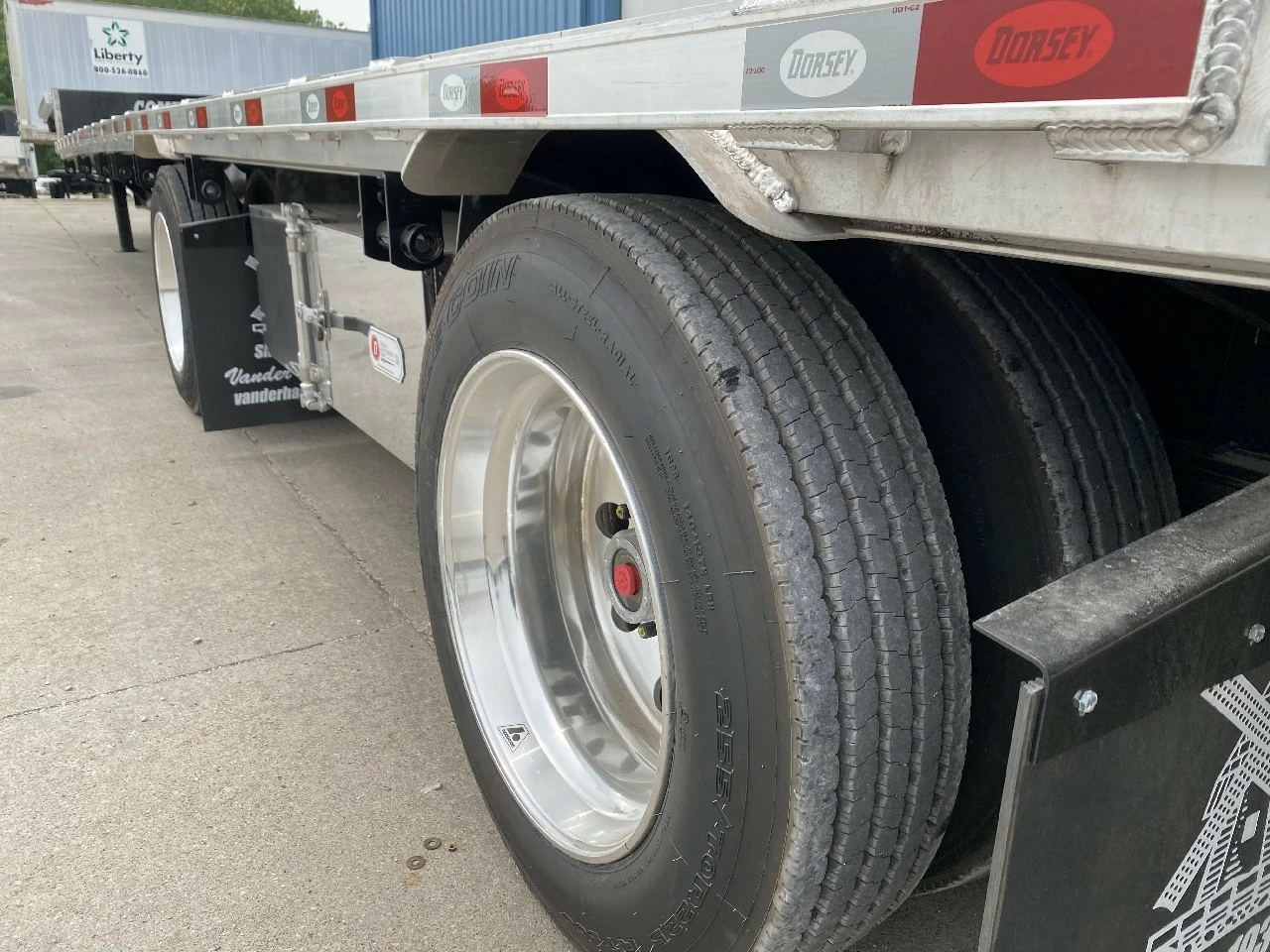

WHEELS: Disc - Hub Pilot-22.5 (2-AX)-Alum 4 Outside Wheels-(4-Steel Inside)

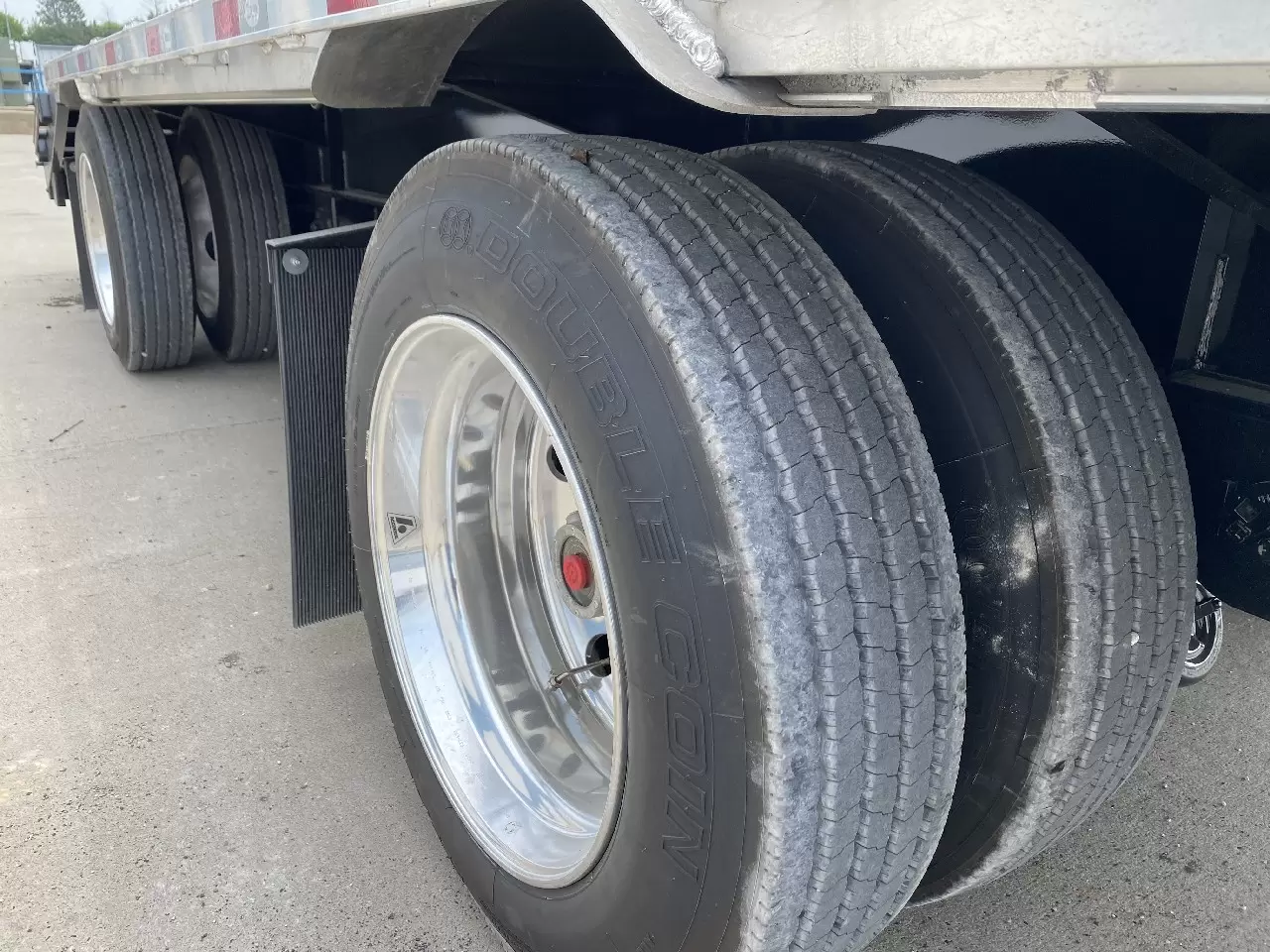

TIRES: 255/70R 22.5 - 41" Loaded Deck Height - Double Coin
STAKE POCKETS: 24" O.C. Sides
Anti-Sail MUD-FLAPS Behind All Axles
PIPE SPOOLS: Triangular Shape
CARGO TIE DOWN: Recessed Chain Tie Downs - 14 Pair
TOOLBOX MATERIAL: Aluminum Smooth Box & Smooth Door(s)
TOOLBOX TYPE 18" x18" x 60" Alum Box-Barn Style Double Door-Dia Smooth Alum Door
TOOLBOX LOCATION: Driver Side - Behind Spread
LIGHTS: Sealed Wiring Harness w/ LED Pkg

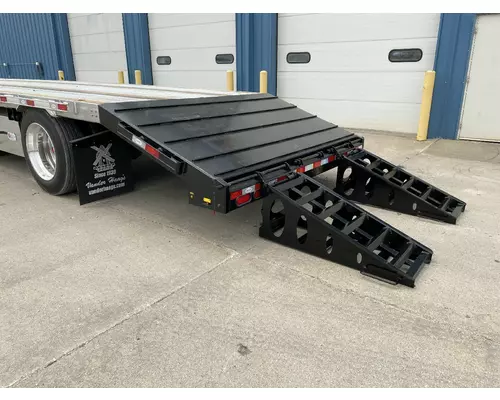

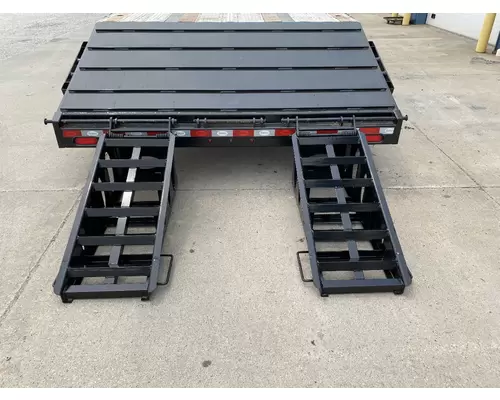

LOADING RAMPS (2) Spring Assisted
Composition: Combination
Combination: Yes
Floor Material: Aluminum
Winch Qty: 12
Coil Package
Beavertail
Ramps
Tool Boxes
