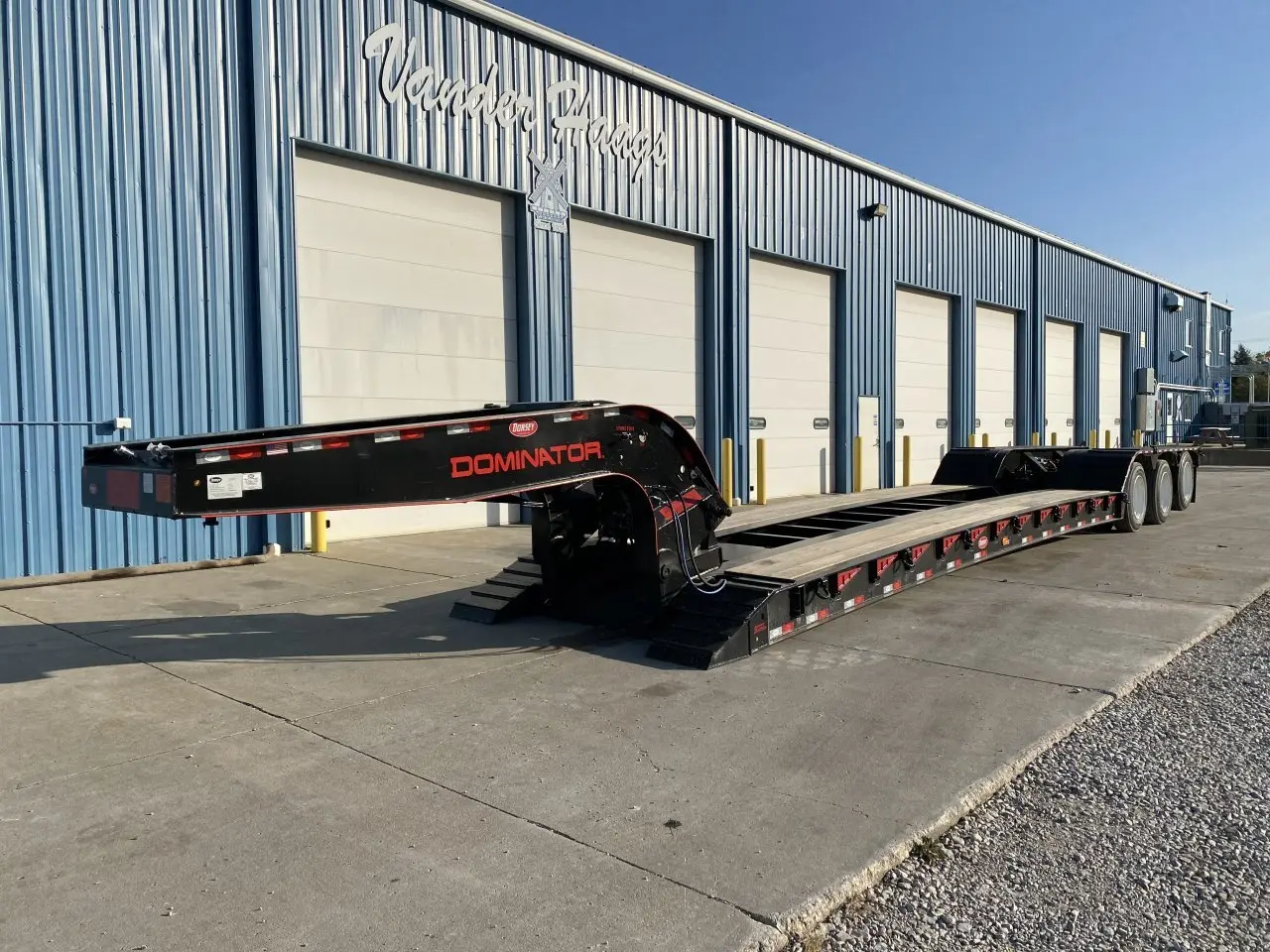

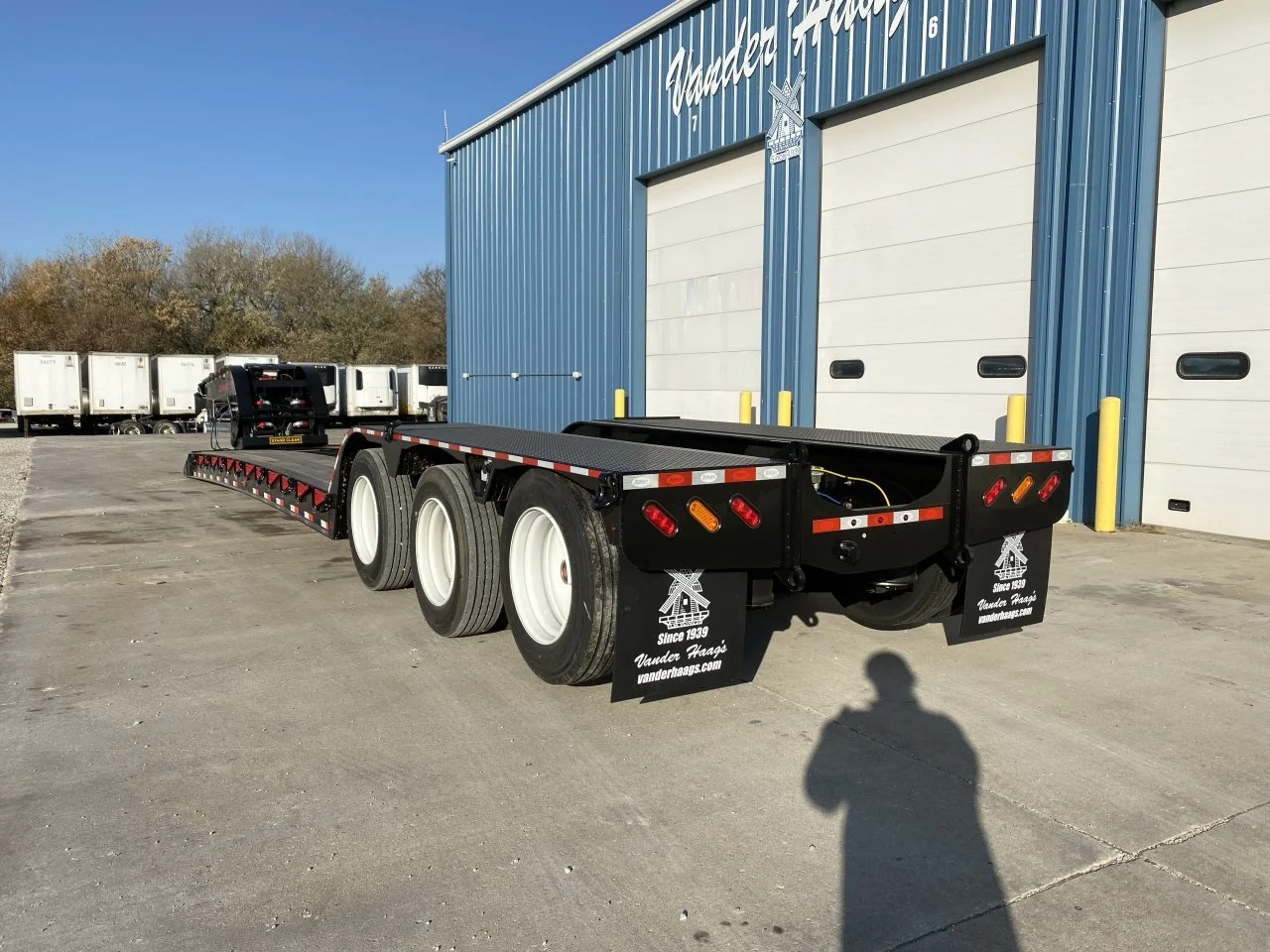

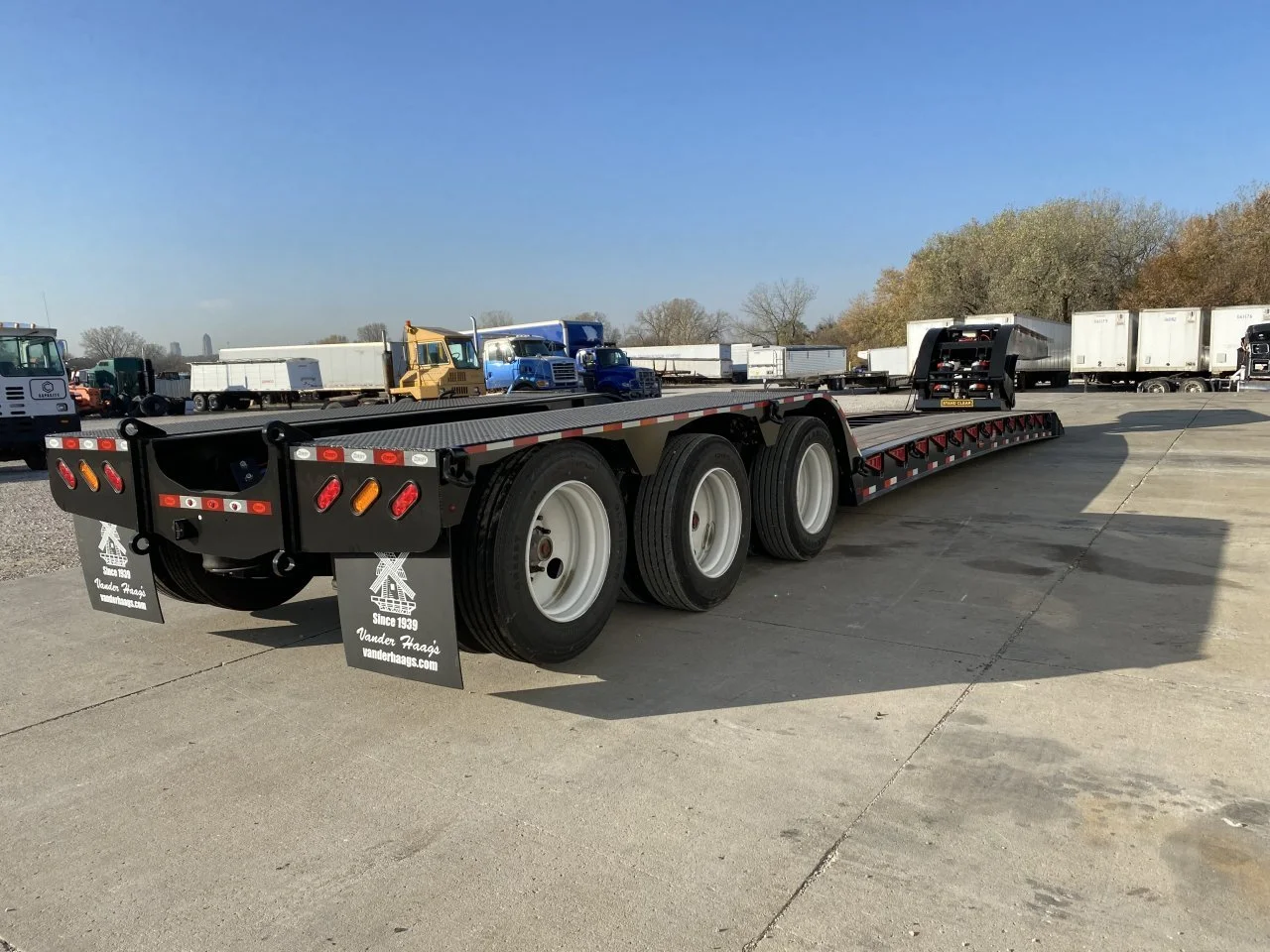

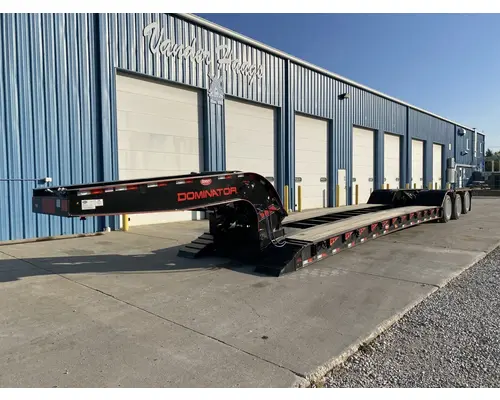

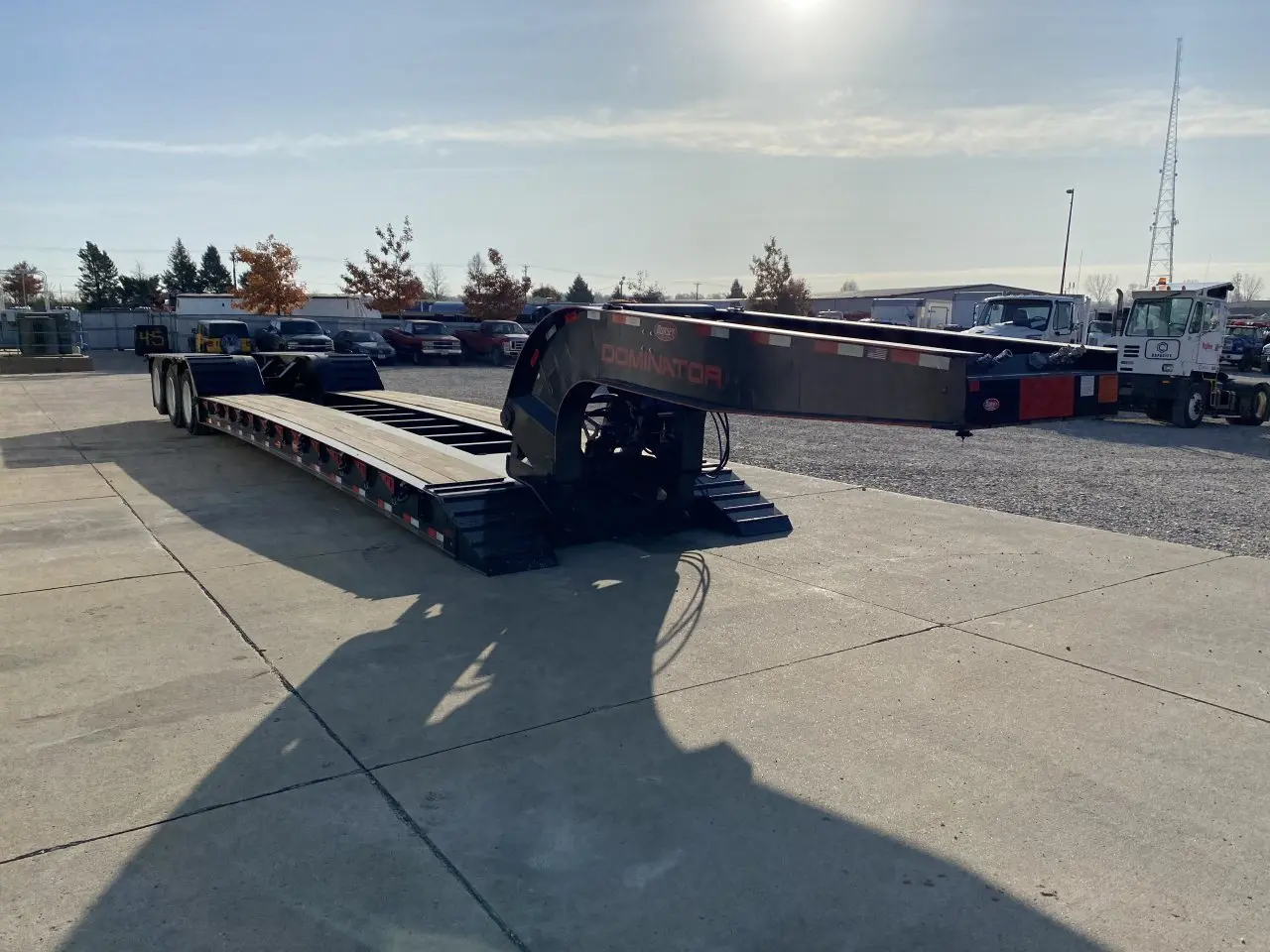

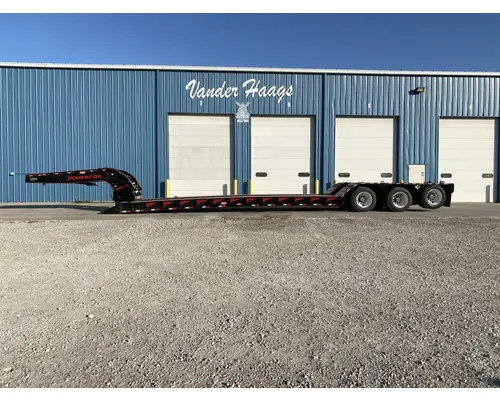

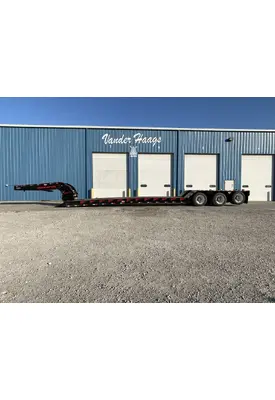

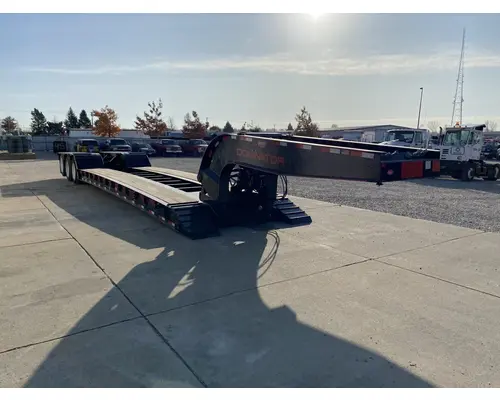

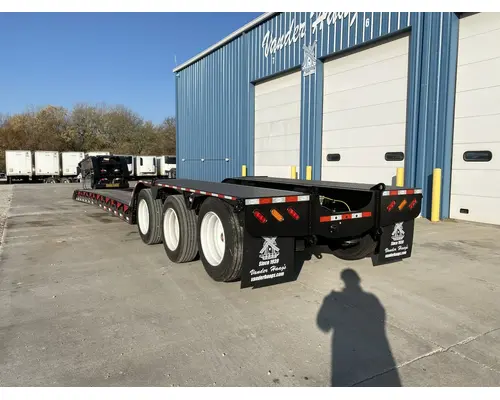

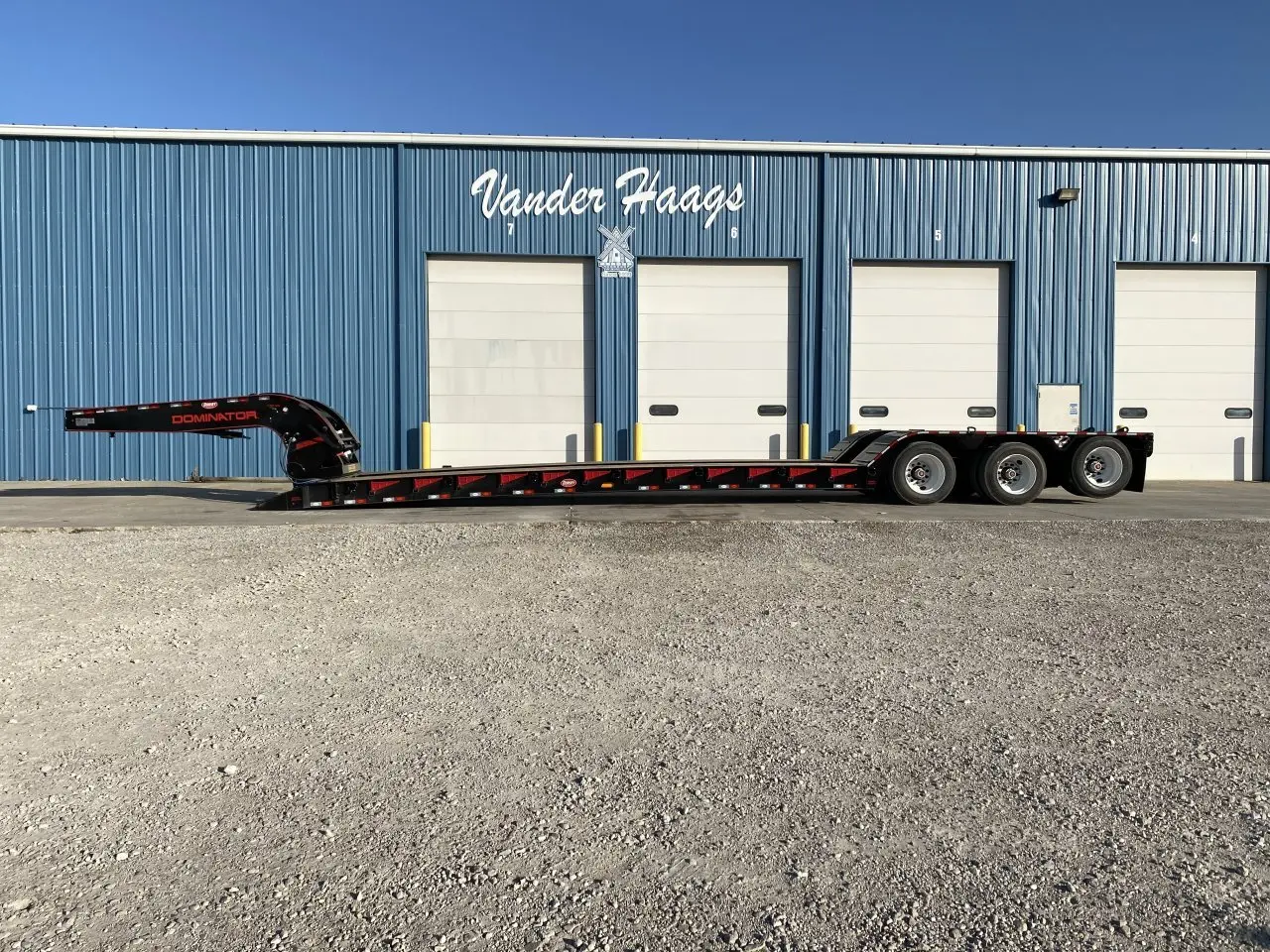

2025 Dorsey LB55-22DD Trailer

Detach/Lowboy: Detach/Lowboy Pricing is FOB the Factory and FET INCLUDED, 2024 Dorsey 53' Dominator Detachable Neck Lowboy
CAPACITY 55 Tons in 12' Concentrated Load / 55 Tons in 16' 3+1 Concentrated Load
OVERALL LENGTH 53'
OVERALL WIDTH 8' 6"
DECK LENGTH 25'
DECK HEIGHT 22" Loaded
DECK FLOORING Apitong - 1 1/2" - Covering Outside Only
MAINBEAMS 16" Fabricated I-Beams - Positive Camber
SIDE RAILS 14" Fabricated I-Beams - Positive Camber
CROSS MEMBERS 10" I-Beam on 24" Centers
GOOSENECK Non-Ground Bearing Hydraulic Detachable Neck - Set up for Wetline
KING PIN SETTING 16"
KING PIN SWING RADIUS 102" STD
KING PIN HEIGHT 50" ( 4 Postions - Deck Heights 24", 22", 20", 18")
BOOM TROUGH Open - "V" Crossmembers
FRONT LOADING RAMP None / Tapered Front Slope w/ Traction Bars
D RING 16
WIDENING BRACKET 11 Pair of 12" Brackets (extends deck width 2')
TOOL BOX Tool Box in Front of Deck with Lockable Lid
AXLE (3) 25,000 lb. Capacity w/ 54 1/2" Axle Spacings, Auto Slack,
SUSPENSION Watson - Air Ride - Lift Rear Axle
REAR AXLE FLIP: Plumbed and Pinned for 4th Axle/Available at an additional cost (Weighs 2,500 lbs)

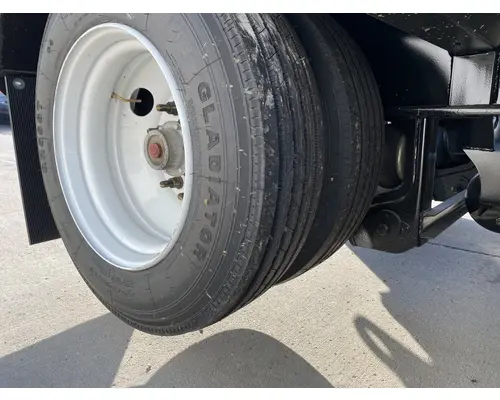

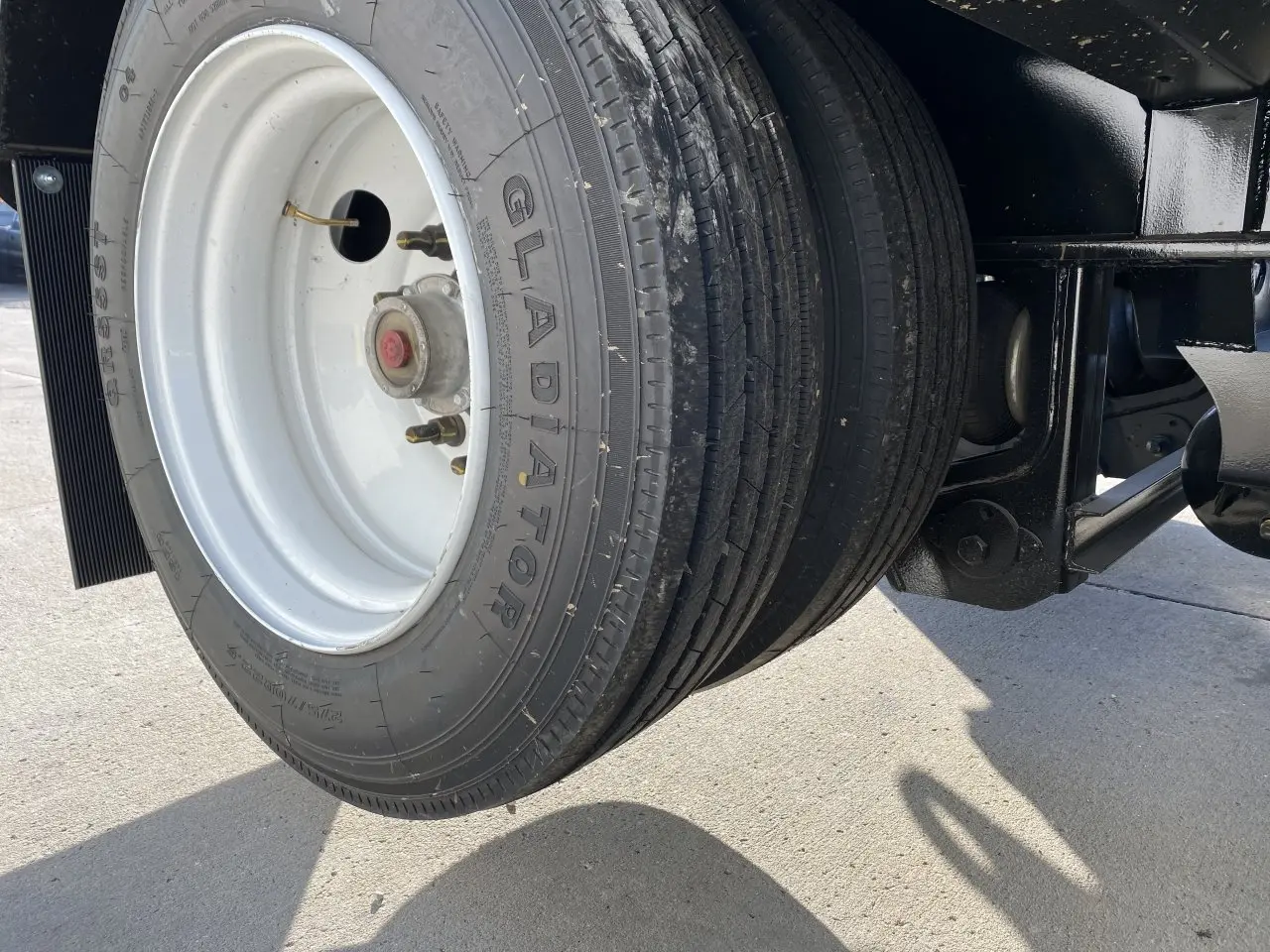

WHEELS Steel

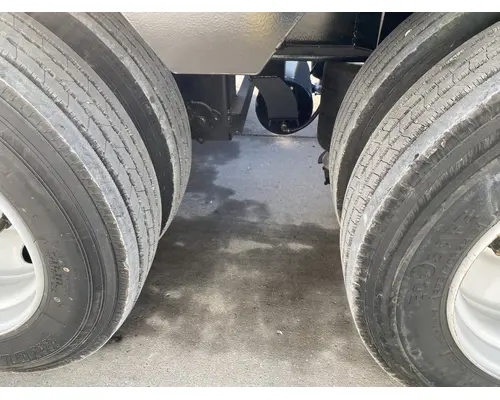

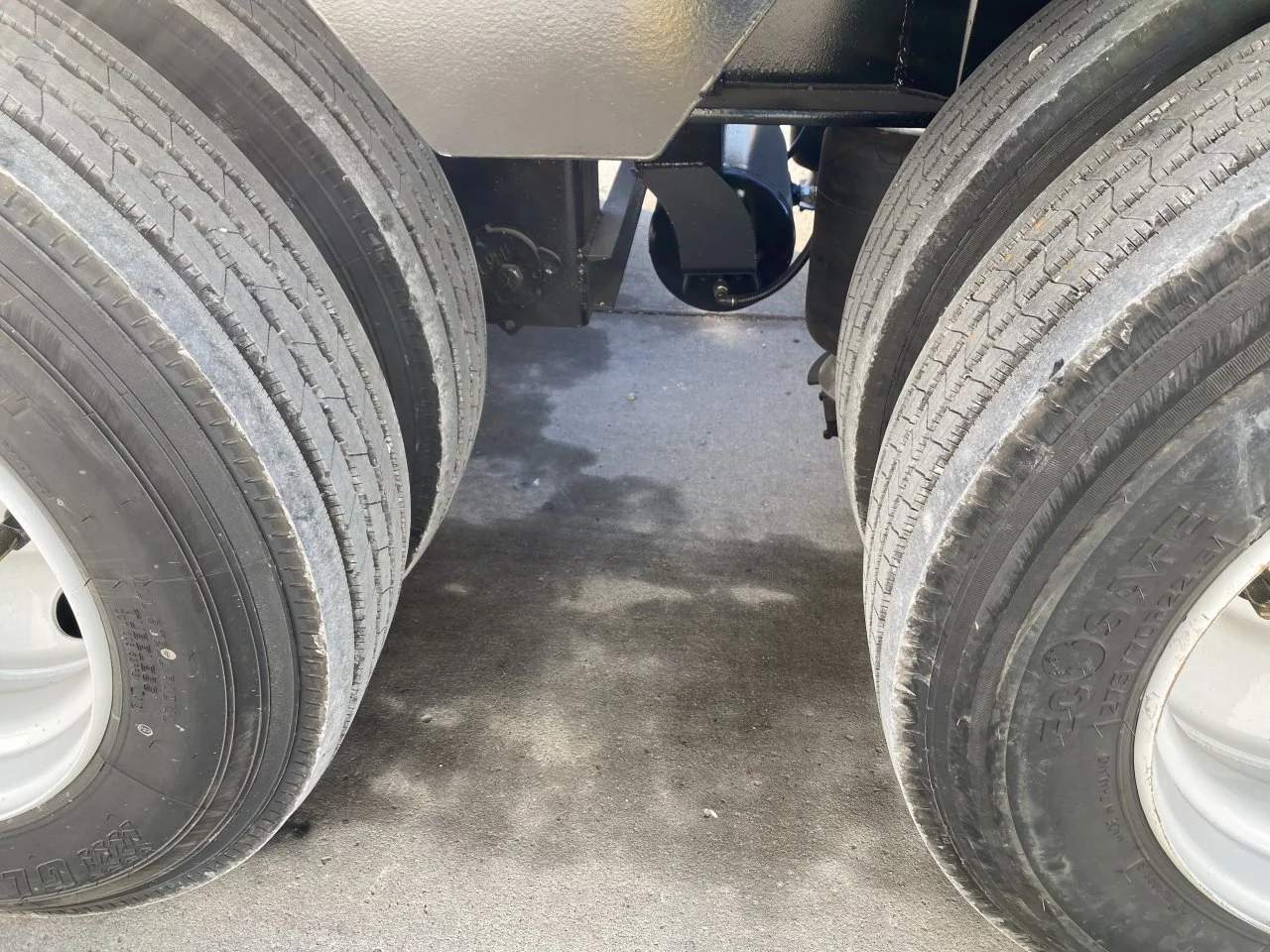

TIRES 275/70R22.5
WIRING D.O.T Sealed Wiring Harness
LIGHTS STD w/ Amber Strobes in Bumper and Battery Backup

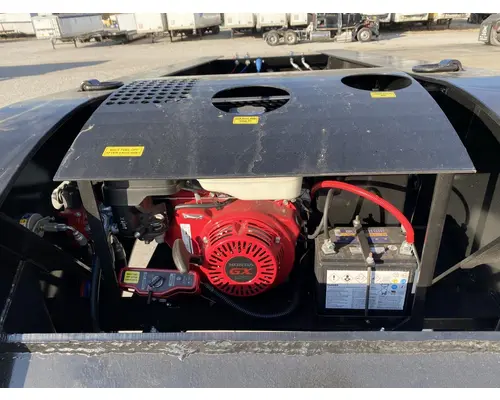

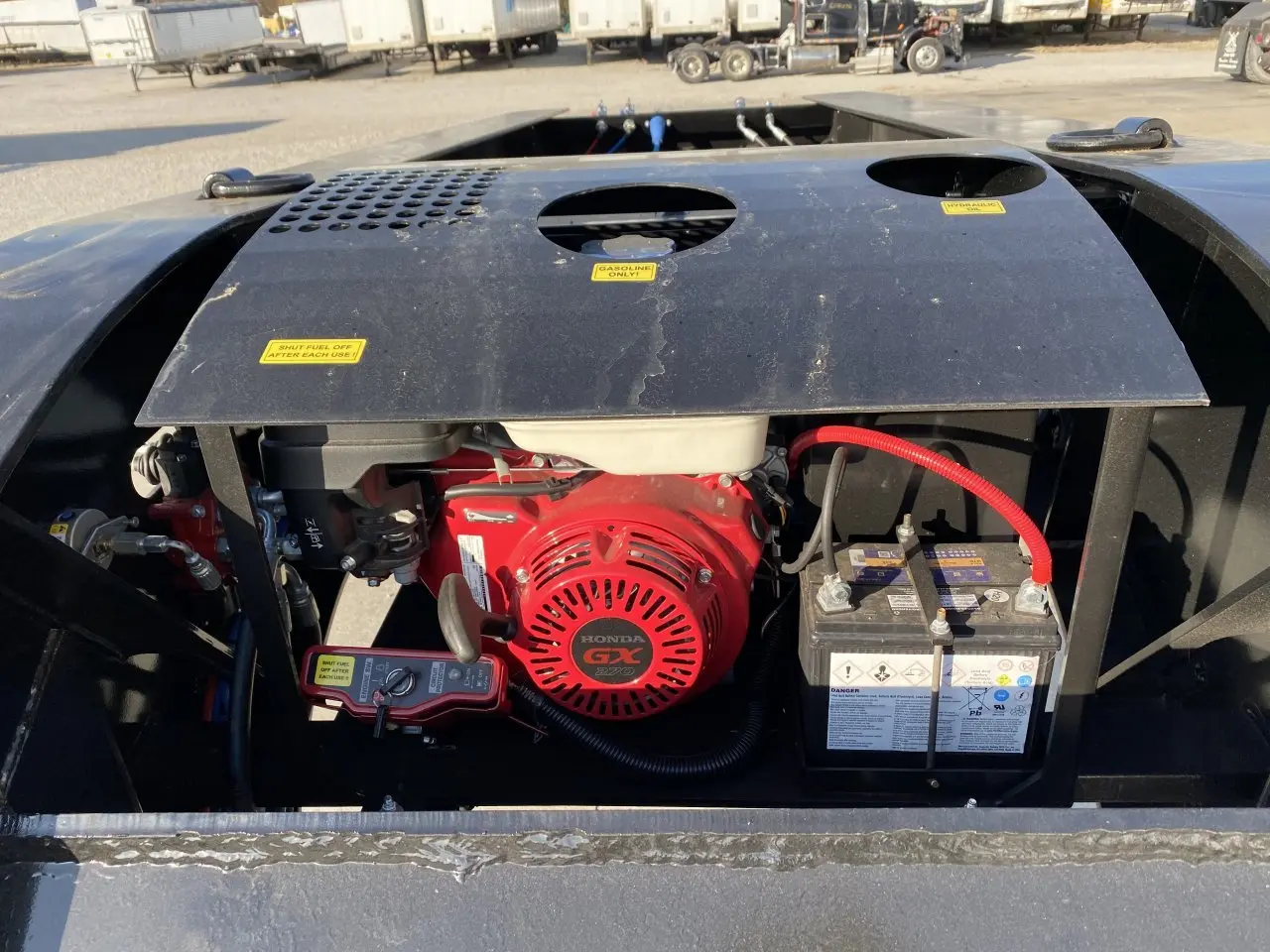

PONY MOTOR-13 HP Honda
WHEEL WELL-Covered
Composition: Steel
Floor Material: Apitong
Tonage: 55
Type: Hydraulic
Tool Boxes
Turn Outs
Pony Motor
