WEBB VARIOUS WEBB MODELS Hub

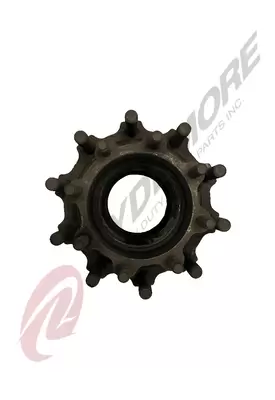

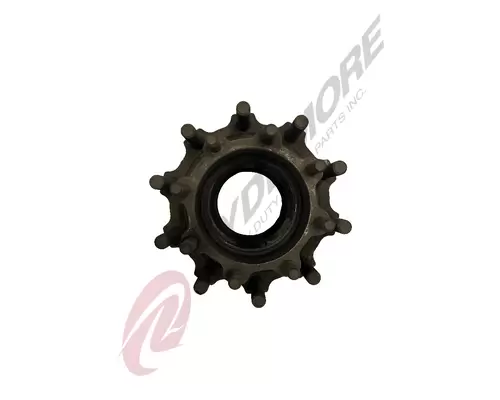

Used: Used Good used, cleaned and inspected Webb Rear Hub. Part Number: 2343

Interchange - 101268, 10082253, 4343F, 23431--1, 23431TS1, 23431TD1, 23431JA1, 23431GV1, 23431RK1, 23431RH1, 23431KA1, 23431DV1, 23432--1, 23432TS1, 23432TD1, 23432JA1, 23432GV1, 23432RK1, 23432RH1, 23432KA1, 23432DV1, 23435--1, 23435TS1, 23435TD1, 23435JA1, 23435GV1, 23435RK1, 23435RH1, 23435KA1, 23435DV1, 23431--2, 23431TS2, 23431TD2, 23431JA2, 23431GV2, 23431RK2, 23431RH2, 23431KA2, 23431DV2, 23432--2, 23432TS2, 23432TD2, 23432JA2, 23432GV2, 23432RK2, 23432RH2, 23432KA2, 23432DV2, 23435--2, 23435TS2, 23435TD2, 23435JA2, 23435GV2, 23435RK2, 23435RH2, 23435KA2, 23435DV2, 23431--3, 23431TS3, 23431TD3, 23431JA3, 23431GV3, 23431RK3, 23431RH3, 23431KA3, 23431DV3, 23432--3, 23432TS3, 23432TD3, 23432JA3, 23432GV3, 23432RK3, 23432RH3, 23432KA3, 23432DV3, 23435--3, 23435TS3, 23435TD3, 23435JA3, 23435GV3, 23435RK3, 23435RH3, 23435KA3, 23435DV3, 23431--4, 23431TS4, 23431TD4, 23431JA4, 23431GV4, 23431RK4, 23431RH4, 23431KA4, 23431DV4, 23432--4, 23432TS4, 23432TD4, 23432JA4, 23432GV4, 23432RK4, 23432RH4, 23432KA4, 23432DV4, 23435--4, 23435TS4, 23435TD4, 23435JA4, 23435GV4, 23435RK4, 23435RH4, 23435KA4, 23435DV4, 23431--5, 23431TS5, 23431TD5, 23431JA5, 23431GV5, 23431RK5, 23431RH5, 23431KA5, 23431DV5, 23432--5, 23432TS5, 23432TD5, 23432JA5, 23432GV5, 23432RK5, 23432RH5, 23432KA5, 23432DV5, 23435--5, 23435TS5, 23435TD5, 23435JA5, 23435GV5, 23435RK5, 23435RH5, 23435KA5, 23435DV5, 23431--6, 23431TS6, 23431TD6, 23431JA6, 23431GV6, 23431RK6, 23431RH6, 23431KA6, 23431DV6, 23432--6, 23432TS6, 23432TD6, 23432JA6, 23432GV6, 23432RK6, 23432RH6, 23432KA6, 23432DV6, 23435--6, 23435TS6, 23435TD6, 23435JA6, 23435GV6, 23435RK6, 23435RH6, 23435KA6, 23435DV6, 23431--7, 23431TS7, 23431TD7, 23431JA7, 23431GV7, 23431RK7, 23431RH7, 23431KA7, 23431DV7, 23432--7, 23432TS7, 23432TD7, 23432JA7, 23432GV7, 23432RK7, 23432RH7, 23432KA7, 23432DV7, 23435--7, 23435TS7, 23435TD7, 23435JA7, 23435GV7, 23435RK7, 23435RH7, 23435KA7, 23435DV7, 23431--8, 23431TS8, 23431TD8, 23431JA8, 23431GV8, 23431RK8, 23431RH8, 23431KA8, 23431DV8, 23432--8, 23432TS8, 23432TD8, 23432JA8, 23432GV8, 23432RK8, 23432RH8, 23432KA8, 23432DV8, 23435--8, 23435TS8, 23435TD8, 23435JA8, 23435GV8, 23435RK8, 23435RH8, 23435KA8, 23435DV8

"T" at end of Part Number dictates ABS (100 Teeth)

FITS:

ROCKWELL: TP

DANA SPICER (EATON): P-22, 225P, 230P

FRUEHAUF: PRO-PAR

HENDRICKSON - HP

INGERSOLL: A24H, A24S, F24

Overall Length (with ABS Teeth): 8.15

Outer Hubcap Face to inner Brg. Cup Seat: 5.95

Distance Between Cups: 4.5

Inner Cup to Mounting Face:
Cast Drum - 1.79

Steel Shell Drum - 1.54

Bolt Circle Diameter: 11.25

Wheel Stud Qty./Thread Diameter: (10) M22 x 1.5

Hubcap Hole Pattern: 6 Holes 0.31 Dia.
