Engine Assembly

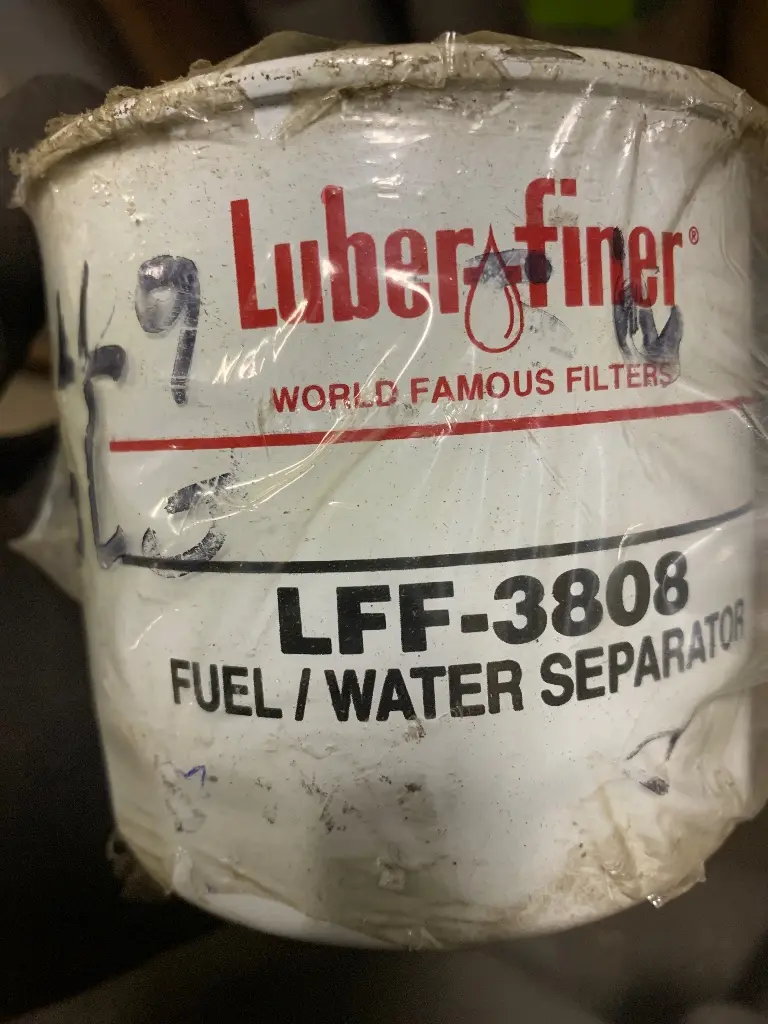

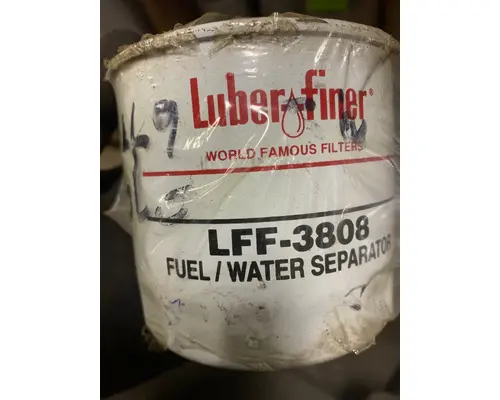

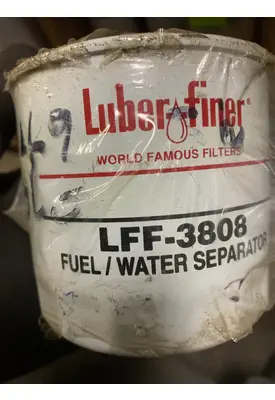

Luber-Finer Fuel/water Separator
Part Number : LFF3808
Donaldson Cross Reference Filter P/N : P550677
Outer Diameter : 3.69 inch (93.73 mm)

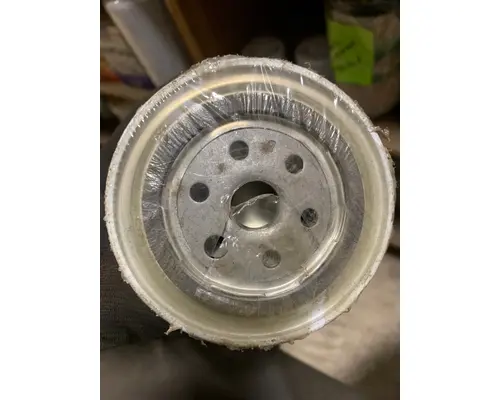

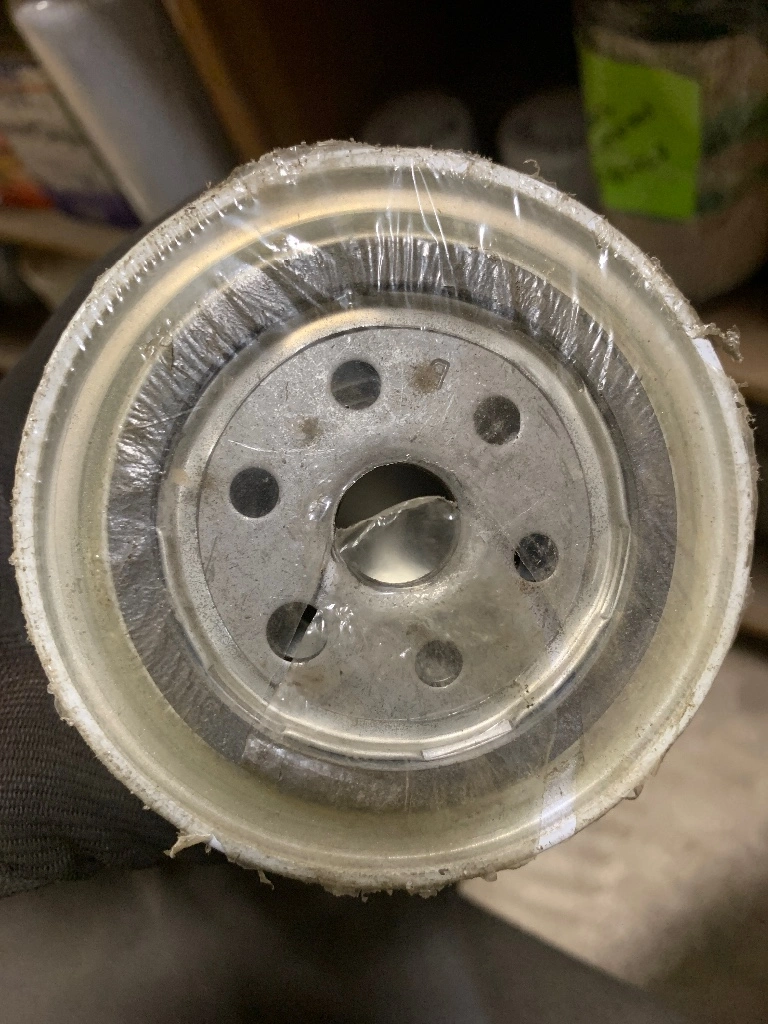

Thread Size : 11/16-16 UN
Length : 4.36 inch (110.74 mm)
Gasket OD : 2.83 inch (71.88 mm)
Gasket ID : 2.46 inch (62.48 mm)
Efficiency 50% : 14 micron
Efficiency Test Std : SAE J1985
Emulsified H2O Efficiency : 95.00 Percent
Collapse Burst : 75 psi (5.2 bar)
Type : Water Separator
Style : Spin-On
