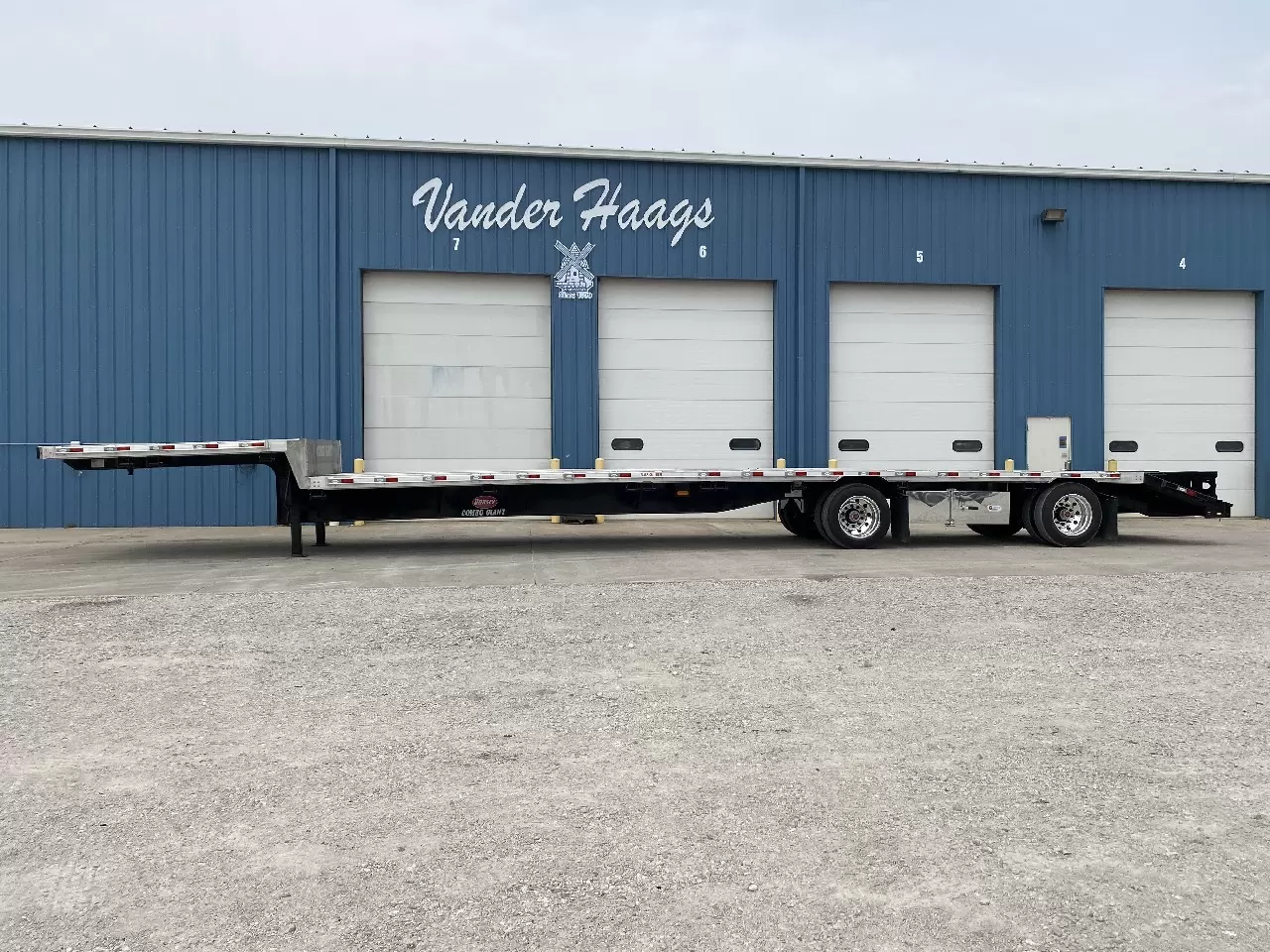

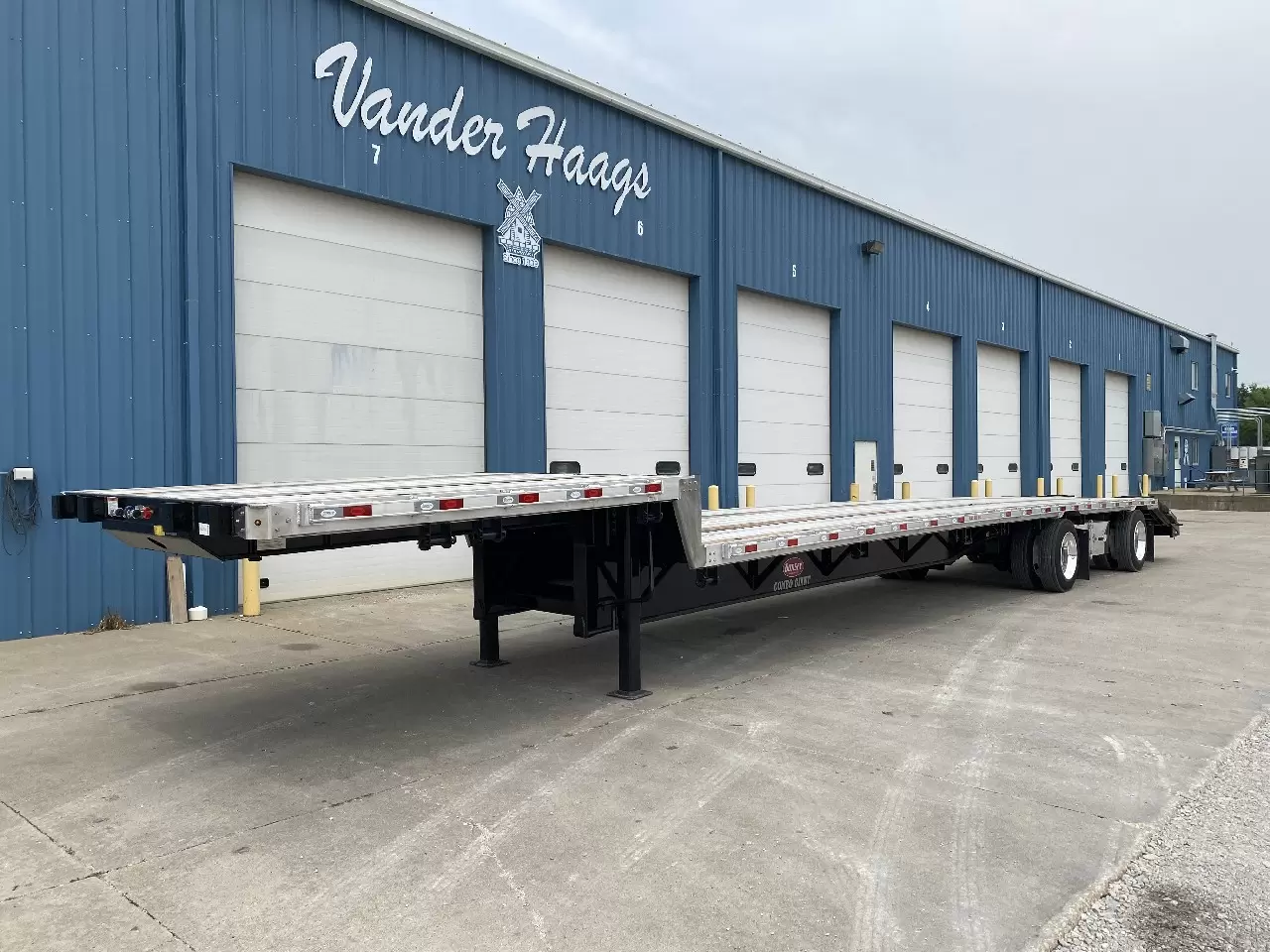

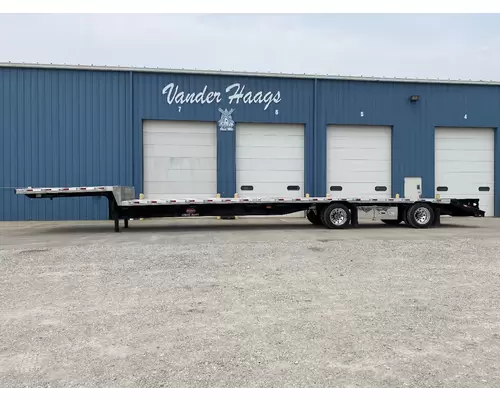

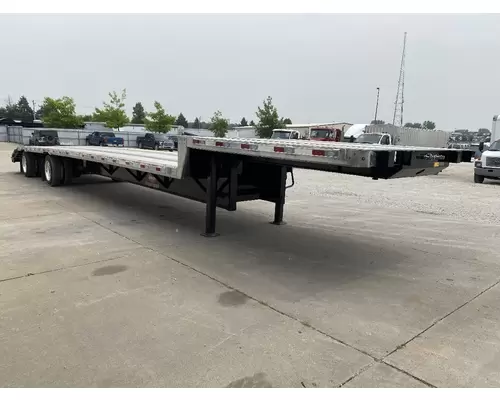

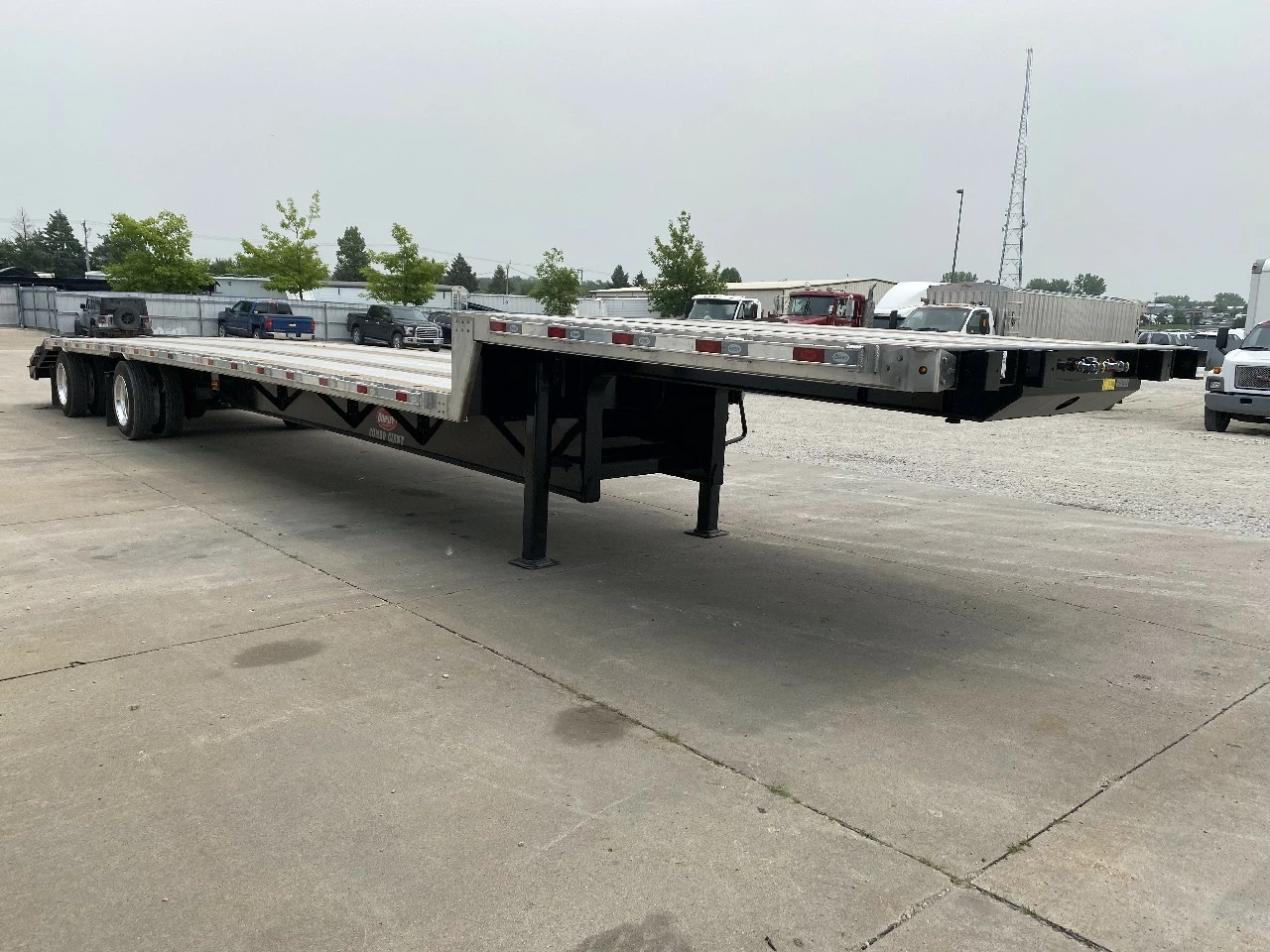

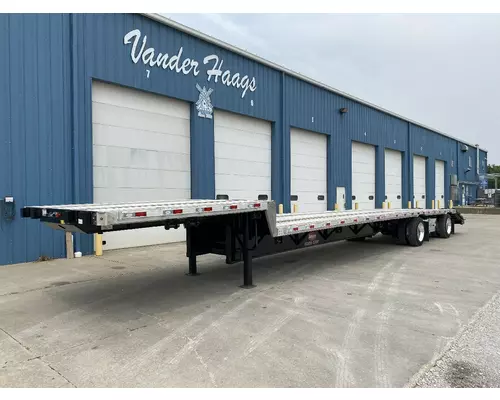

2024 Dorsey DC53-BTR Trailer

Drop Deck: Drop Deck FET INCLUDED and Priced FOB the Factory
CAPACITY Standard Beam Pkg - 80,000 GVWR (60,000 in 10' Span)
OVERALL LENGTH 53' - Base Weight 13,000# - Including Beavertail
UPPER DECK LENGTH 10'6"
LOWER DECK LENGTH 38'1"
STEEL FRONT - 4 POCKETS
DOVETAIL 53.13" - Steel Smooth Plate & Traction Bars
OVERALL WIDTH 102"
KING PIN SETTING 24" - Tapered Front

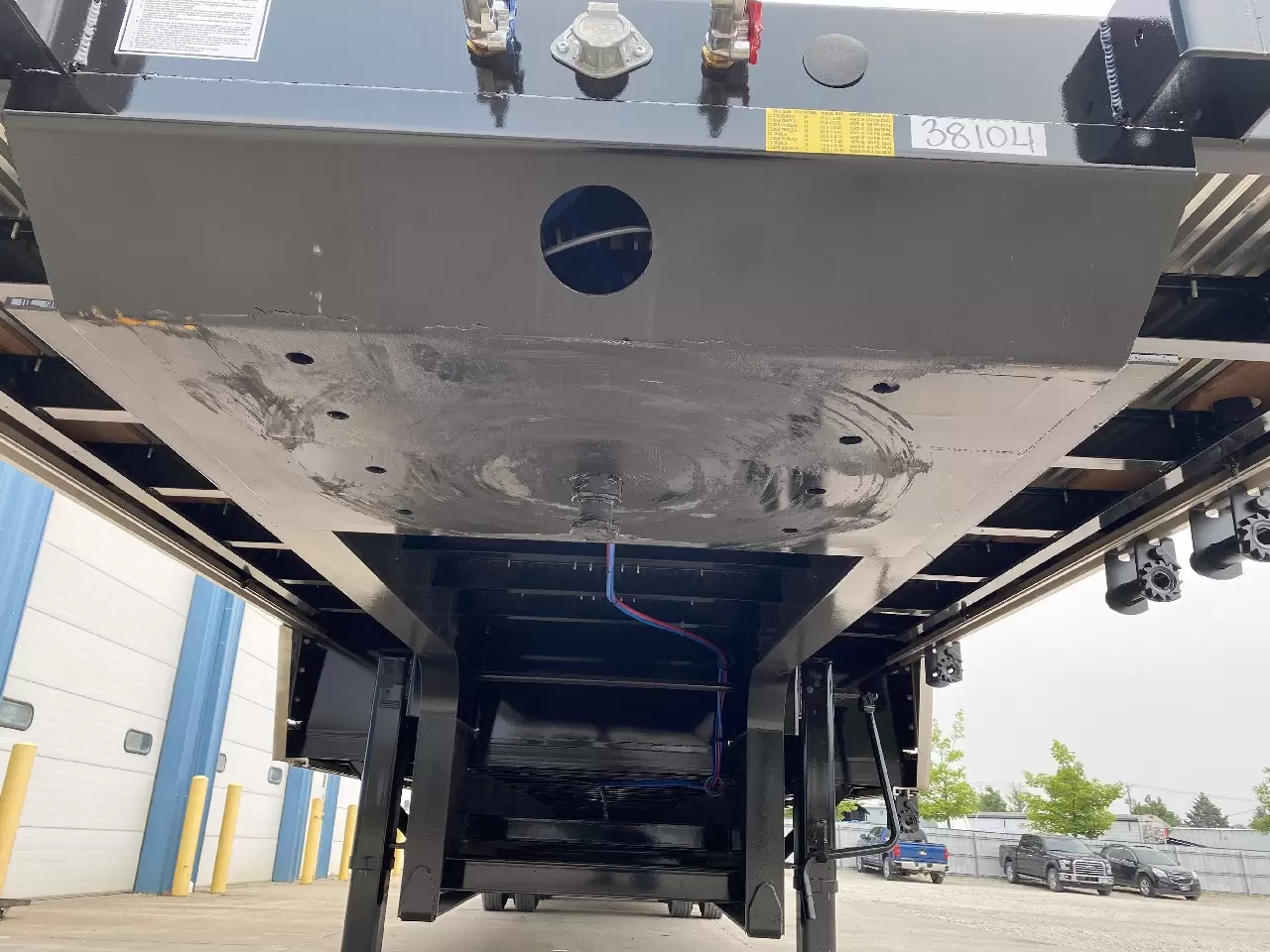

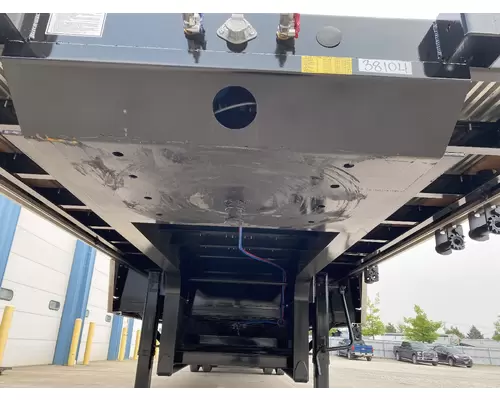

UPPER COUPLER PLATE 1/4"
UPPER COUPLER HEIGHT 48"

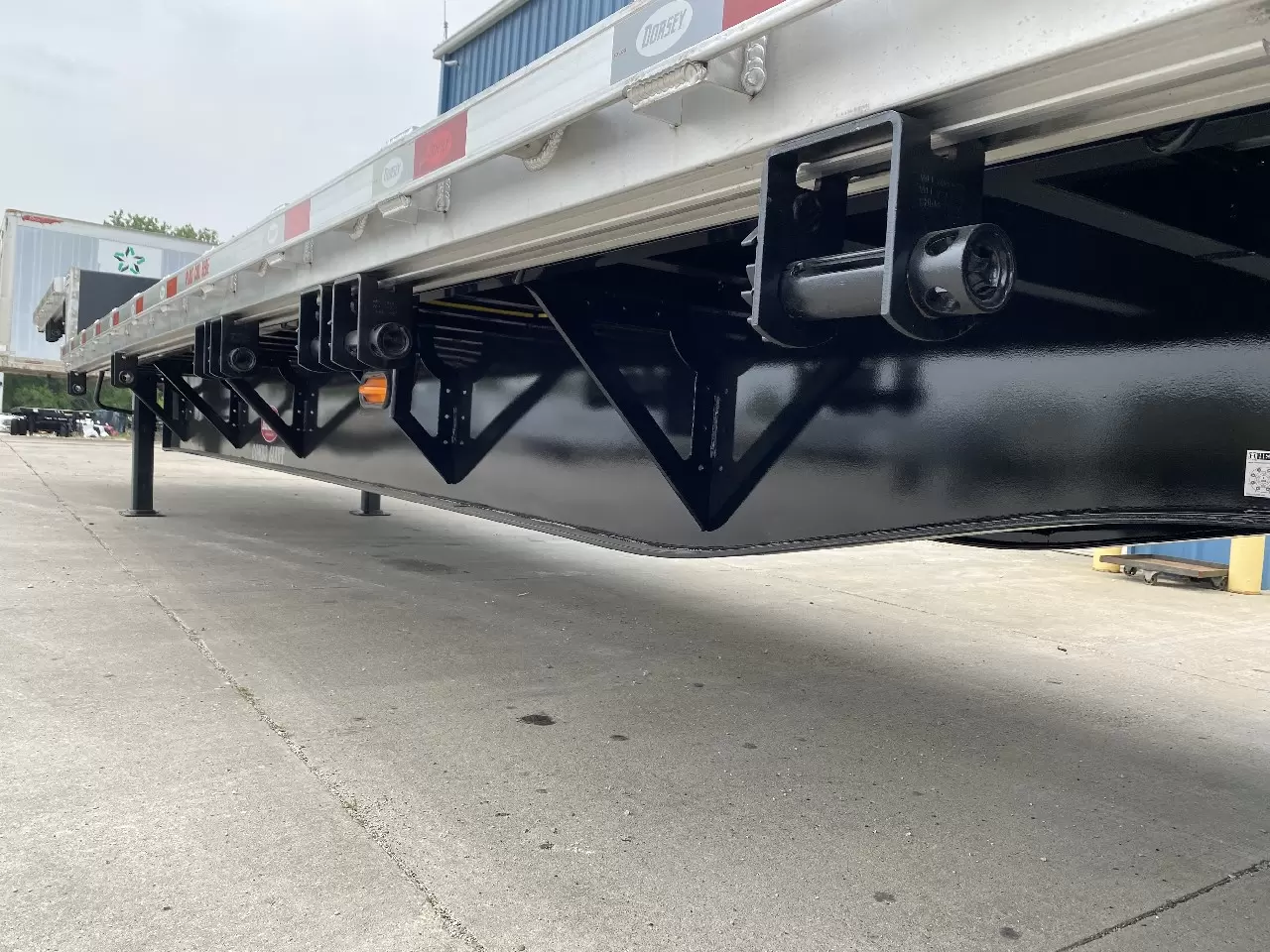

MAINFRAME 26" Fab.-PreCamb.I-Beams-(80K Pkg 3/8"x 5" Top & 1/2" x 5" Bottom & 3/16" Web)
SIDE RAILS 6"-Alum-Extruded W/Double L Track

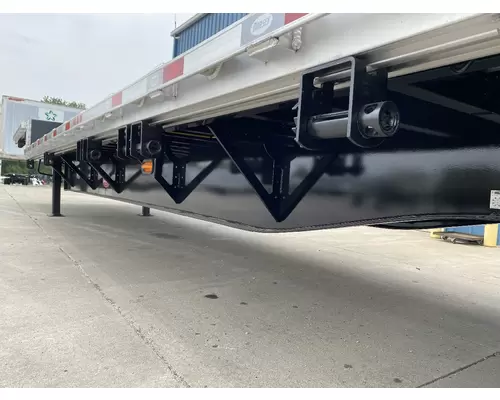

TOP DECK FLOOR SILLS 4" Steel I-Beam - 18" O.C.
LOWER DECK FLOOR SILLS 4" Steel I-Beam 12" O.C. HD Pkg
COIL HAUL PACKAGE Single Coil Placement - 5 Extra Stud Sills-Ctr On Trailer

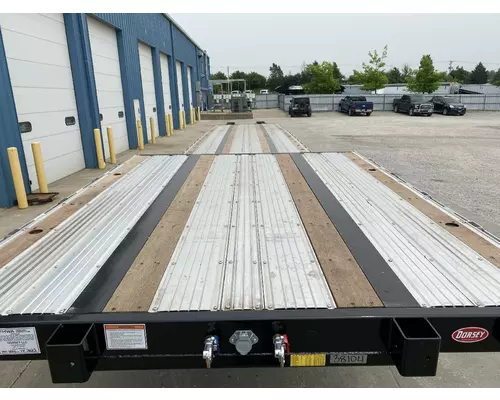

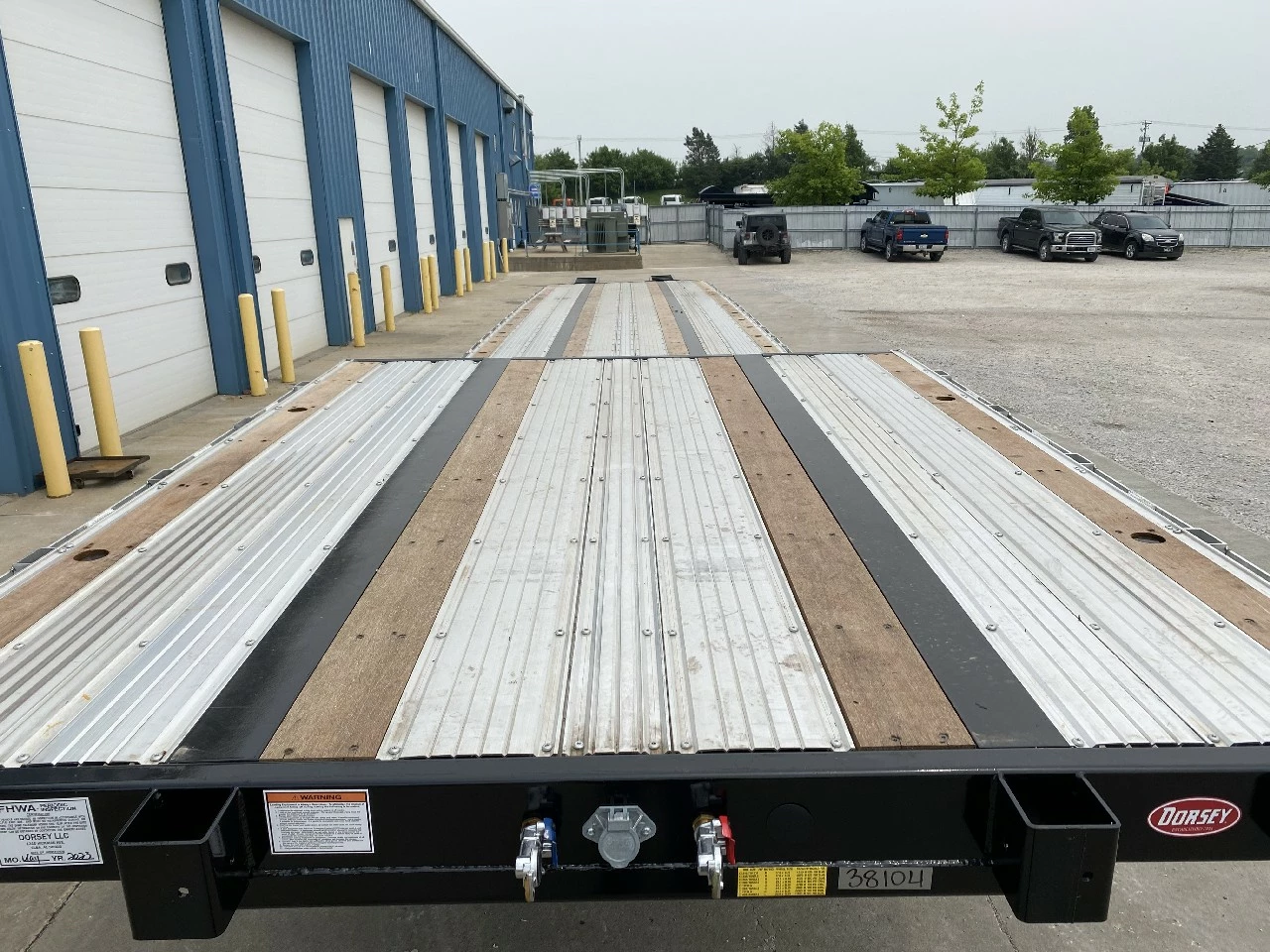

FLOOR DECKING 1-1/8" HD Aluminum w/ 4 Nailers
WINCHES 12 Double L
WINCH TRACK Double L Aluminum - Extruded Siderail R/S Only
LANDING GEAR Two Speed
SUSPENSIONS Air Ride - Hendrickson intraax - 25K - 2 Axles
SUSPENSION LOCATION King Pin to Center of Rear Axle 43'
AXLES (2) 25K Capacity - Type 30 Chambers - Auto Slacks - ABS - 22.5 Tires (1463#)
AXLE SPACING 10'2" Wide Spread

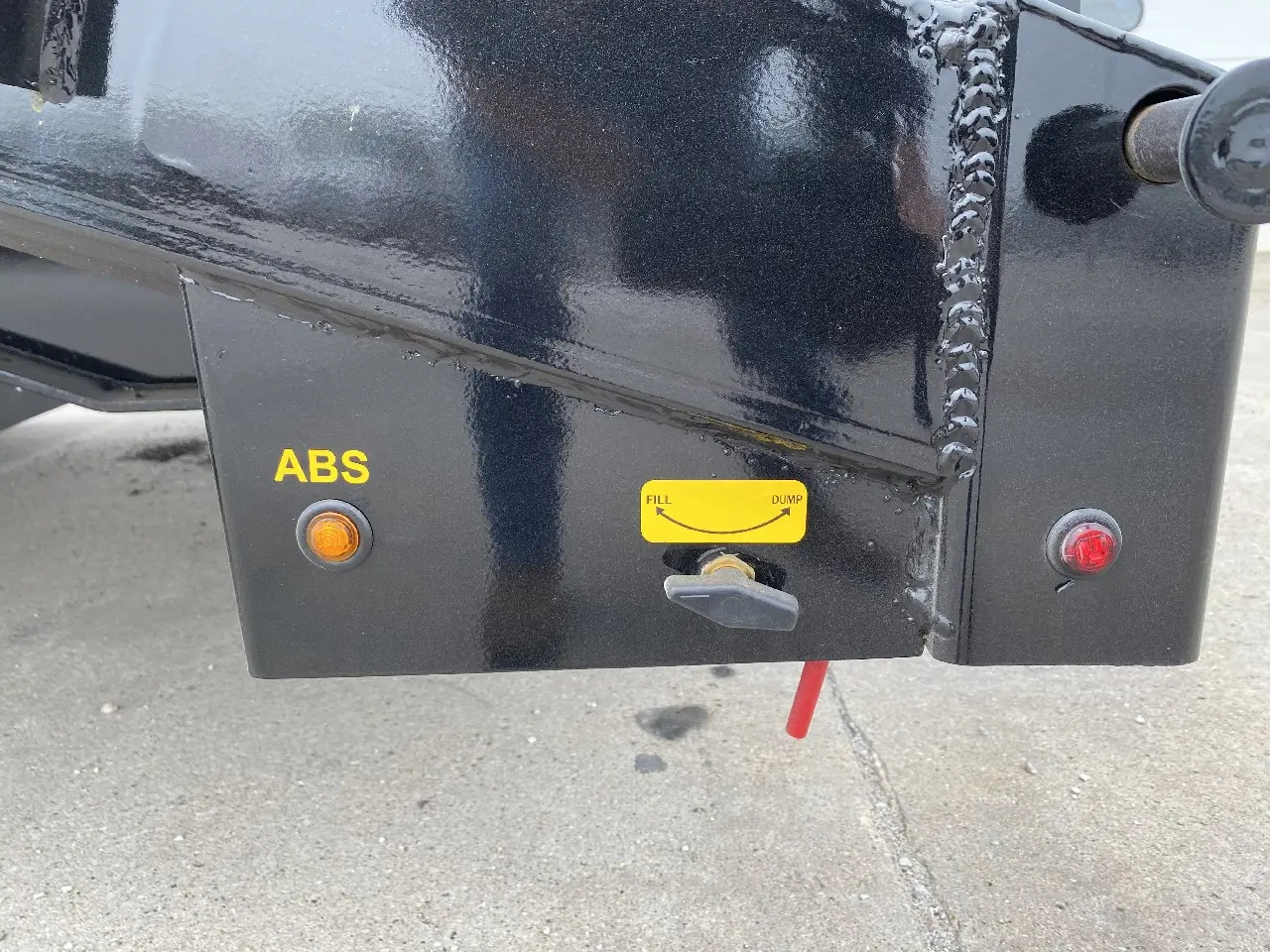

DUMP VALVE Manual-Position In Rear Skirt Gusset D/S-Dump All Axles
LIFT AXLE None
PARKING BRAKES All Axles

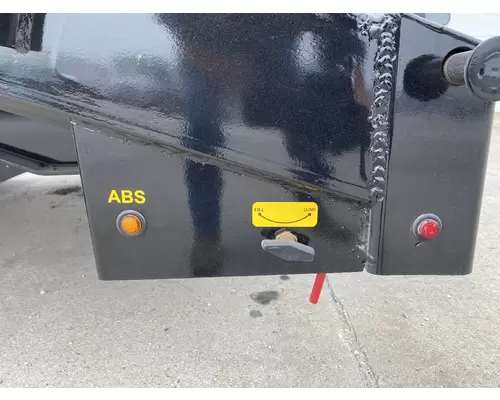

ABS SYSTEM ABS System 2S/1M

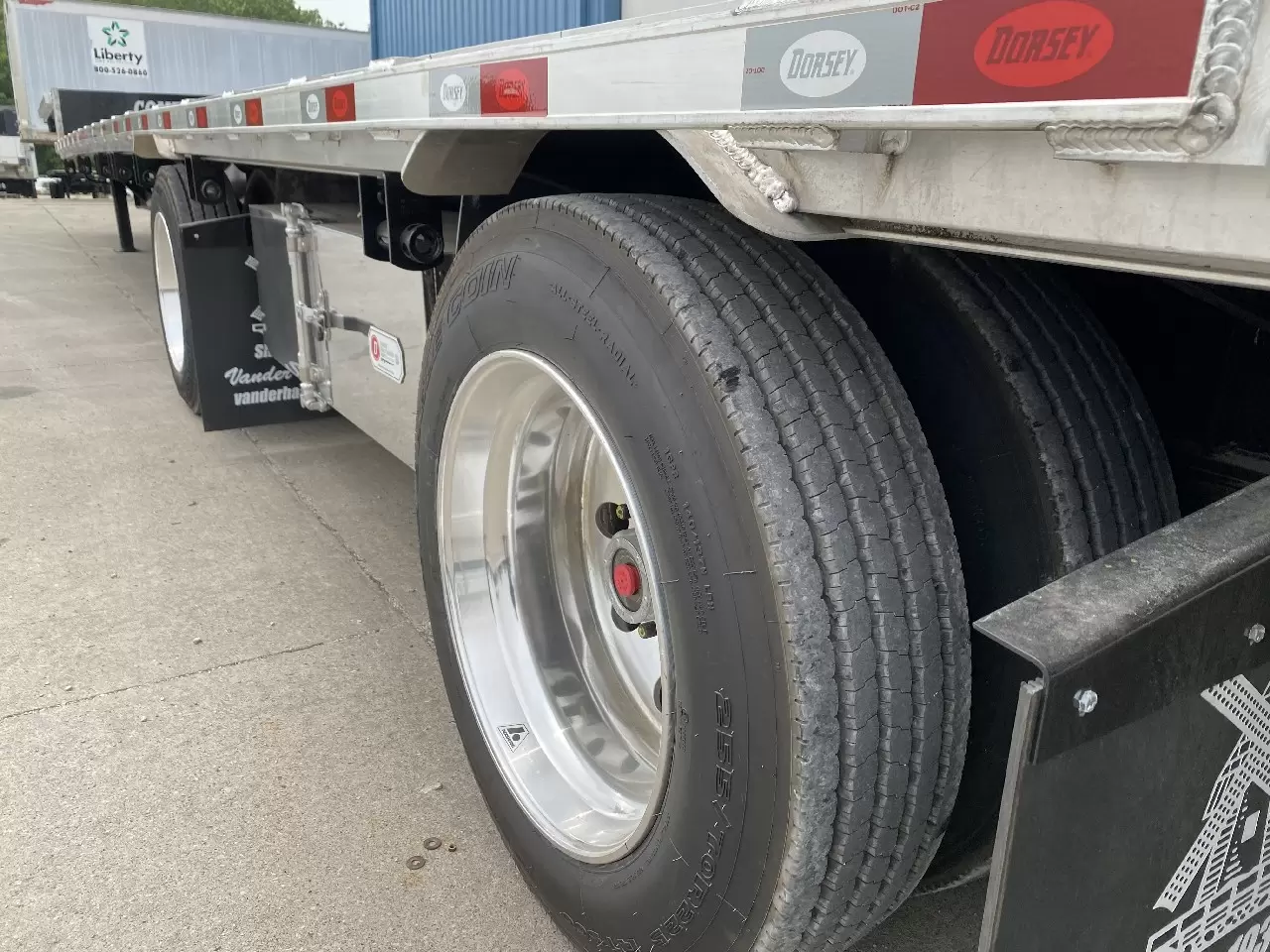

WHEELS Disc - Hub Piloted - 22.5- Steel, Outer Aluminum

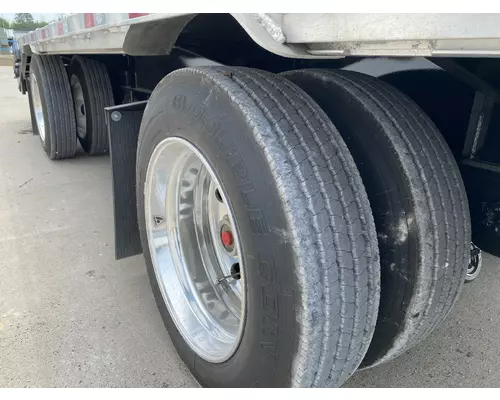

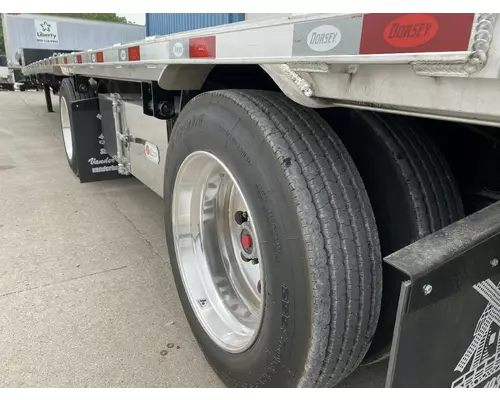

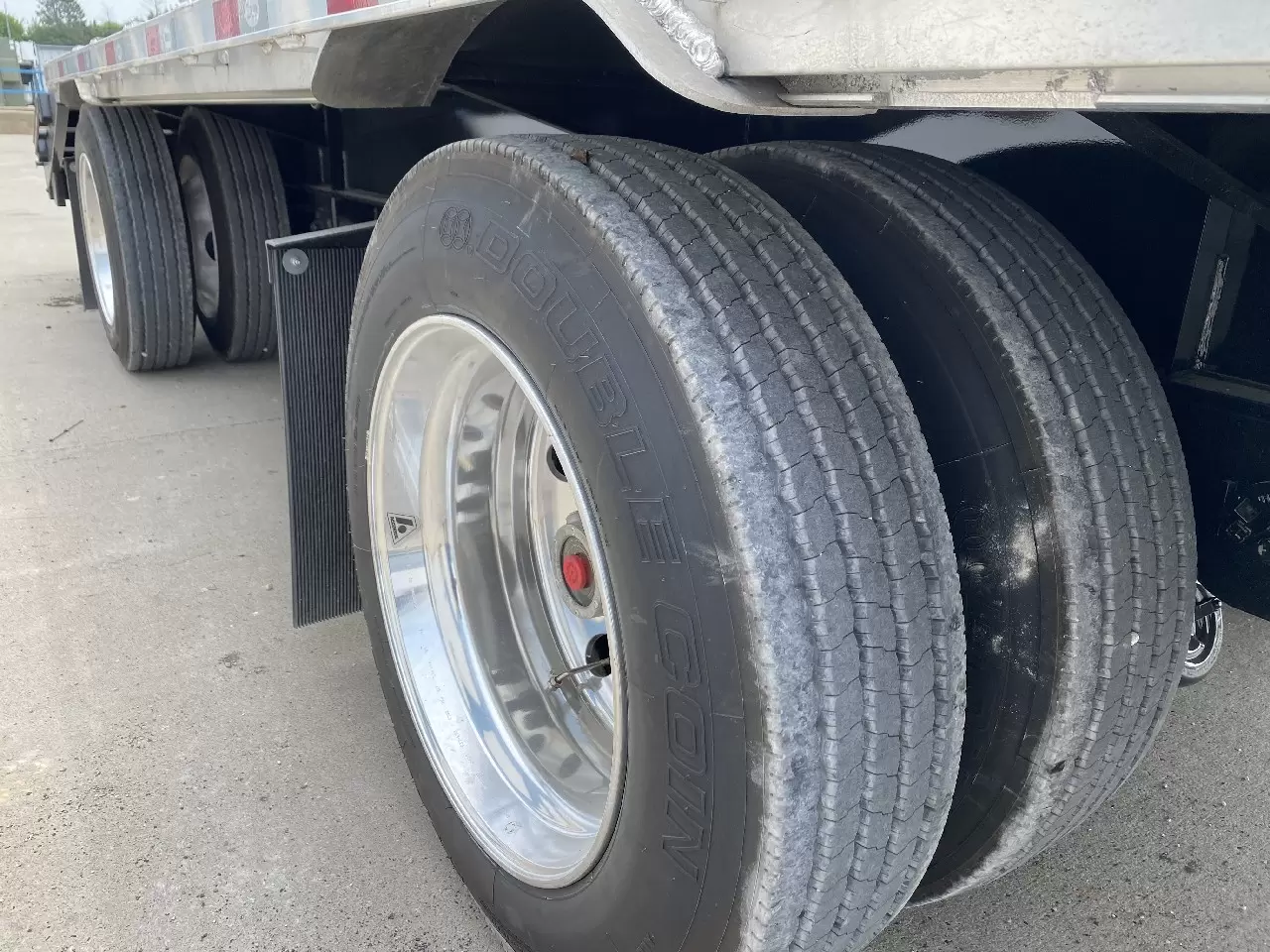

TIRES 255/70R 22.5 - 41" Loaded Deck Height - Double Coin
STAKE POCKETS 24" O.C. & 4 Across Front
ANTI-SAIL MUD FLAPS Behind All Axles
SPOOL Triangular Shaped
RUB BAND STEEL 3/8" x 3" - Aluminum - Recessed for DOT Tape

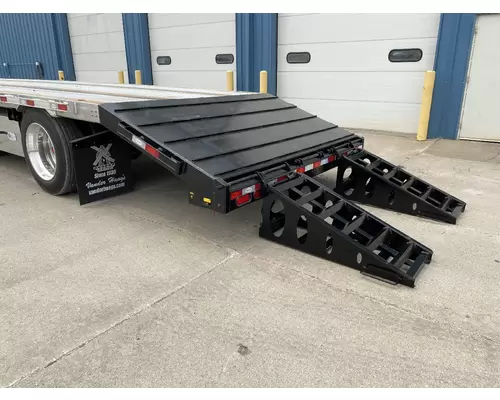

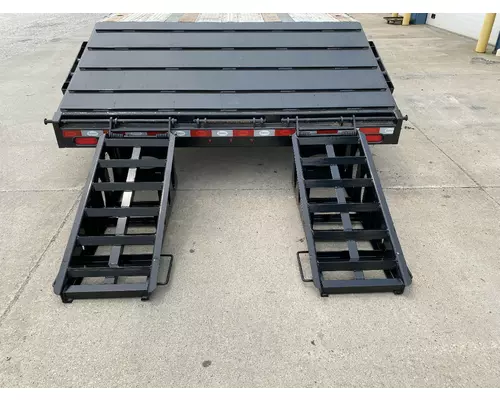

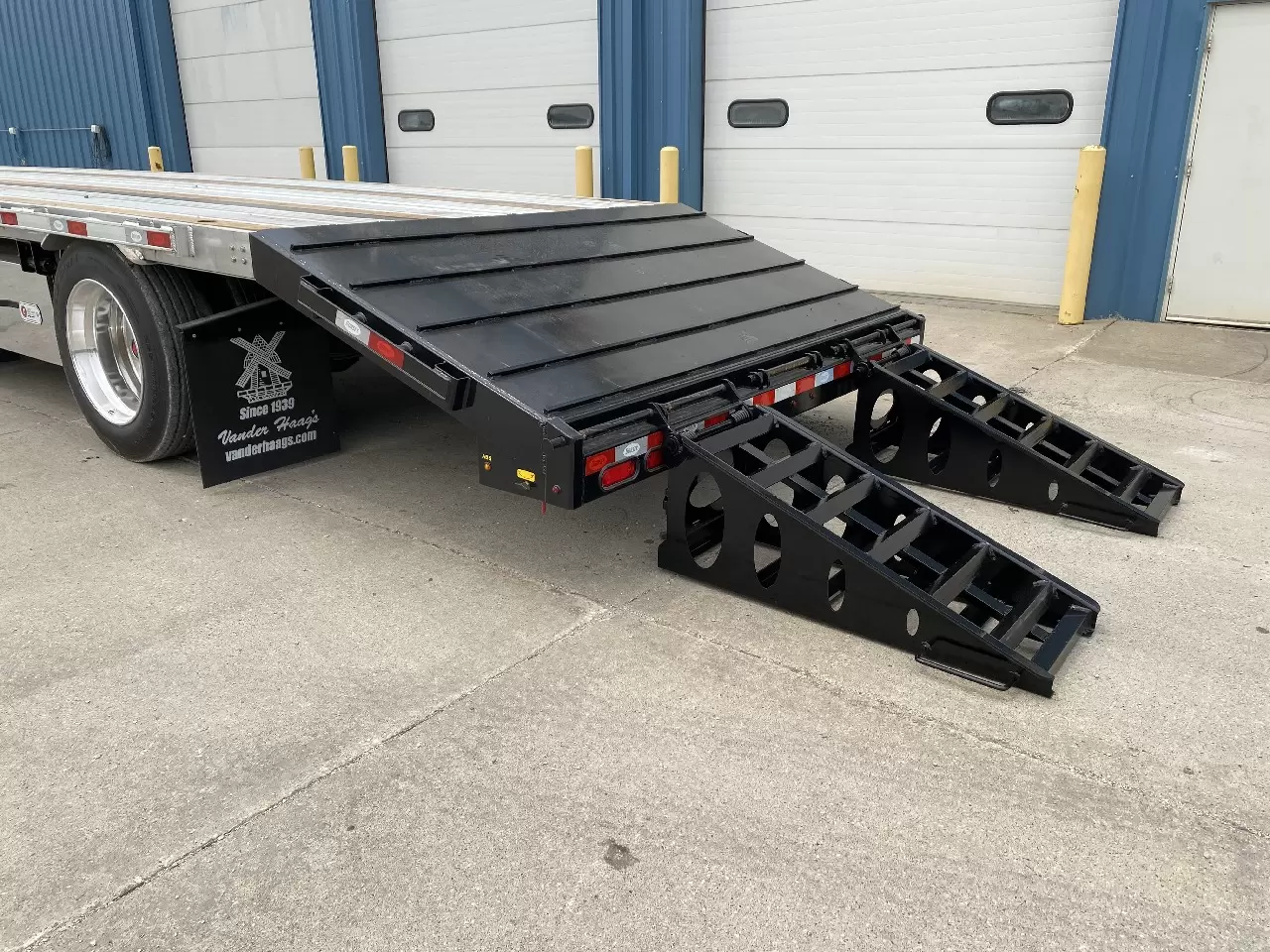

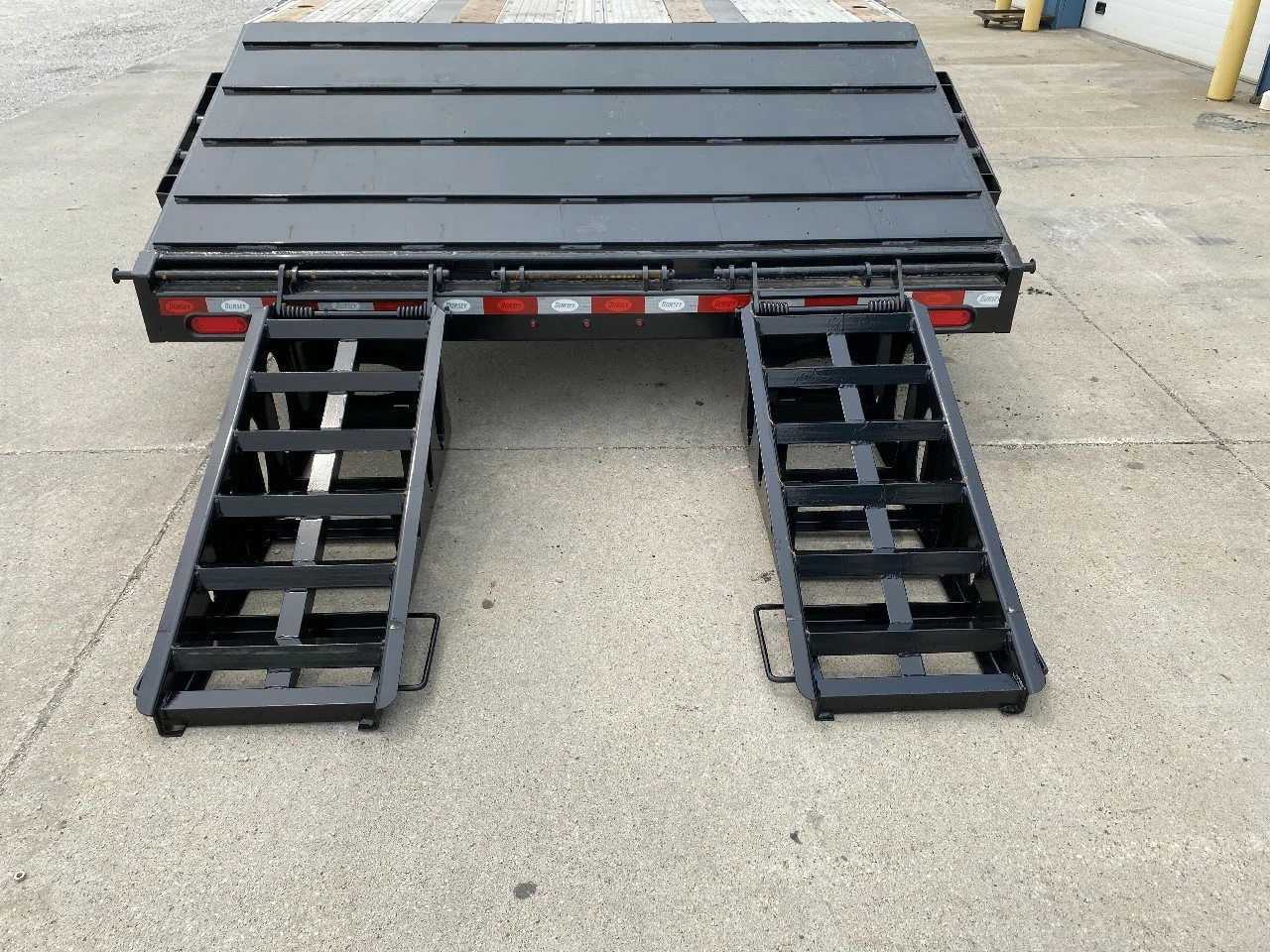

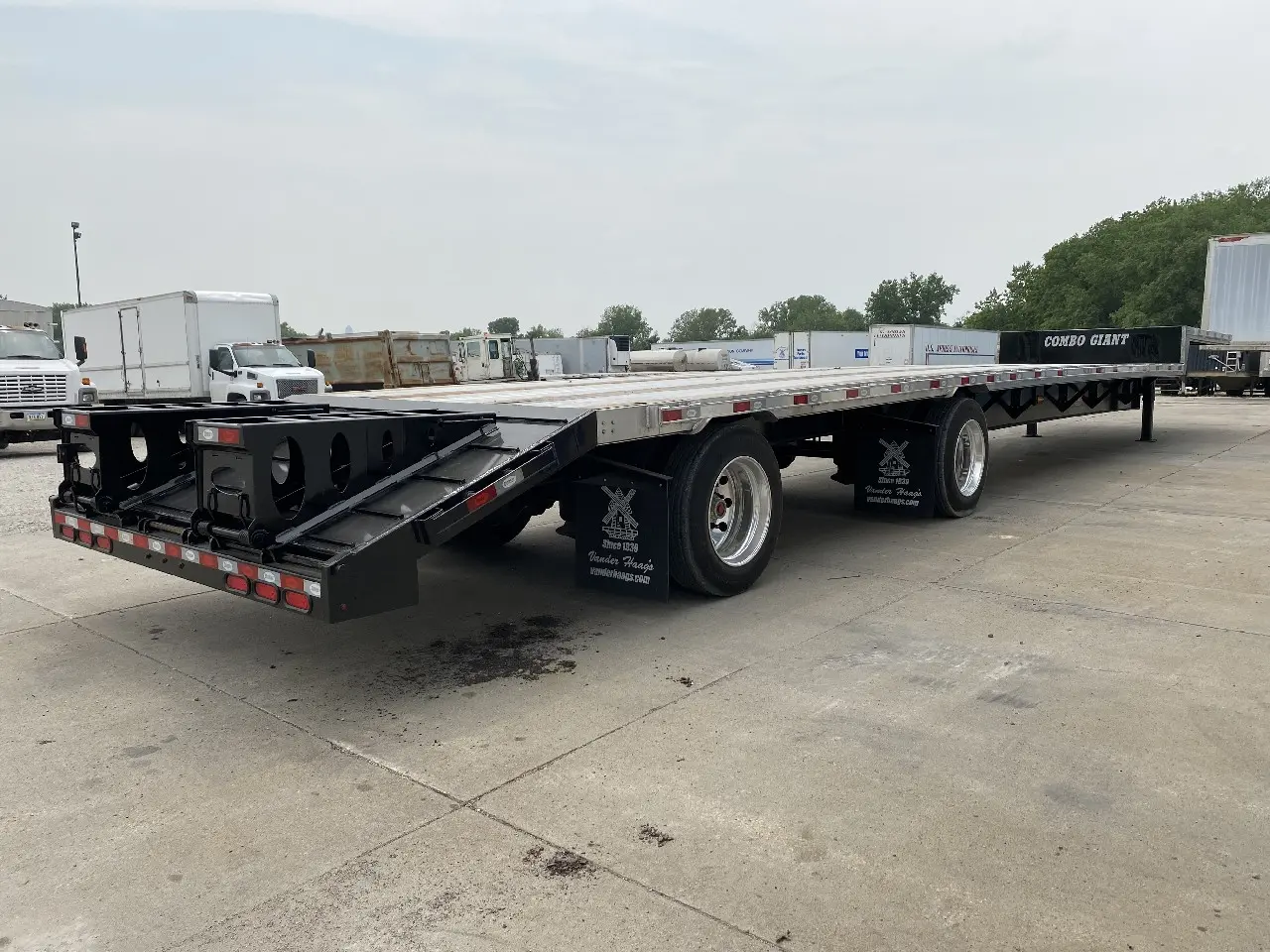

LOADING RAMPS (2)-Spring Assisted

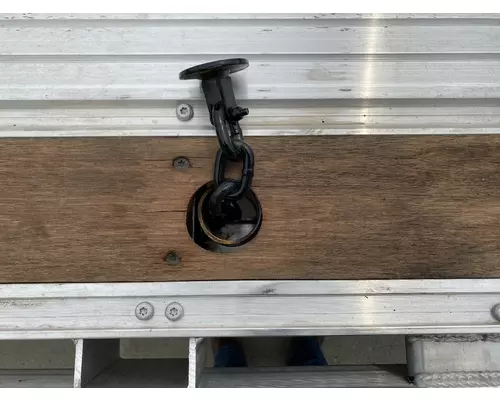

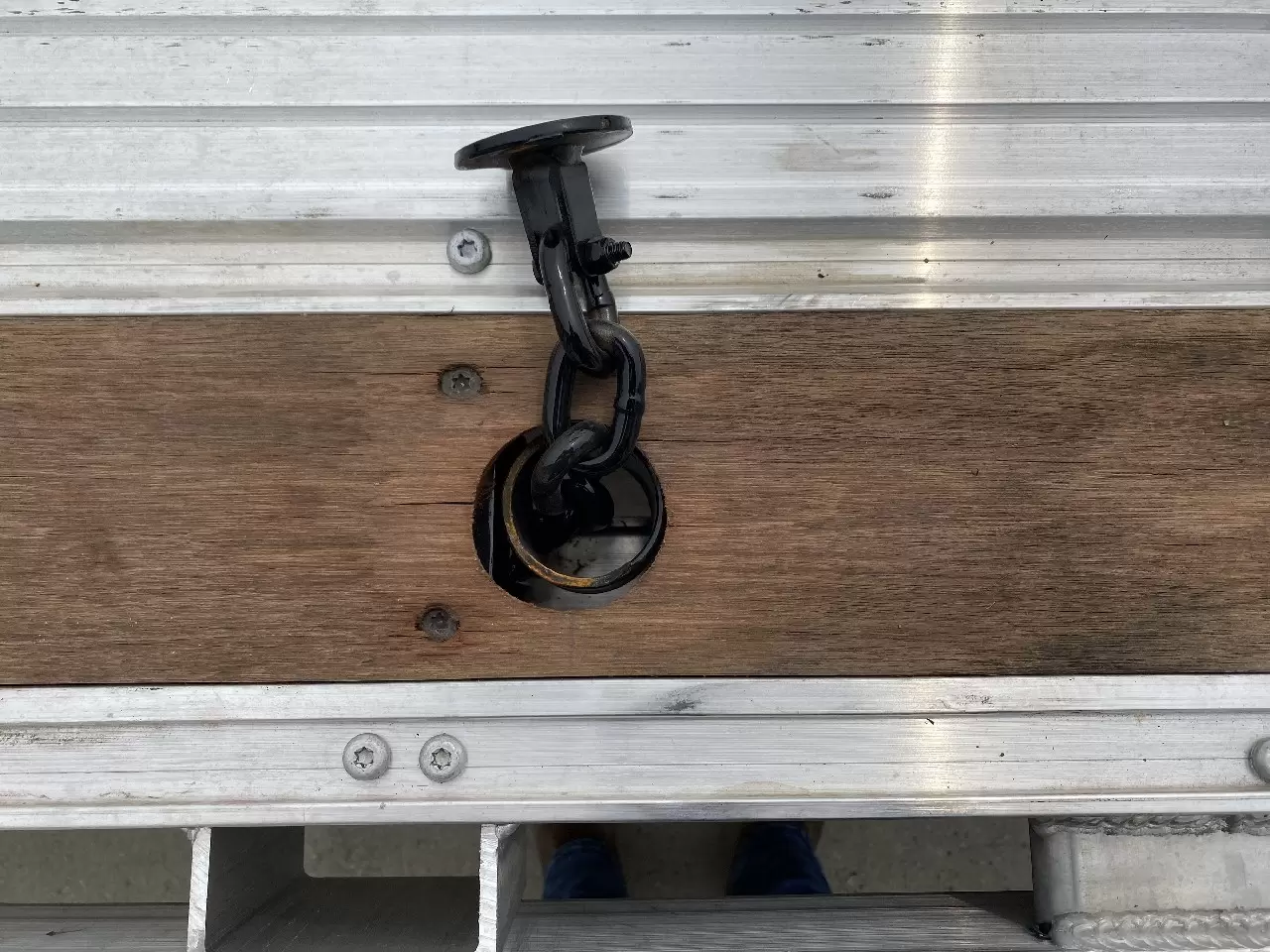

CARGO TIE DOWN Recessed Chain Tie Downs - 14 Pair
TOOLBOX MATERIAL Aluminum

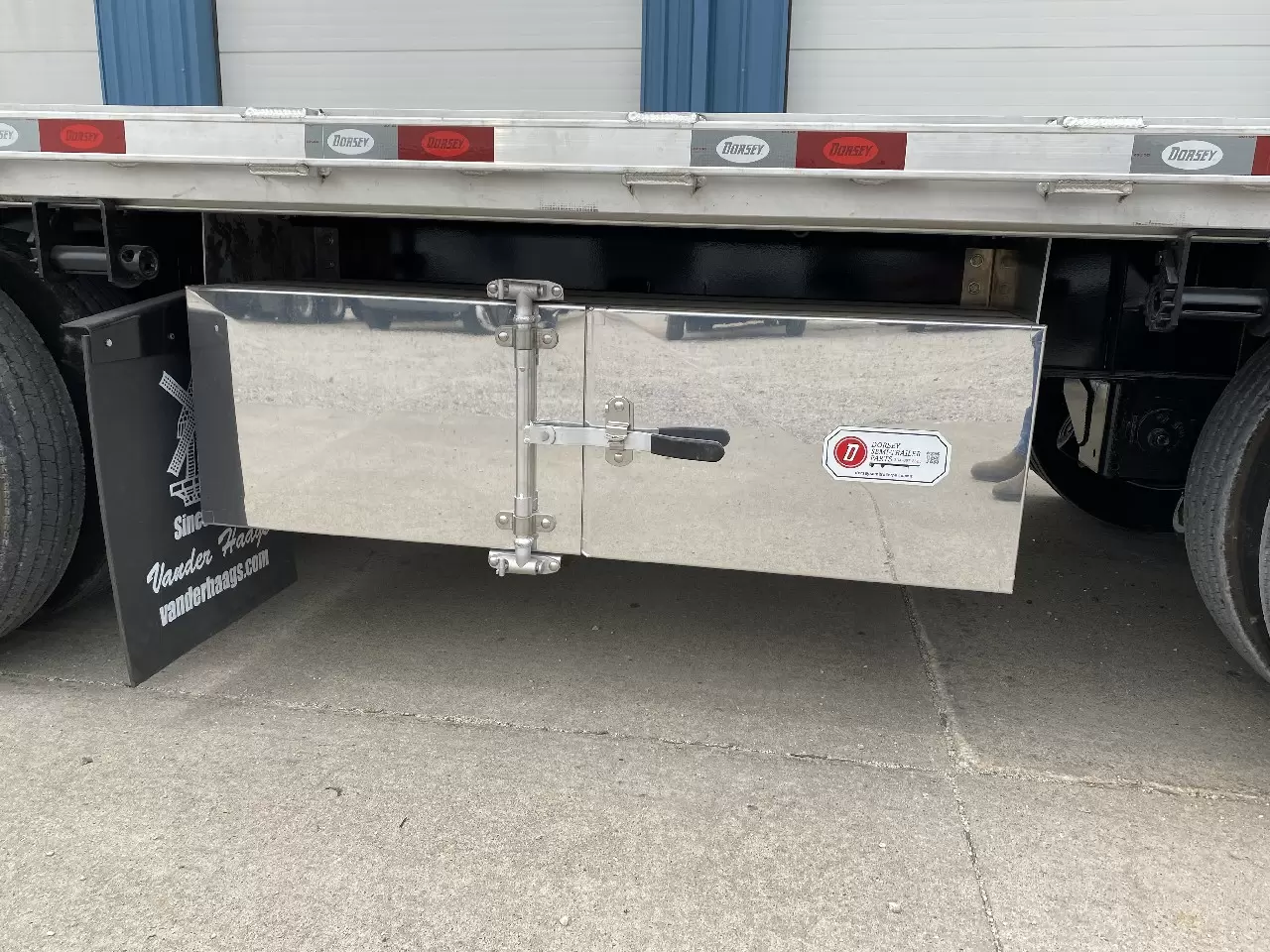

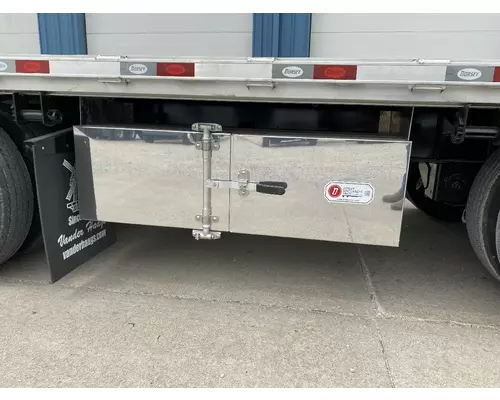

TOOLBOX TYPE 18Hx18Dx60L-Alum Box-Barn Style Double Door-CAM LOCK STYLE
TOOLBOX LOCATION Driver Side- Between Spread
LIGHTS Sealed Wiring Harness
Composition: Combination
Floor Material: Aluminum
Winch Qty: 12
Coil Package

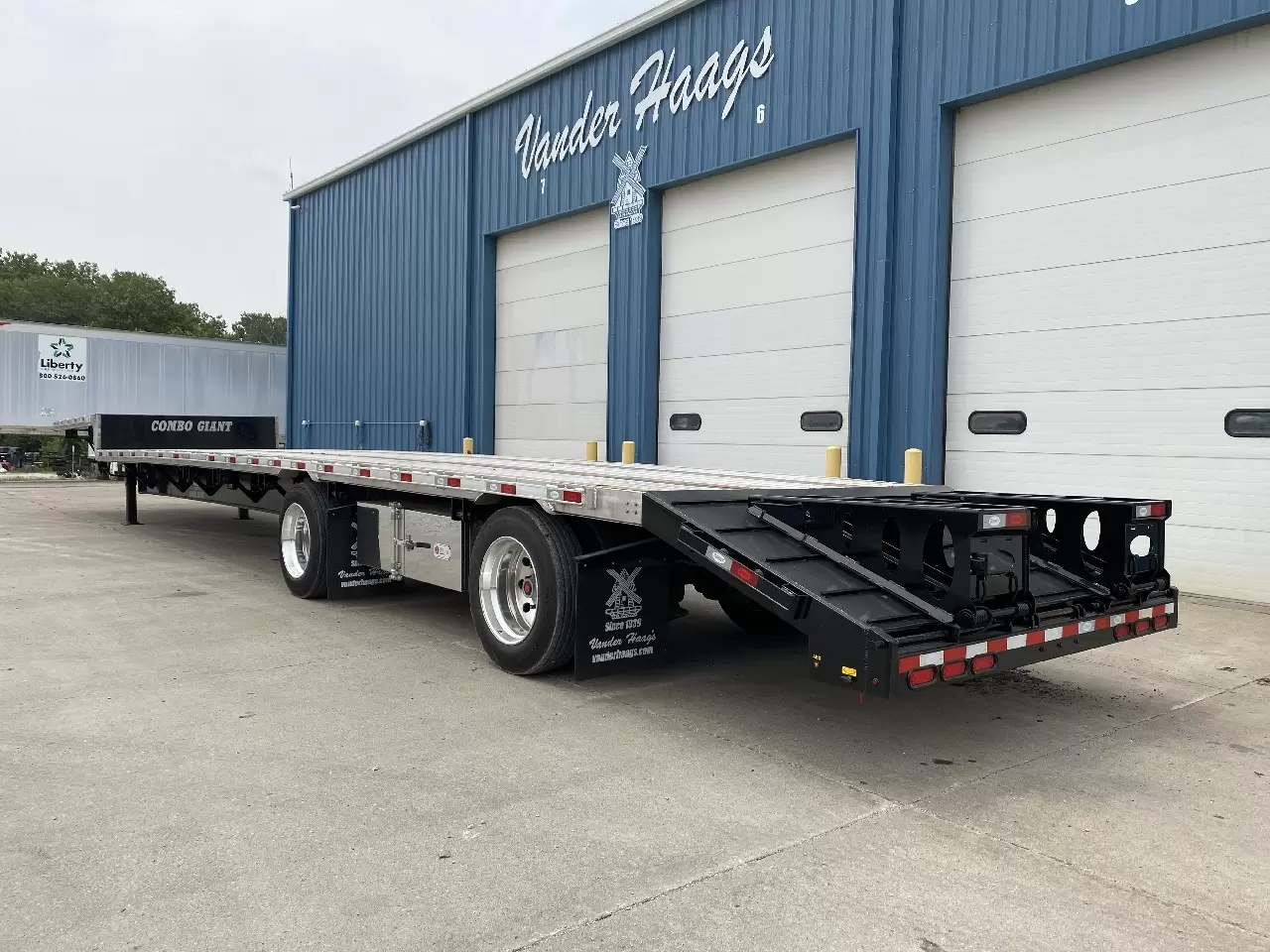

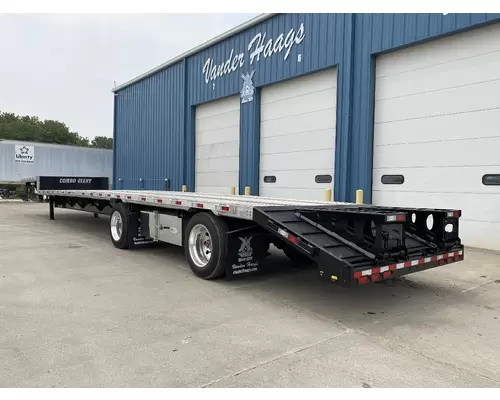

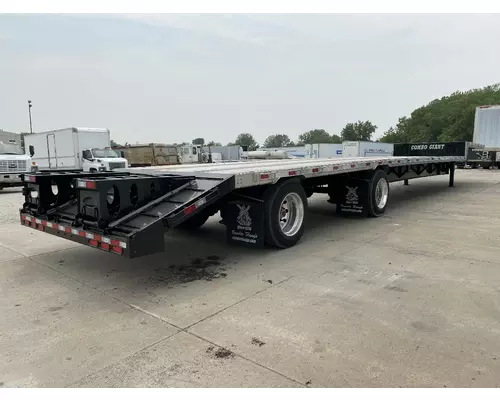

Beavertail
Ramps
Tool Boxes
