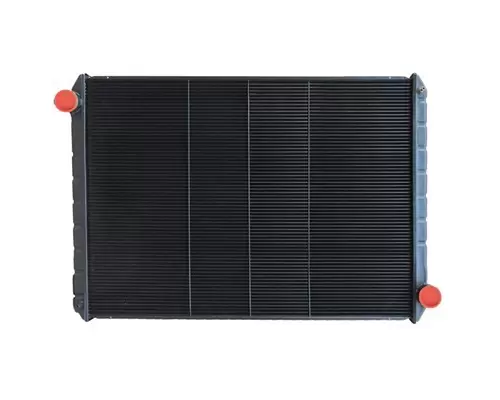

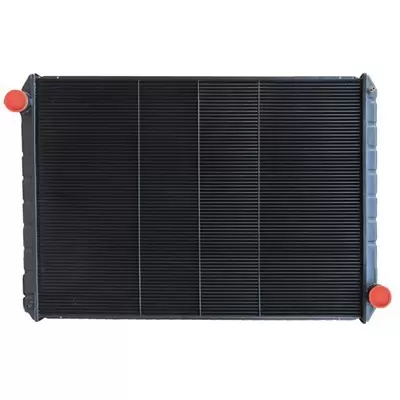

FORD L9000 RADIATOR ASSEMBLY
$541.28
| Tag #: KEY HDC010027DT | ENGINE: NA |
| OEM #: E8HZ8005N, E8HZ8005R, E8HZ8005 | MATERIAL: COPPER/BRASS |
| ROW CNT: NA | |
| CORE SIZE: 37 3/8H X 28 7/16W X 2 1/4D |
NEW: NEW Design Style Copper Brass Dimpled Tubes
Height 37 3/8 Inches
Width 28 7/16 Inches
Depth 2 1/4 Inches

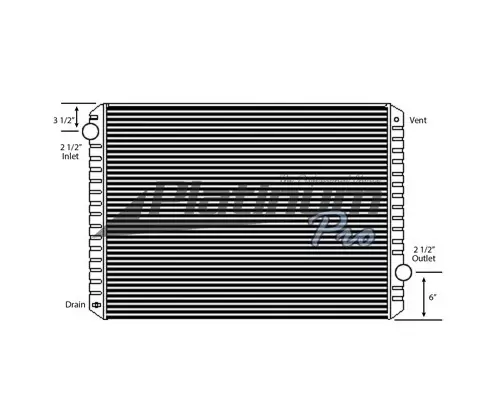

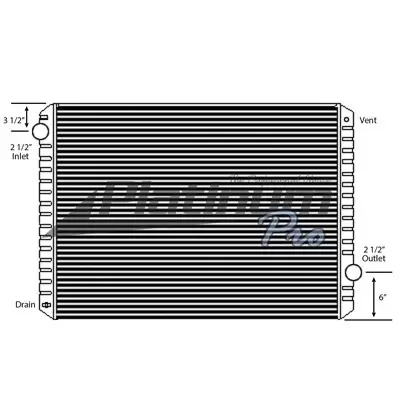

Inlet 2 1/2 Inch Connection 3 1/2 Inches From Top
Outlet 2 1/2 Inch Connection 6 Inches From Bottom
Engine Oil Cooler No
Trans Oil Cooler No
Make Ford
Model A9500 L9000
Start Year 1990
End Year 1993
Notes For High Efficiency Core Use HDC010034SK
Reference E8HZ8005N, E8HZ8005R, E8HZ8005Z, E9HZ8005R, E9HZ8005Z, F0HT8009AB, F1HT8009ACA, F1HT8009GB, F1HT8009UC, F1HT8009YA, F1HZ8005G, F1HZ8005J, F2HT8009A, F2HT8009EB, F2HT8009FA, F2HT8009FB, F2HT8009FE, F2HZ8005G, F3HT8009JA, F3HT8009NA, F3HZ8005AA, E9HZ8005B, F1HZ8005B, 0437148S, 2001-1501, 239417, 437107S, 8096, 9000-01AST, 9007-07AST, CTVTM-8096-3, CTVTU-8096-3, FOR07, FOR1A, FOR1-A, S9001, S9007, CTVTM80963, CTVTU80963, SRK7107, FLX000109, 11C7552ST, 900001, 900001AST, 20011501, 5637LD3R, 239318, 437148, 437148S, 437107, 437107P, 0437107P, 611RA901A
Height 37 3/8 Inches
Width 28 7/16 Inches
Depth 2 1/4 Inches
Inlet 2 1/2 Inch Connection 3 1/2 Inches From Top
Outlet 2 1/2 Inch Connection 6 Inches From Bottom
Engine Oil Cooler No
Trans Oil Cooler No
Make Ford
Model A9500 L9000
Start Year 1990
End Year 1993
Notes For High Efficiency Core Use HDC010034SK
Reference E8HZ8005N, E8HZ8005R, E8HZ8005Z, E9HZ8005R, E9HZ8005Z, F0HT8009AB, F1HT8009ACA, F1HT8009GB, F1HT8009UC, F1HT8009YA, F1HZ8005G, F1HZ8005J, F2HT8009A, F2HT8009EB, F2HT8009FA, F2HT8009FB, F2HT8009FE, F2HZ8005G, F3HT8009JA, F3HT8009NA, F3HZ8005AA, E9HZ8005B, F1HZ8005B, 0437148S, 2001-1501, 239417, 437107S, 8096, 9000-01AST, 9007-07AST, CTVTM-8096-3, CTVTU-8096-3, FOR07, FOR1A, FOR1-A, S9001, S9007, CTVTM80963, CTVTU80963, SRK7107, FLX000109, 11C7552ST, 900001, 900001AST, 20011501, 5637LD3R, 239318, 437148, 437148S, 437107, 437107P, 0437107P, 611RA901A
| ENGINE | NA |
| CORE SIZE | 37 3/8H X 28 7/16W X 2 1/4D |
| MATERIAL | COPPER/BRASS |
| ROW CNT | NA |
| Part Title | 1990-1993 Ford-Sterling A9500 L9000 Copper Brass Dimpled Tubes Radiator |
| Part Segment | AFM |
| Part Product Group | COOLING |
