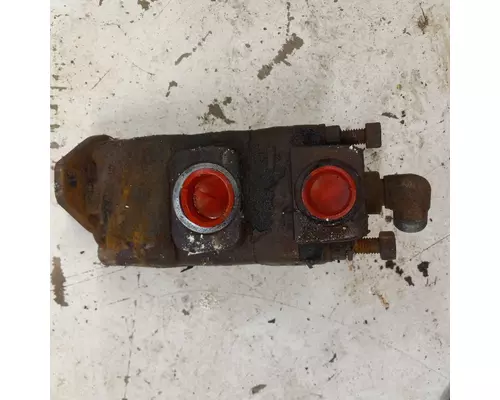

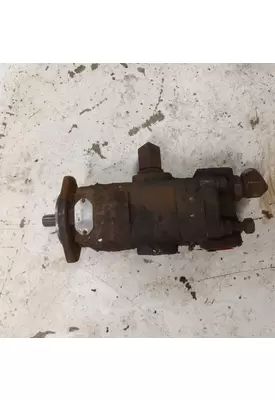

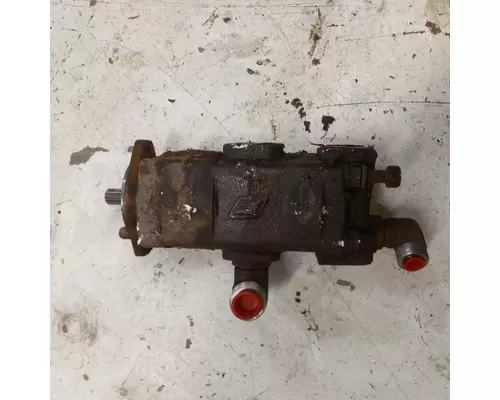

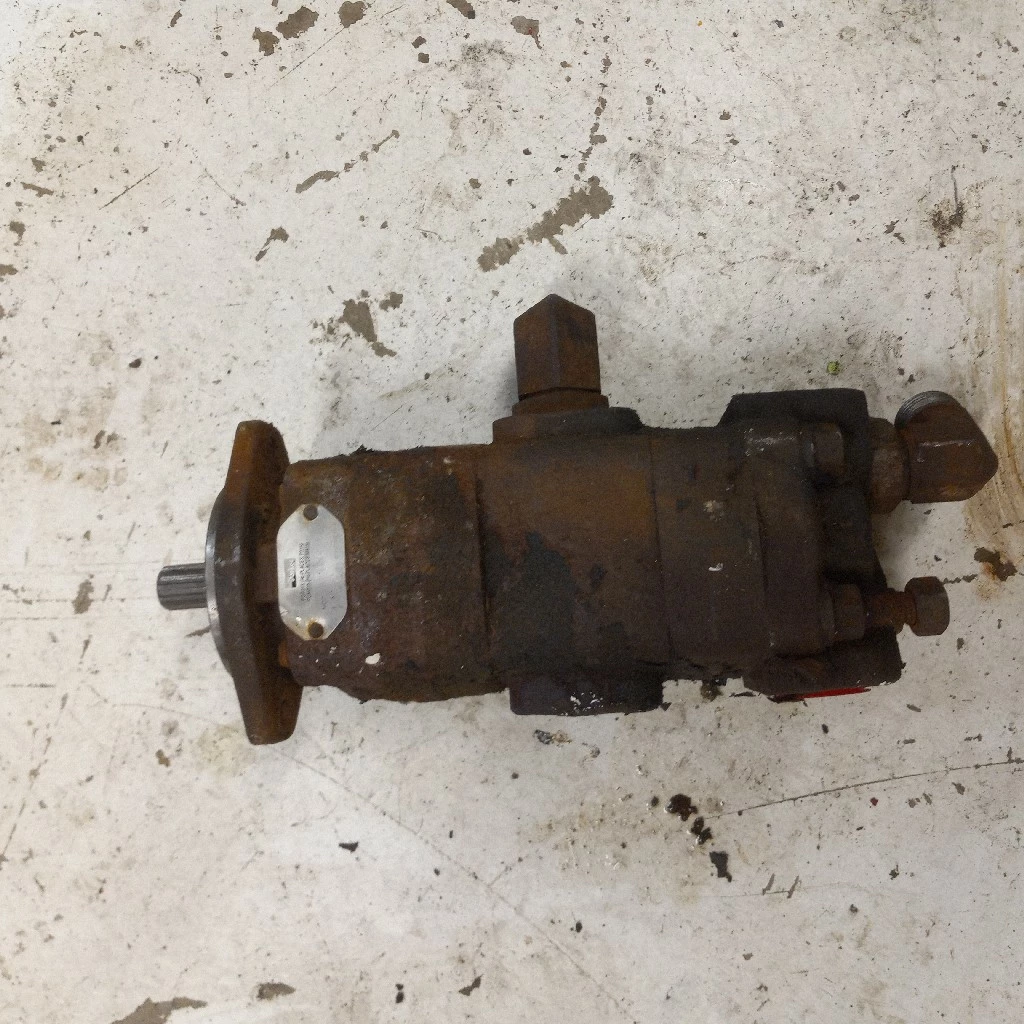

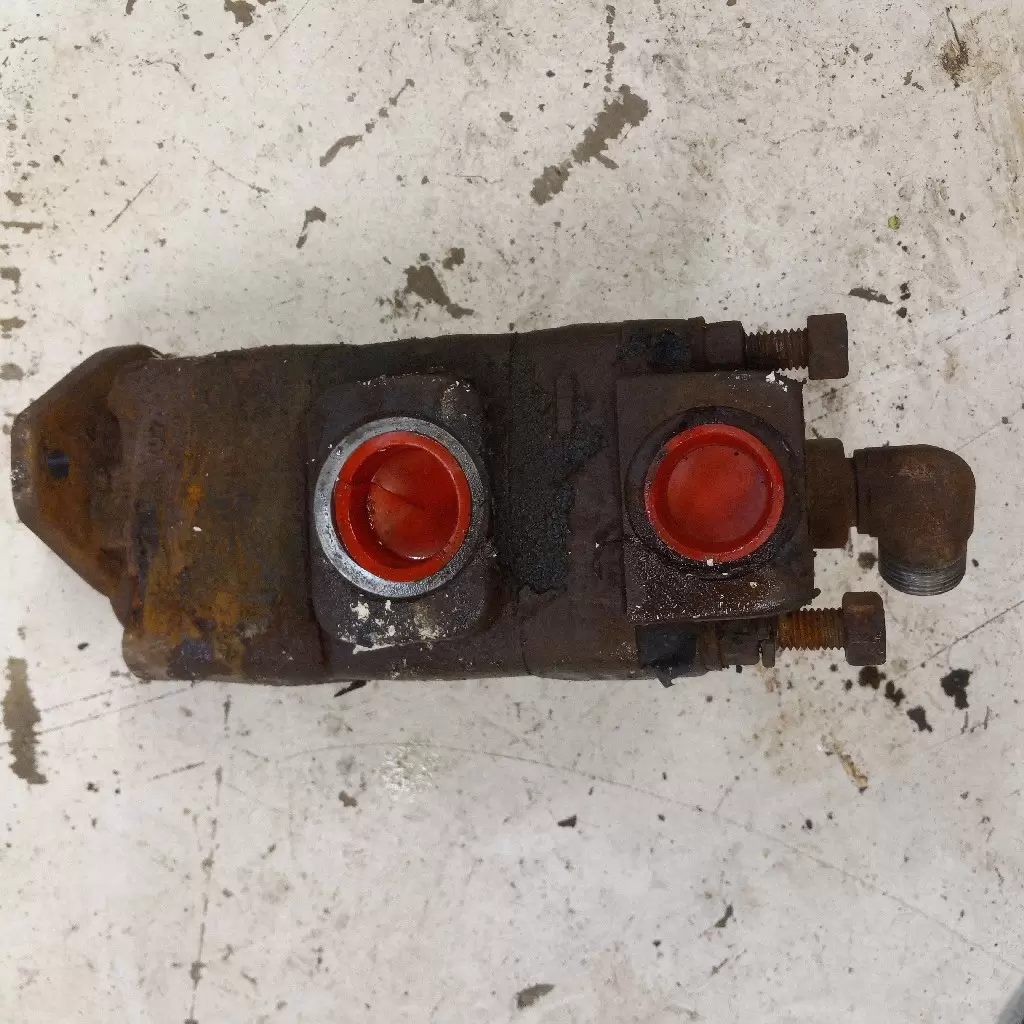

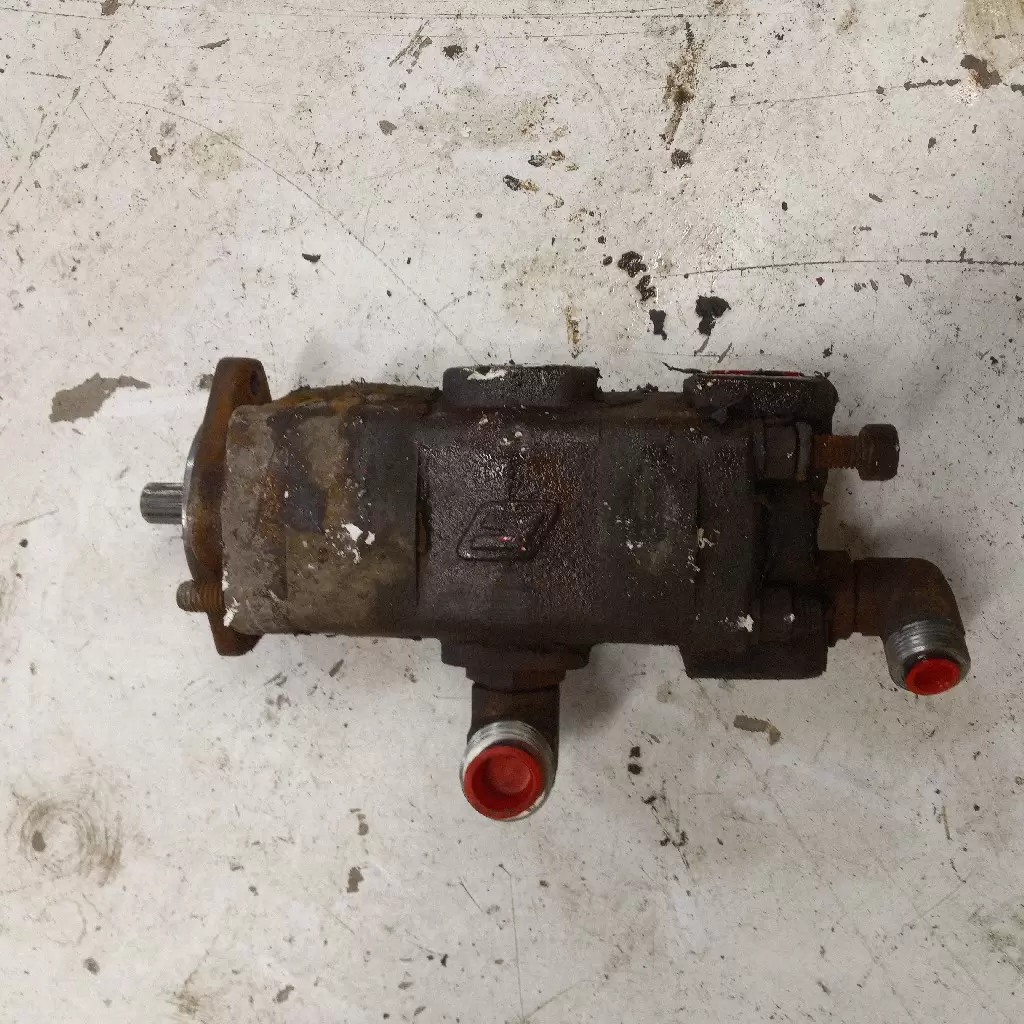

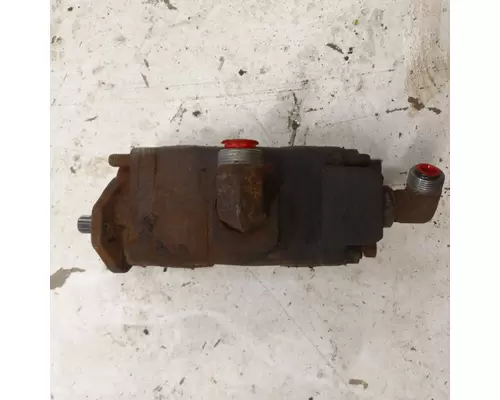

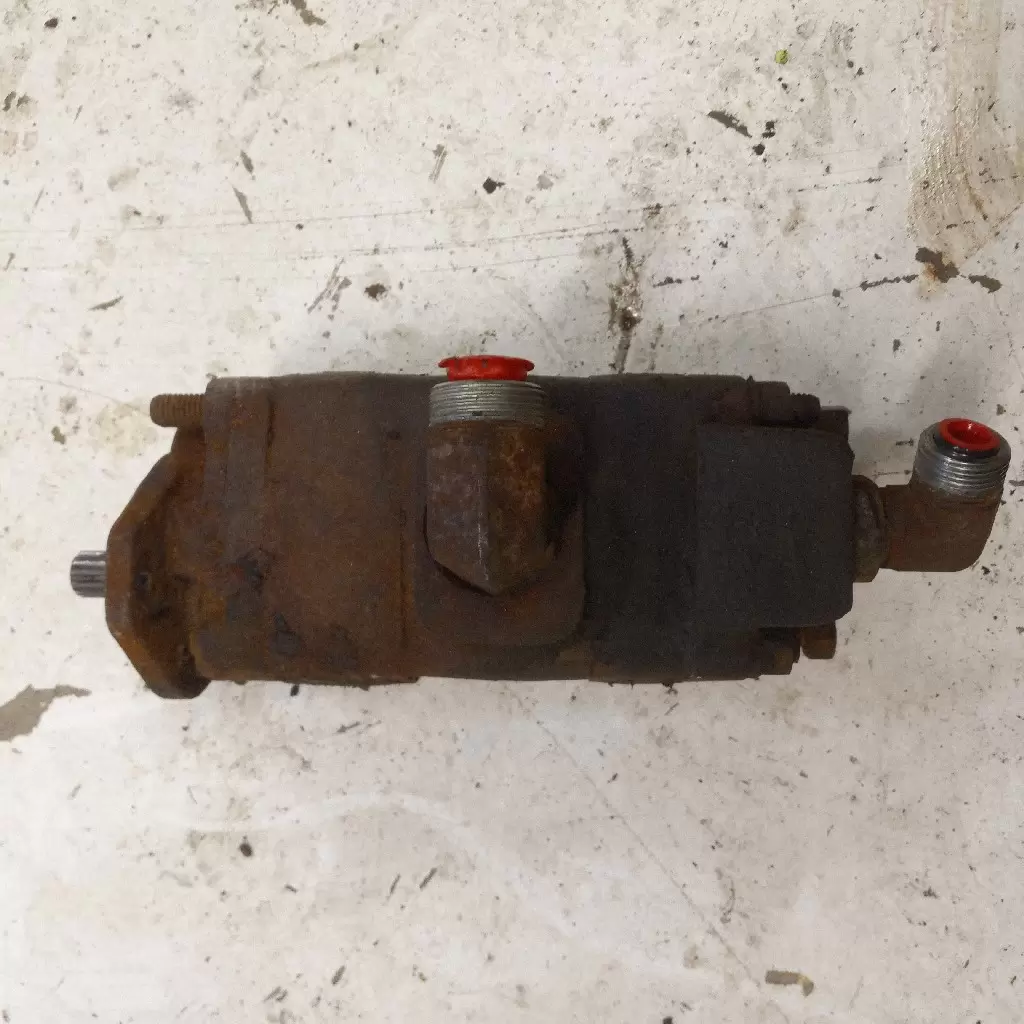

Caterpillar 3116 Power Steering Pump
$150.00
| Tag #: 34P-69120138-STK | Engine Code: 3126E |
| OEM #: 3269120138 | Website Title: 3269120138 Power Steering Pump Caterpillar 3116 |
Steering Column & Pumps: Steering Column & Pumps Quality used Parker Hankin ISB power steering pump (PGP315L/Von 74), backed by our standard warranty.
Disp.
Front 1.86 cu. in. / rev.
Rear 1.254cu. in. / rev.
Pump Type Gear
Rotation CCW
Pressure 2500 PSI max.
Speed 2400 RPM max.
Flow at 2000 RPM
Front 16.1GPM
Rear 10.7 GPM
Mount SAE A 2 Bolt
Shaft 3/4" 11 tooth splined shaft.
Front Section Ports
Inlet SAE 20 side
Outlet SAE 16 side
Rear Section Ports
Inet SAE 16 side
Outlet SAE 12 rear

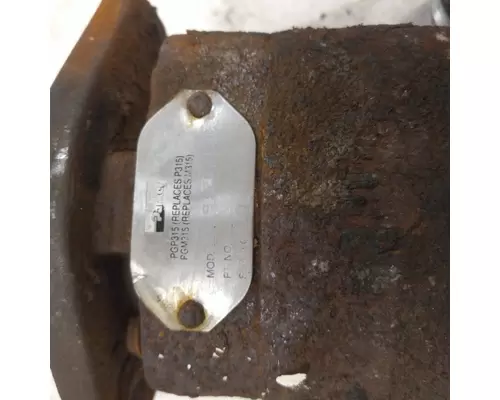

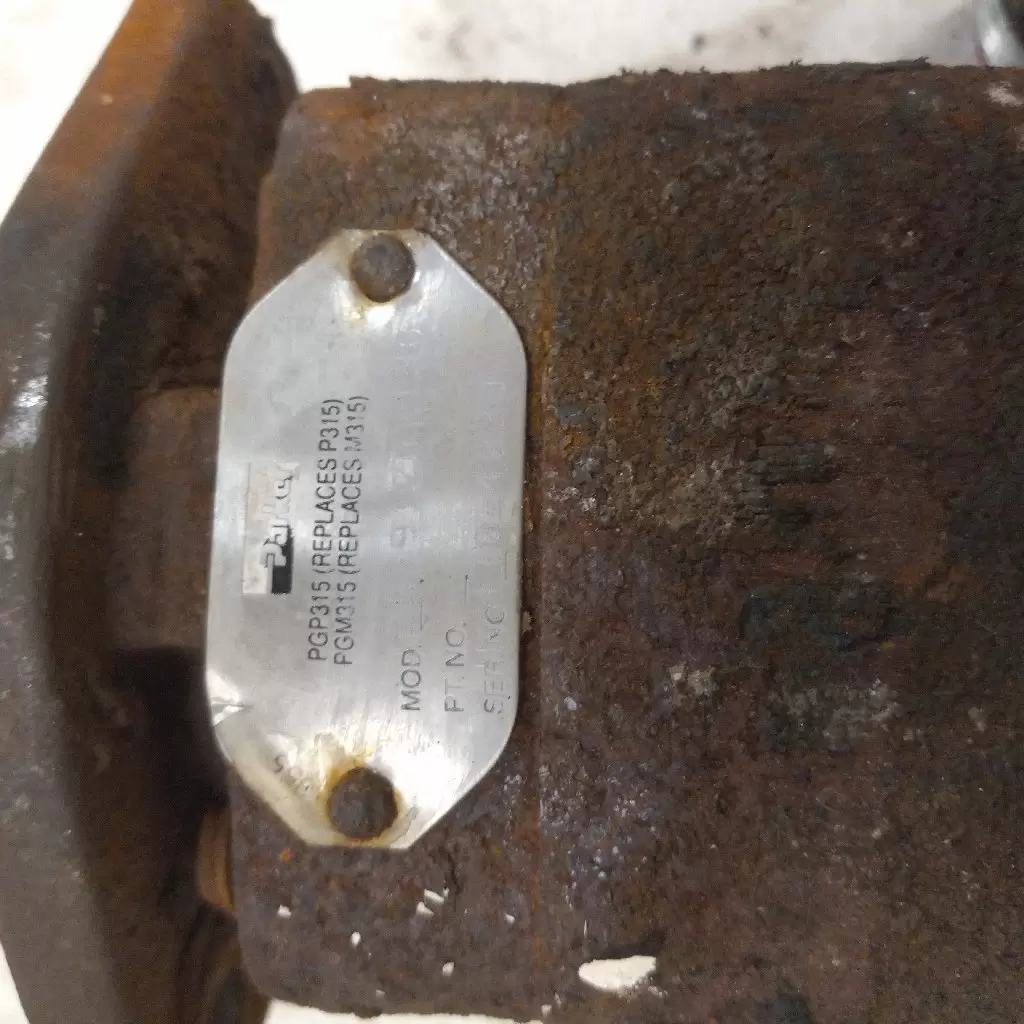

OEM # 326-9120-138, 3269120138, 326 9120 138, TBB159878, TBB 159878, PGP315 replaces P315, PGM315 replaces M315, MK701612
PH3269120138, 015-005-009
Please Note: The part sent may not exactly match the one pictured. Appearance may vary. For specific part requests, please call 888-315-2575. Additional core charge may apply.
34P-69120138-STK
Visit us at QualityBusAndTruckParts.com
Disp.
Front 1.86 cu. in. / rev.
Rear 1.254cu. in. / rev.
Pump Type Gear
Rotation CCW
Pressure 2500 PSI max.
Speed 2400 RPM max.
Flow at 2000 RPM
Front 16.1GPM
Rear 10.7 GPM
Mount SAE A 2 Bolt
Shaft 3/4" 11 tooth splined shaft.
Front Section Ports
Inlet SAE 20 side
Outlet SAE 16 side
Rear Section Ports
Inet SAE 16 side
Outlet SAE 12 rear
OEM # 326-9120-138, 3269120138, 326 9120 138, TBB159878, TBB 159878, PGP315 replaces P315, PGM315 replaces M315, MK701612
PH3269120138, 015-005-009
Please Note: The part sent may not exactly match the one pictured. Appearance may vary. For specific part requests, please call 888-315-2575. Additional core charge may apply.
34P-69120138-STK
Visit us at QualityBusAndTruckParts.com
| Engine Code | 3126E |
| Website Title | 3269120138 Power Steering Pump Caterpillar 3116 |
Vendor must be contacted to purchase part.
