FORD F700 RADIATOR ASSEMBLY
$629.86
| Tag #: KEY HDC010084 | MATERIAL: COPPER/BRASS |
| OEM #: 1A16282, 1A16285, 1A16852, F0H | CORE SIZE: 26 3/4H X 28 1/2W X 2 1/4D |
| Shipping Length: 36.75 | |
| Shipping Width: 32.00 |
NEW: Design Copper / Brass
Height 26 3/4
Width 28 1/2
Depth 2 1/4

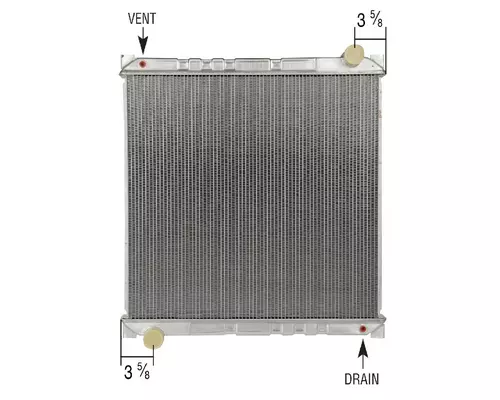

Inlet 2 inch connection - (upper right - 3 1/2 inches from edge)
Outlet 2 inch connection - (lower left - 3 1/2 inches from edge)
Engine Oil Cooler No
Trans Oil Cooler No
Make Ford
Model F700 F800
Start Year 1990
End Year 1993
Notes No
Reference 1A16282, 1A16285, 1A16852, F0HT8005D, F0HT8005FB, F0HT8005LA, F0HT8005LB, F0HT8005NA, F2HZ8005D, F3HT8005BB, F3HZ8005JB, F5HT8005CB, F1HT8005EA, F2HT8005CB, F5HT8005JA, 0437100S, 2002-1501, 239402, 5600-01ST, FOR61, S5601, 437100S, 0437100P, 437100P, 20021501, 5600-01, 560001ST, 5600-01BT, 560001BT, FOR-61, FB91, FLX000102
Height 26 3/4
Width 28 1/2
Depth 2 1/4

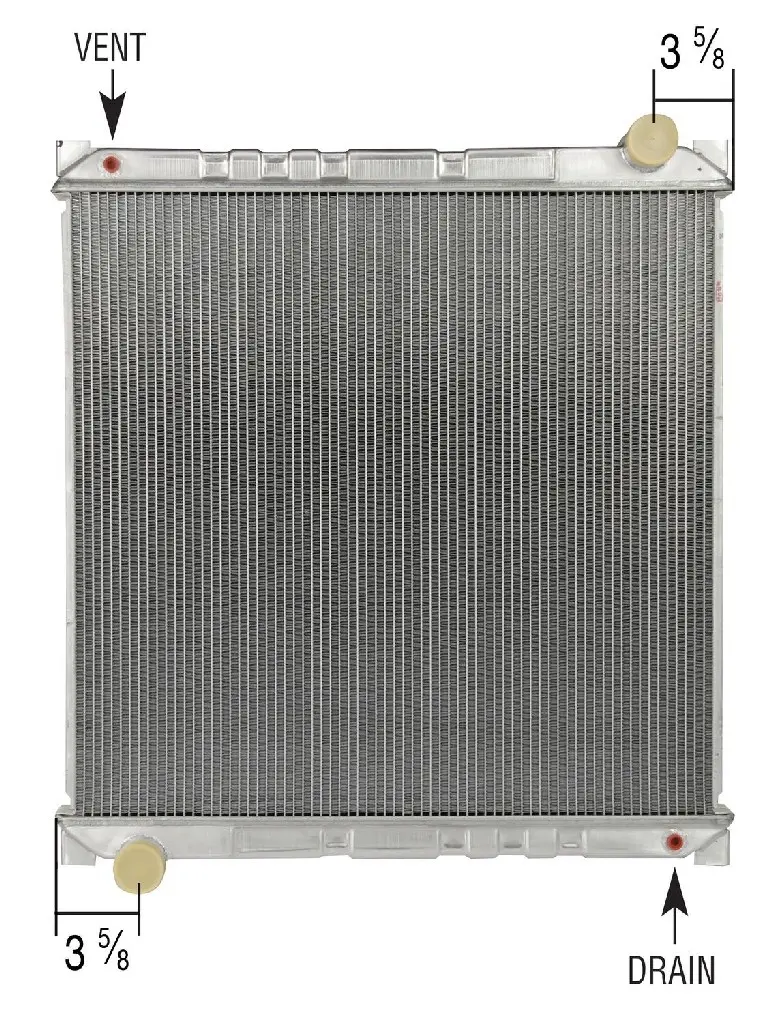

Inlet 2 inch connection - (upper right - 3 1/2 inches from edge)
Outlet 2 inch connection - (lower left - 3 1/2 inches from edge)
Engine Oil Cooler No
Trans Oil Cooler No
Make Ford
Model F700 F800
Start Year 1990
End Year 1993
Notes No
Reference 1A16282, 1A16285, 1A16852, F0HT8005D, F0HT8005FB, F0HT8005LA, F0HT8005LB, F0HT8005NA, F2HZ8005D, F3HT8005BB, F3HZ8005JB, F5HT8005CB, F1HT8005EA, F2HT8005CB, F5HT8005JA, 0437100S, 2002-1501, 239402, 5600-01ST, FOR61, S5601, 437100S, 0437100P, 437100P, 20021501, 5600-01, 560001ST, 5600-01BT, 560001BT, FOR-61, FB91, FLX000102
| CORE SIZE | 26 3/4H X 28 1/2W X 2 1/4D |
| MATERIAL | COPPER/BRASS |
| Shipping Length | 36.75 |
| Shipping Width | 32.00 |
| Shipping Depth | 7.50 |
| Shipping CuFt | 5.10 |
