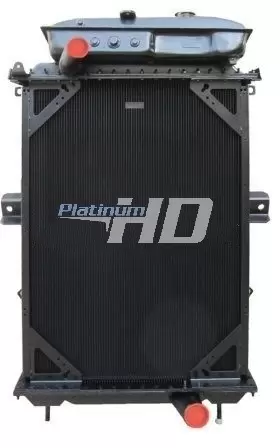

KENWORTH T600 RADIATOR ASSEMBLY
$1,595.83
| Tag #: KEY HDC010626SLHDT | ENGINE: NA |
| OEM #: 1A020256, E4313, X4048, X40480 | MATERIAL: COPPER/BRASS |
| ROW CNT: 4 ROW | |

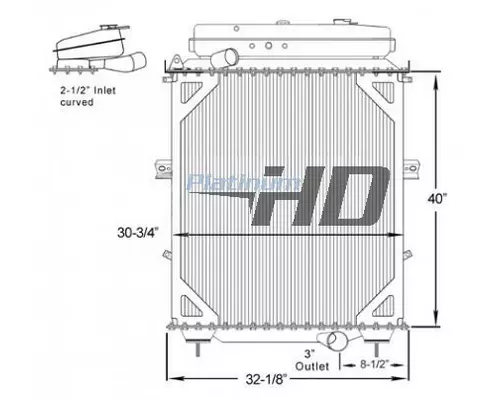

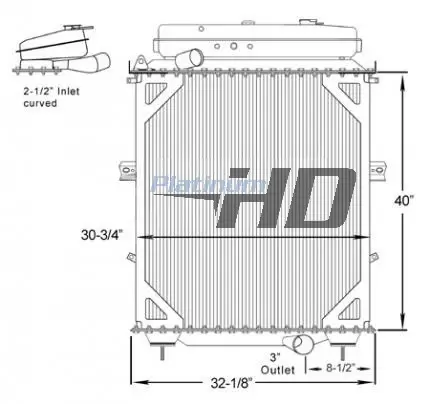

| CORE SIZE: 40H X 28W X 2-1/2D |
NEW: NEW 1995-2006 Kenworth T600/T800 Copper/Brass Radiator With Frame; 4 Row High Efficiency Dimpled Tube Core
Part HDC010626SLHDT
Design Style Copper/Brass
Height 40
Width 28
Depth 2-1/2
Inlet 2 1/2 Inch Connection
Outlet 3 Inch Connection
Engine Oil Cooler No
Trans Oil Cooler No
Make Kenworth
Model T600-T800
Start Year 1994
End Year 2006
Notes Top Tank - 2 1/2 Inch Connection Upper Left, 8 inches - Curved
Reference HDC010626DT, 1A020256, E4313, X4048, X404802, X510102, X51012, X560108, X560110, X56018, X561010, X520101, X52011, 2101-2503, 21012503, 437362, 6213, CVTU-6213-4, KEN06, T600-4, T8004, T800-4, 5562135, 5562134, 5562133, SRM6213, 6500-27BT, 650027BT, 650027, T600-4, CVTU62134, FLX000315, 6213-4SLHDT
Part HDC010626SLHDT
Design Style Copper/Brass
Height 40
Width 28
Depth 2-1/2
Inlet 2 1/2 Inch Connection
Outlet 3 Inch Connection
Engine Oil Cooler No
Trans Oil Cooler No
Make Kenworth
Model T600-T800
Start Year 1994
End Year 2006
Notes Top Tank - 2 1/2 Inch Connection Upper Left, 8 inches - Curved
Reference HDC010626DT, 1A020256, E4313, X4048, X404802, X510102, X51012, X560108, X560110, X56018, X561010, X520101, X52011, 2101-2503, 21012503, 437362, 6213, CVTU-6213-4, KEN06, T600-4, T8004, T800-4, 5562135, 5562134, 5562133, SRM6213, 6500-27BT, 650027BT, 650027, T600-4, CVTU62134, FLX000315, 6213-4SLHDT
| ENGINE | NA |
| CORE SIZE | 40H X 28W X 2 1/2D |
| MATERIAL | COPPER/BRASS |
| ROW CNT | 4 |
| Part Title | 1994-2006 Kenworth T600-T800 Copper / Brass Radiator |
| Part Segment | AFM |
| Part Product Group | COOLING |
